50Hz 1140V Fuse Protector / Fuse / Low Voltage Fuse Links / NH Series / NH1

Name: 50Hz 1140V Fuse Protector / Fuse / Low Voltage Fuse Links / NH Series / NH1
Brand: YOMIN
SKU: NH series
Rating: 4.6 (158 reviews)

50Hz 1140V Fuse Protector / Fuse / Low Voltage Fuse Links / NH Series / NH1 supplier

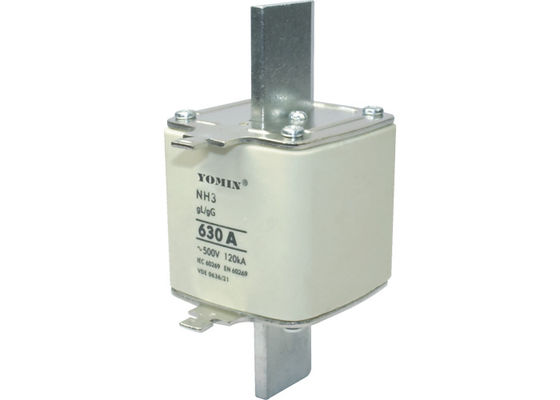

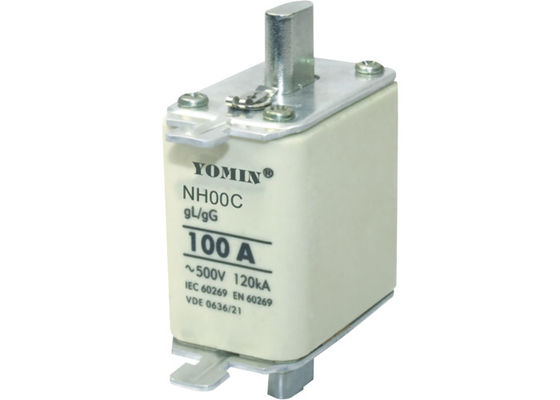

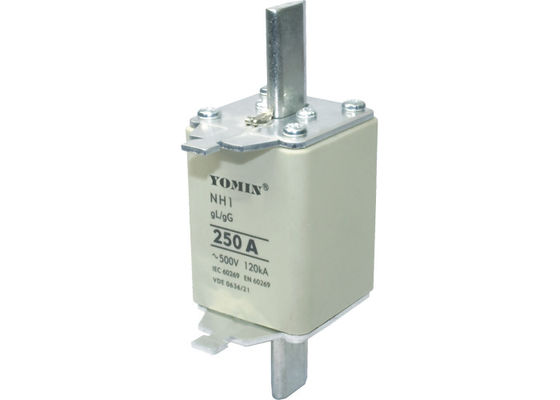

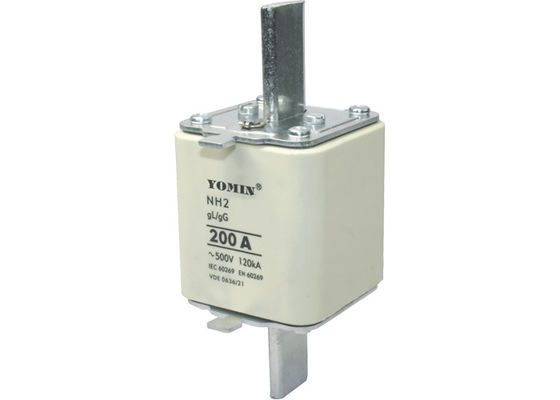

Large Image : 50Hz 1140V Fuse Protector / Fuse / Low Voltage Fuse Links / NH Series / NH1

Product Details:

Place of Origin:	Zhejiang , China ( Mainland )
Brand Name:	YOMIN
Certification:	CE / RoHS
Model Number:	NH series

Payment & Shipping Terms:

Minimum Order Quantity:	10 Piece
Price:	Negotiation
Packaging Details:	Export carton , 1 Piece / Carton
Delivery Time:	5 - 20 working days after received your payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	1000 Pieces Per Week

Contact Now

Detailed Product Description

Model Number:	NH Series	Usage::	Low Voltage
Breaking Capacity::	High	Safety Standards::	IEC
Parts-making::	Self-making	ODM,OEM:	Welcome
Metal Material:	Brass And Iron
High Light:	electronic fuse , fuse system

50Hz 1140V Fuse Protector / Fuse / Low Voltage Fuse Links / NH series / NH1

Application:
This series fuse is suitable for AC 50Hz,rated voltage to 1140V,rated current to 1250A.lt is mainly used in the electric installation for protecting ircuit from overload and short circuit(gG/GL);it also may derive for protecting the semiconductor device and others complete set installment from hort-circuit(aR)as well as the electric motor from short-circuit(aM). he rated breaking capability for this series fuse is to 120KA.This series fuse conforms to national standard GB13539 and International electrical committee standard IEC60269.

Specificaton:

No.	Fuse model					Rated voltage	Rated current	Overall dimension										Weight
	This company		Similar products at home and abroad			Rated voltage	Rated current	Overall dimension										Weight
	Common	Fast	Common		Fast			Size	Drawing number	A	B	C	D	G	E	F	H
0101	RT16-00	NGTC-00	NT00	NH00	RS31 3NE80	500/660	4~160	00	1.1	78	52	15	29				56	175
0102	RT16-0	NGTC-0	NT0	NH0	RS31B 3NE41	500/1140	4~160	0	1.1	125	68	15	29				56	252
0103	RT16-1	NGTC-1	NT1	RT20-1 3NA1	RS32 3NE12	500/660	63~250	1	1.2	135	72	20	48				61	455
0104	RT16-2	NGTC-2	NT2	RT20-2 3NA1	RS33 3NE13	500/660	80~400	2	1.2	150	72	26	58.5				71	580
0105	RT16-3	NGTC-3	NT3	RT20-3 RO34	RS34 3NE14	500/660	160~630	3	1.2	150	72	31	67				84	880
0106	RT17		NT4	RO39	Rs39	500/660	500~1250	4	1.3	200	90	50	97	8	150	16.5	113	2470
