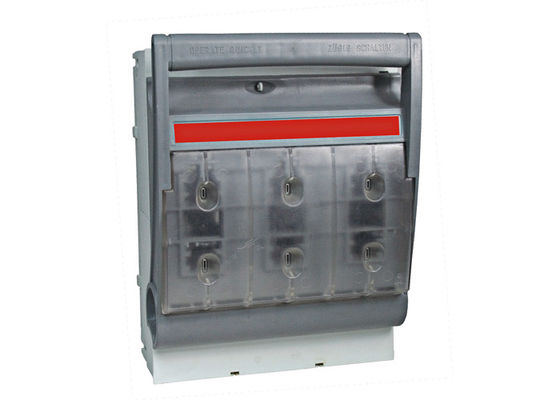

660V 1600A 3- and 4-pole HR18 Fused Switch Disconnect For DIN Fuse Links

Name: 660V 1600A 3- and 4-pole HR18 Fused Switch Disconnect For DIN Fuse Links
Brand: YOMIN
SKU: HR18
Rating: 4.7 (180 reviews)

660V 1600A 3- and 4-pole HR18 Fused Switch Disconnect For DIN Fuse Links supplier

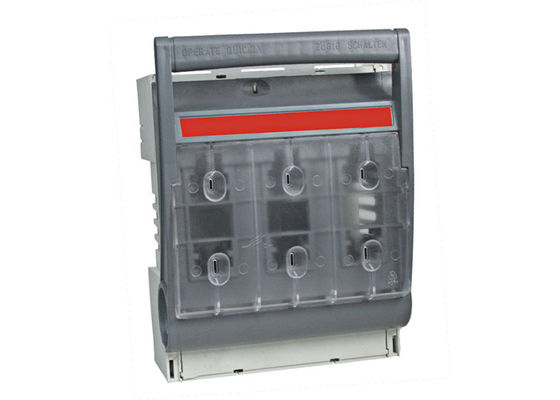

Large Image : 660V 1600A 3- and 4-pole HR18 Fused Switch Disconnect For DIN Fuse Links

Product Details:

Place of Origin:	Zhejiang , China ( Mainland )
Brand Name:	YOMIN
Certification:	CE / RoHS
Model Number:	HR18

Payment & Shipping Terms:

Minimum Order Quantity:	10 Piece
Price:	Negotiation
Packaging Details:	Export carton , 1 Piece / Carton
Delivery Time:	5 - 20 working days after received your payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	1000 Pieces Per Week

Contact Now

Detailed Product Description

Model Number:	HR18	Pole Quantity:	3 Poles
Rated Voltage::	AC400-690V	Rated Limiting Short Current::	50KA
External Material::	Plastic& Metal	Out Material::	Fire Resistance, PA &DMC
Usage::	Low Voltage	Breaking Capacity::	High
High Light:	electronic fuse , fuse system

660V 1600A 3- and 4-pole HR18 Fused Switch Disconnect For DIN Fuse Links

Description:

HR18 series fuse type load isolating switch is applicable to high short circuit current circuit with AC 50(60)Hz, voltage up to 660V and rated working current up to 1600A. It possesses upper and lower end input and output structure. Lead in equipment with knife-edge and arc extinguishing equipment, and also can be operated with load. It is used as power switch, isolating switch and emergency switch, and for protecting current..

Function:

DNH7(HR18) is a range of 3- and 4-pole NH2 fused switch disconnect for DIN fuse links. The fuse links are placed horizontally (side by side). It consists of a fuse base with 3 or 4 arc extinguishing chamber and a 3- or 4-pole fuse carrier pivoted at the lower end of the fuse base.

The solution for:

>Installtion.

>Switchboards.

>Distribution systems.

>OEM'S.

Strong points:

>Easy to install.

>Easy to snap on DIN rails.

>Easy to operate.

>Easy to understand.

>Modern cable terminals.

>Modern and functional design.

>Addtional arc protection shroud in front cover-increased personal safety.

>No emission of gasses at short circuits Wide range of modern cable clamps and accessories.

>Electronic fuse monitoring.

>Wide range of busbar adapters.

Specification:

Model No.		HR18-160A			HR18-2501A			HR18-400A			HR18-630A
Matched fuse link		NH00			NH1			NH2			NH3
Rated Voltage (V)		400	500	690	400	500	690	400	500	690	400	500	690
Rated Current (A)		125	160	125		250	200		400	315		630	500
Thermal current (A)		160			250			400			630
Rated insulated votage(V)		1000			1000			1000			1000
Rated impulse withstand voltage (V)		8000			8000			8000			8000
Fuse short circuit protected current (kAms)		50			50			50			50
Rated making and breaking capacity		AC23B	AC22B	AC21B	AC23B	AC22B	AC21B	AC23B	AC22B	AC21B	AC23B	AC22B	AC21B
Rated frequency (Hz)		50/60			50/60			50/60			50/60
Fuse link power loss (W)		3.5			7.5			13			24
Protection degree of front cover	Open	IP20			IP20			IP20			IP20
	Close	IP30			IP30			IP30			IP30
