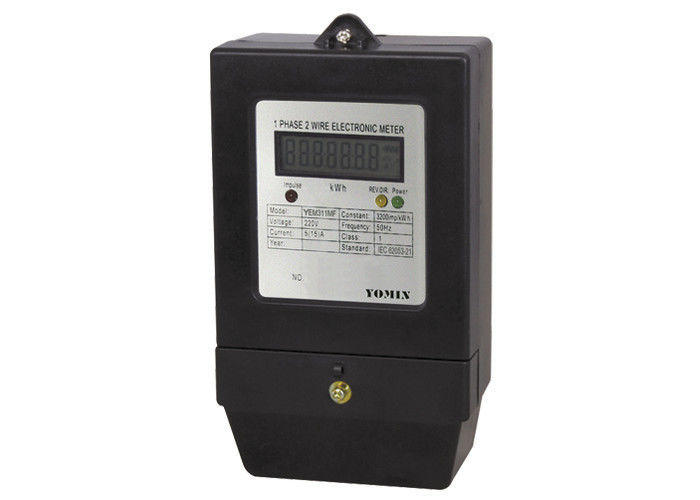

LCD Display 220V Single Phase 2 Wire Electronic Digital Energy Meter With Battery

LCD Display 220V 1 Phase 2 Wire Digital Electronic Energy Meter With Battery​

Product Description

Model YEM311MF single phase electronic front board installed active energy meter adopts micro-electronics technique, and imported large scale integrate circuit, and the meter is designed with application specific integrated circuit and manufactured using Surface Mount Technology (SMT). The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21 (Electricity Metering Equipment (AC) Particular Requirements Part 21 Static Meters for Active Energy (Ciass1). It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for indoor or outdoor, and this meter has seven digits LCD displays shows the active energy consumption. And there is a maintenance-free lithium battery in it, use for displaying power cup reading. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Technical Parameters

Competitive Advantage

1. Front board three fixed installation.

2. The materials and electronic power components used in the meter manufacturing is of highest quality and of reputed make to ensure higher reliability, longer life and sustained accuracy.

3. Seven digits display LCD, standard configuration 6+1 digits display (999999.1kWh). May select 5+2 digits display (Please specified when ordering).

4. There is a maintenance-free lithium battery in it, used for showing the power when power failure.

5. Standard configuration one port of pulse output passive (polarity),May select increase a distant port of pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864.

6. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is MC).

7. All packing will assure safety transport of the equipment under all conditions and limitations that could be encountered. The packing will protect the equipment up to arrival at its final destination against breakage, damage and losses due to breakage of the covering.

8. The materials and electronic power components used in the meter Manufacturing shall be of highest quality and of reputed make to ensure higher reliability, longer life and sustained accuracy.

Dimension

Wiring Diagram
