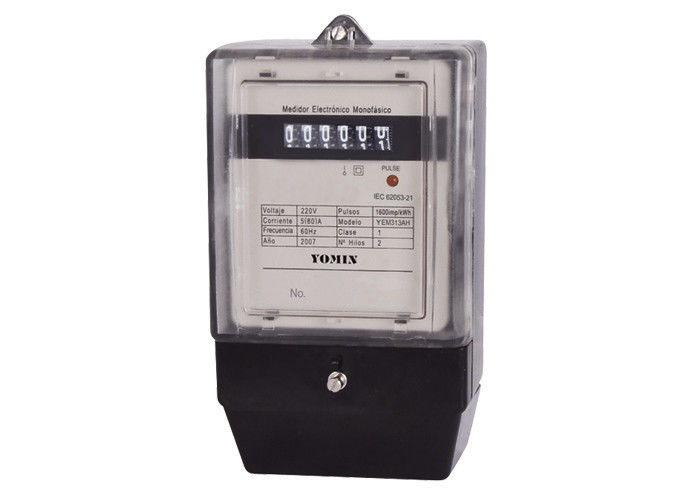

127/230V PC Cover Single Phase kilowatt hour meter With Ultrasonic Closed Cover

127/230V PC Cover Single Phase Electronic Energy Meter With Ultrasonic Closed Cover

Product Description:

Model YEM313AH single phase electronic front board installed active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or setting out door directly, and it can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Specification

* If you need different reference voltage or current specification, please advisory our sales personnel.

Competitive Advantage

1. Front board three fixed installation, the cover is made of PC material which is transparent and anti-UV molded overall, the bottom and the terminal of the meter are made of black glass fiber which can fire-retardant and enhanced PC material, and the IP rating up to IP56. It has following features: good weatherability, anti-impact, good insulation performance, specious appearance, etc.

2. Standard configuration the bottom and the terminal of the meter are closed by the screw of the meter, may select the bottom and the terminal of the meter are closed by ultrasonic. (Please specified when ordering).

3. Standard configuration 5+1 digits display (99999.1kWh) by step motor type impulse register. May select 6+1 digits display (Product Configuration code is AK).

4. Standard configuration one port of pulse output passive (polarity),May select increase a distant port of pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently,Complying with standard IEC 62053-31 and DIN 43864.

5. Single direction single component measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

6. Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is TG).

7. Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is AH).

8. We carry out your order into our production schedule , ensure your punctual delivery time. Shipping notice and photos sent to you as soon as your order is shipped.

9. We will provide you great after sales service: We pay high attention to your feedback when receive the goods, and we can provide 24 months warranty after goods arrive.

10. We have professional sales who value every inquiry sent to us, ensure quick competitive offer.

11. We cooperate with customer to bid tenders. Provide all necessary documents.

12. We are a sales team, with all technical support from engineer team.

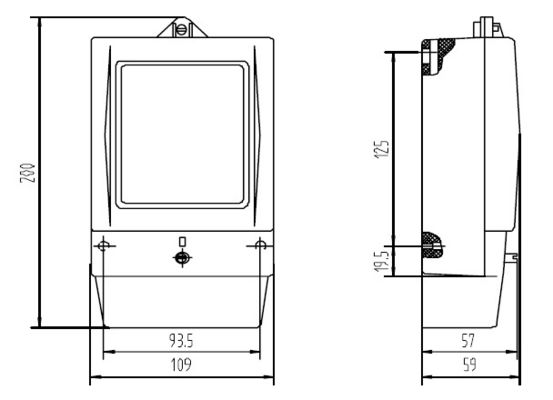

Dimension

Wiring Diagram
