Single Phase Electronic Energy Meter , Electric kilowatt hour meter Analog Display

China Single Phase Electronic Energy Meter , Electric kilowatt hour meter Analog Display supplier
Single Phase Electronic Energy Meter , Electric kilowatt hour meter Analog Display supplier Single Phase Electronic Energy Meter , Electric kilowatt hour meter Analog Display supplier

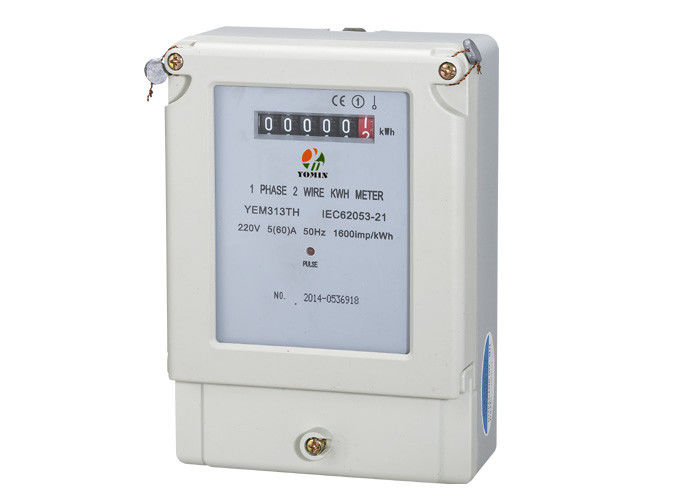

Large Image :  Single Phase Electronic Energy Meter , Electric kilowatt hour meter Analog Display

Product Details:

Place of Origin: China
Brand Name: YOMIN
Certification: CE/ROHS
Model Number: YEM313TH

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: T/T or western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Frequency: 50/60Hz Accuracy: Class 1
Display: Analog Color: White
OEM / ODM: Yes Protection Degree: IP56



One Phase Electronic Energy Meter , 1 Phase Electric Meter , Watt - hour Meter



Product Description:



Model YEM313TH single phase electronic front board installed active energy meter is a kind of new style single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or setting out door directly, and it can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.



Specification



Model

Accuracy

Reference Voltage

Current Specification

Starting Current

Insulation Performance

YEM313TH

Class 1

127/230V

5(30)A

10(50)A

20(100)A

0.02A

0.04A

0.08A

AC voltage 4kv for 1 min, 1.2/50us waveform impulse voltage 6kv

* If you need different reference voltage or current specification, please advisory our sales personnel.



Competitive Advantage



1. Front board three fixed installation, the cover is made of PC material which is transparent and anti-UV molded overall, the bottom and the terminal of the meter are made of black glass fiber which can fire-retardant and enhanced PC material, and the IP rating up to IP56. It has following features: good weatherability, anti-impact, good insulation performance, specious appearance, etc.



3. Standard configuration the bottom and the terminal of the meter are closed by the screw of the meter, may select the bottom and the terminal of the meter are closed by ultrasonic. (Please specified when ordering).



4. Standard configuration 5+1 digits display (99999.1kWh) by step motor type impulse register. May select 6+1 digits display (Product Configuration code is UC).



5. Standard configuration one port of pulse output passive (polarity),May select increase a distant port of pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently,Complying with standard IEC 62053-31 and DIN 43864.



6. Standard configuration only one LED instructions signal of energy impulse (red), may select add instructions power supply state (green) and automatic detection the direction of the flow of load current and instructions by LED (when display yellow, that is meaning the direction of the flow of load current reverse). Please specified when ordering.



7. Single direction single component measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.



8. Direct connect operation, there are two types wiring you may select. Standard configuration type 1A wiring, may select type 1B wiring (Product Configuration code is AH).



9. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is TG).

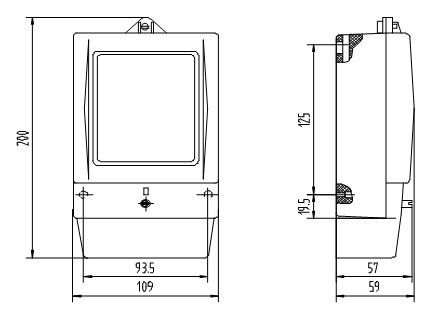

Dimension



Single Phase Electronic Energy Meter , Electric kilowatt hour meter Analog Display



Wiring Diagram



Single Phase Electronic Energy Meter , Electric kilowatt hour meter Analog Display



Why Choose Us?



1. Factory with 13 years produce and export experience. Our products have already exported to clients in such market as North America, South America, Europe, South Asia and the Mid-east.



2. Retail/wholesale/OEM/ODM available, quick delivery ( in stock within 24 hours).



3. We have got CE, RoHS and ISO9001 certificate. At the same time, we have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.
