5A 10A 20A Single Phase Energy Meter With Surface Mount Technology

China 5A 10A 20A Single Phase Energy Meter With Surface Mount Technology supplier
5A 10A 20A Single Phase Energy Meter With Surface Mount Technology supplier 5A 10A 20A Single Phase Energy Meter With Surface Mount Technology supplier

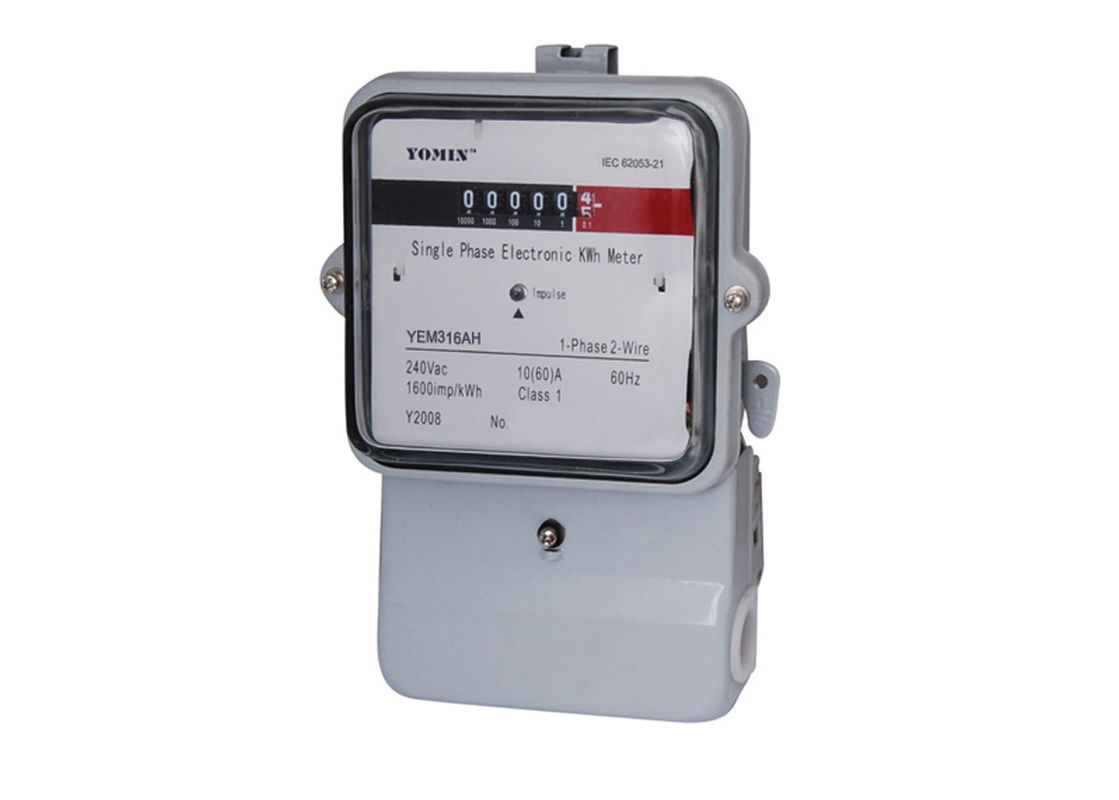

Large Image :  5A 10A 20A Single Phase Energy Meter With Surface Mount Technology

Product Details:

Place of Origin: China
Brand Name: YOMIN
Certification: CE/ROHS
Model Number: YEM316AH

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: T/T or western Union
Supply Ability: 10000pcs per month
Detailed Product Description
Frequency: 50/60Hz Accuracy: Class 1
Display: Analog Color: Gary
Dimension: 211*142.5*67mm Material: Steel
High Light:

electronic watt hour meter

,

electronic kwh meter



Single Phase Electronic  Energy Meter With Micro-electronics Techiniques 5A 10A 20A



Product Description:



Model YEM316AH single phase electronic front board installed active energy meter is a kind of new style single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door, and it can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.



Specification



Model

Accuracy

Reference Voltage

Current Specification

Starting Current

Insulation Performance

YEM316AH

Class 1

127/230V

5(30)A
10(60)A
20(100)A

0.02A
0.04A
0.08A

AC voltage 4kv for 1 min, 1.2/50us waveform impulse voltage 6kv

* If you need different reference voltage or current specification, please advisory our sales personnel.



Competitive Advantage



1. Front board three fixed installation, the cover is made of high definition transparent glass material molded overall , the bottom of the meter is made of quality steel which is after double-through antirust processing, and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: good weatherability, high rigid, specious appearance, etc.



2. Standard configuration 5+1 digits display (99999.1kWh) by step motor type impulse register. May select 6+1 digits display (Product Configuration code is SC).



3. Standard configuration one port of pulse output passive (polarity),May select increase a distant port of pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently,Complying with standard IEC 62053-31 and DIN 43864.



4. Standard configuration only one LED instructions signal of energy impulse (red), may select add instructions power supply state (green)and automatic detection the direction of the flow of load current and instructions by LED (when display yellow, that is meaning the direction of the flow of load current reverse). Please specified when ordering.



5. Single direction single component measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.



6. Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is TH).



7. Extension terminals cover, in order to protect to use safety.

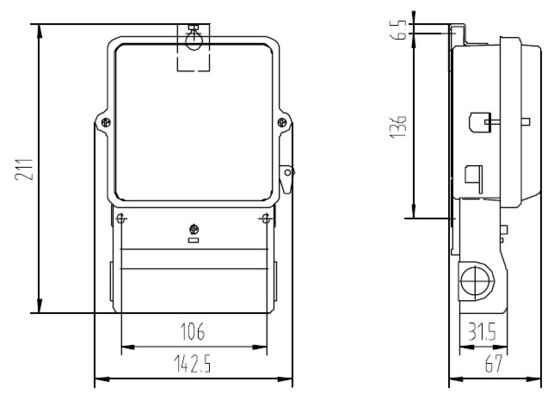

Dimension



5A 10A 20A Single Phase Energy Meter With Surface Mount Technology



Wiring Diagram



5A 10A 20A Single Phase Energy Meter With Surface Mount Technology

FAQ



1. Your company is a manufacturer or a foreign trade company?

We are a manufacturer in the past to undertake design and processing of all types of energy meter of OEM and ODM to provide production severice and technical support for major and medium-sized enterprises.



2. Which payment can offer?

We accept 30% payment in advance, the balance payment before shipping.We also accept L/C according to the order amount.We can accept the payment by T/T, Western Union, Paypal, Private Account.



3. Your Packing And Shipment?

By Express: DHL, FEDEX, UPS, TNT, SF EXPRESS and China Post, China Small Package and so on.

By Air: We can ship from Wenzhou

By Sea: We can offer you FOB Ningbo, FOB Shanghai, FOB Shenzhen, FOB Urumqi, FOB XiaMen, FOB Beijing.We also can send to your forwarder or agent in China, who can arrange shipment for you.
