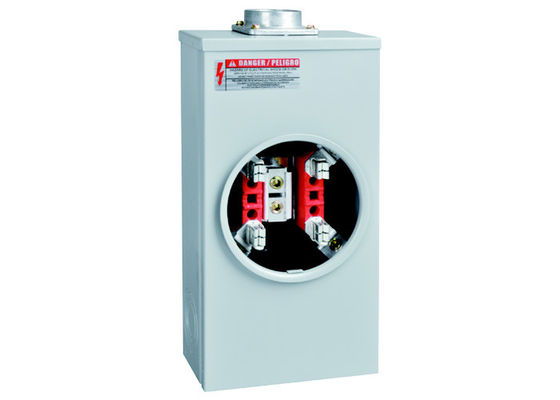

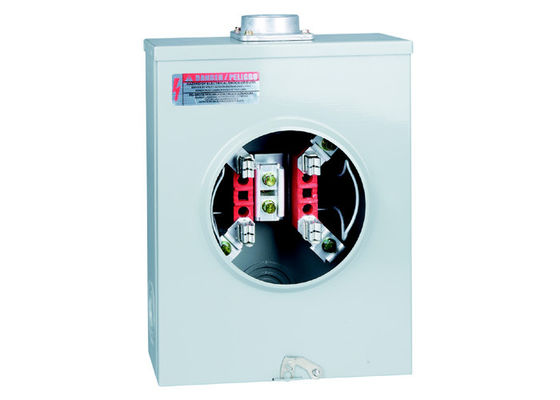

American Type Wall-Mounting Electrical Meter Socket For Plug In Energy Meters

Name: American Type Wall-Mounting Electrical Meter Socket For Plug In Energy Meters
Brand: YOMIN
SKU: YM-200-4J-R
Rating: 5 (121 reviews)

American Type Wall-Mounting Electrical Meter Socket For Plug In Energy Meters supplier

Large Image : American Type Wall-Mounting Electrical Meter Socket For Plug In Energy Meters

Product Details:

Place of Origin:	Zhejiang, China (Mainland)
Brand Name:	YOMIN
Certification:	CE/RoHS
Model Number:	YM-200-4J-R

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	negotiation
Packaging Details:	Standard Exporting Carton
Delivery Time:	5-30 working days after receiving payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	50000 per month

Contact Now

Detailed Product Description

Place Of Origin:	Zhejiang, China (Mainland)	Brand Name:	YOMIN
Model Number:	YM-200-4J-R	Rated Current:	200A Meter Base
Rated Voltage:	600V Meter Base	Color:	Gray Meter Base
Shape:	Rectangle Meter Base	Material:	Steel Box Meter Socket
High Light:	Energy Meter Socket , electric Meter parts

American Type Wall-Mounting Electrical Meter Socket For Plug In Energy Meters

Descrition

The meter base is the enclosure that houses your electric meter. It must keep all the electrical connections and wires inside dry and protected from the elements.

YOMIN's line of single position, self-contained meter sockets house the utilities electrical watt-hour meters in residential and commercial buildings. Sockets work with a circuit breaker distribution section in a rainproof enclosure for residential installations, rural service entrance, mobile homes, and for temporary power on construction sites. Choose from the widest range of utility approved sockets in the industry,including 100-320A units.

Specification

Product number	Description	Outline Dimensions
Product number	Description	H	W	D
YM-200-4J-R	1 Phase,200A, 4 Jaw, Ring type	396	203	108
YM -200-5J-R	1 Phase,200A, 4 Jaw, Ring type	396	203	108
YM -200-7J-R	3 Phase,200A, 7 Jaw, Ring type	396	203	108
YM -200-4J-RL	1 Phase,200A, 4 Jaw, Ringless type	396	203	108
YM -200-5J-RL	1 Phase,200A, 5 Jaw, Ringless type	396	203	108
YM -200-7J-RL	3 Phase,200A, 7 Jaw, Ringless type	396	203	108
YM -200B-4J-RL	1 Phase,200A, 4 Jaw, Ringless type	396	280	108

Features

-- 200Amps, 600V AC.

-- Connectors Line and load size #6-350 Cu-AI

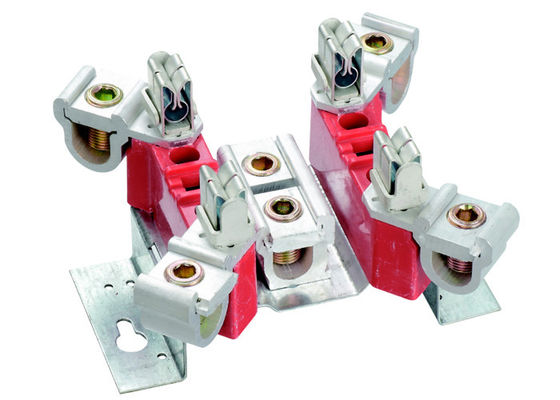

-- Heavy duty tinned copper jaw with reinforced clip.

-- C/W center neutral bar.

-- NEMA 3R type construction 1.2mm thickness (#18 gauge) or 1.5mm thickness(#16 gauge) galvanized steel sheet, electro statically applied epoxy baked gray powder finished.

-- Ample gutter space for easy wiring.

-- Convenient knockouts in the side back and bottom.

-- Lay in type terminal with pressure plates for easy connections.

-- The fixed hub size 1/2” to 2- 1/2” for option.

Dimension

American Type Wall-Mounting Electrical Meter Socket For Plug In Energy Meters
