Mini Size Electrical AC Measuring Analogue Panel Meters Ammeter 96 * 96 5 - 100A Class 1.5

China Mini Size Electrical AC Measuring Analogue Panel Meters Ammeter 96 * 96 5 - 100A Class 1.5 supplier
Mini Size Electrical AC Measuring Analogue Panel Meters Ammeter 96 * 96 5 - 100A Class 1.5 supplier Mini Size Electrical AC Measuring Analogue Panel Meters Ammeter 96 * 96 5 - 100A Class 1.5 supplier Mini Size Electrical AC Measuring Analogue Panel Meters Ammeter 96 * 96 5 - 100A Class 1.5 supplier

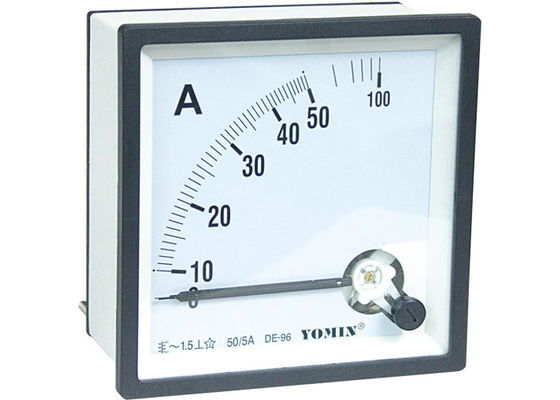

Large Image :  Mini Size Electrical AC Measuring Analogue Panel Meters Ammeter 96 * 96 5 - 100A Class 1.5

Product Details:

Place of Origin: Zhejiang , China ( Mainland )
Brand Name: YOMIN
Certification: CE / RoHS
Model Number: DT - DA96

Payment & Shipping Terms:

Minimum Order Quantity: 100 Pieces
Price: Negotiation
Packaging Details: Standard Exporting Carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: L/C , T/T , Western Union , Paypal
Supply Ability: 60000 per month
Contact Now
Detailed Product Description
Model Number: DT-DA96 OEM/ODM: Allowed
Display Type: Analog Only Measuring Range: 0-100A
Accuracy Class: 1.5 Dimensions: 96 * 96

Mini Size Electrical AC Measuring Analogue Panel Meters Ammeter 96 * 96 5 - 100A Class 1.5





Description :



-- Reference Standards:

EN60051,EN50081,EN50082,EN61010,IEC60051,IEC1010,DIN43780



-- Auxilary power supply

The accepted tolerance for nominal values of the auxiliary power supplt is:Voltage:+10%~-15% Frequency:45Hz~65Hz



-- Zero Correction

A zero corrector is provided on the front panel of the meter,which can adjust the pointer to the zero position.



-- Casing

The casing and frames for all instruments are made of self extinguishing ABS,according to UL94,with high impact resistance.

The bases are made from self extinguishing reinforced PPO,according to UL94,with high impact resistance and maximum electrical insulation.





Specification :



Model

Frame Size (mm)

Mode

Measuring Range

Class Index

Case

Qty.(Pcs)

Item Code

Direct Input AC Ammeter  ( 2ln)

DT-DA96

96X96

-

5~100A

1.5

60

1496000

DT-DA72

72X72

-

5~100A

1.5

100

1472000

DT-DA48

48X48

-

5~50A

2.5

256

1448000



DE-DA96

96X96

-

5~100A

1.5

60

1596000

DE-DA72

72X72

-

5~100A

1.5

100

1572000

DL-DA72

72X72

-

5~100A

1.5

100

1672000





Features :



1. Product Name: Direct Input AC Ammeter, Direct AC Ammeter

2. Model: DT-DA96,DT-DA72,DT-DA48

3. Accuracy: Class 1.5.

4. Specification: 0.1A 0.5A 1A 7.5A 10A 15A 20A 25A 30A 40A 50A 60A 75A 100A . For 5A-10KA use external current transformer with secondary current 5A and 1A.
Notes: For 60A, 75A, 100A meters, when these meters directly connected to circuit, their accuracy is class 2.5. For 20A-60A direct reading ZZ-48 meters, the accuracy is class 2.5.

5. Heat resistance: Case of non-combustible plastic Material.

6. Changeable scale: All scales with printing technique. The dial plate with different scale, which is at the same division and internal value, can be changeable. But the accuracy is unchangeable.

7. Fastening: By means of nuts, absolutely safe, fast, robust, side-by-side.
Mounting depth: Max. 43mm.





Dimension :



Mini Size Electrical AC Measuring Analogue Panel Meters Ammeter 96 * 96 5 - 100A Class 1.5



Packing :



Mini Size Electrical AC Measuring Analogue Panel Meters Ammeter 96 * 96 5 - 100A Class 1.5
