ANSI Socket Type Three Wire Single Phase Electronic Energy Meter 100A

ANSI Socket Type Single Phase Three Wire Electronic Energy Meter , Socket Meter 100A

Product Description

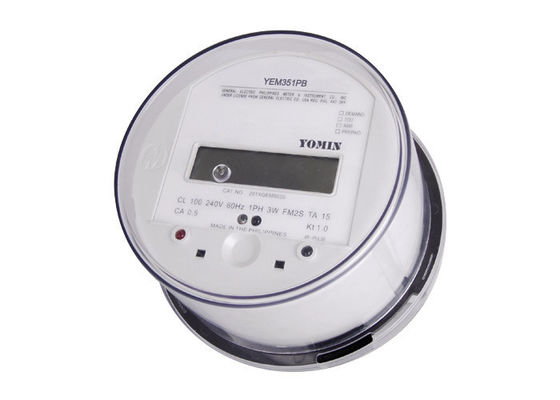

Model YEM351PB single phase three wire electronic socket installed active energy meter is a kind of new style single phase three wire active energy meter. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21 and standard ANSI C12.10-1997. It can accurately and directly measure 50Hz or 60Hz active energy consumption from three phase AC electricity net, it is use for setting indoor or outdoor meter box. This meter has 7 digits LCD displays shows power. And there is far infrared communication module in it, can read the meter and set the system parameters conveniently, it has following features: good reliability, light weight, specious nice appearance, convenient installation, etc.

Specification

* If you need different reference voltage or current specification, please advisory our sales personnel.

Competitive Advantage

1. Socket installed, the cover is made of PC material which is transparent and anti-UV molded overall, the terminal is made of black glass fiber which can fire-retardant and enhanced PC material. It has following features: Good weatherability, anti-impact, specious appearance, etc. complying with standard ANSI C12.10-1997.

2. 8 digits LCD display, may select 6+2 digits display (999999.91kWh, default) or 7+1 digits display, can be set by the port of far infrared communication by users.

3. There is a port of far infrared pulse output, use for checking conveniently.

4. There is a port of far infrared state communication, standard configuration communication agreement complying with standard DL/T645-1997, may select other configuration communication agreement.

5. LED instructions signal of energy impulse (red).

6. Automatic detection of the flow of load current, and display on LCD (when display, that is meaning the direction of the flow of load current reverse).

7. Single direction single component measure single phase three wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

8. Directly connect operation, type 2S wiring, may select single phase two wire, Directly connect operation, type 1S wiring (Product Configuration code is PA).

Wiring Diagram

1. Q: Are you factory?

    A: Yes, we are the professional energy meter manufacturer and have more than 20 years of export experience of all kinds of energy meter.

2. Q: Do you have any certificates?

    A: We got CE and RoHS certificate and KEMA factory certificate.

3. Q: How about your products quality inspection?

    A: We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.

4. Q: Can you accept to use our logo?

    A: we accept OEM and ODM production and can make customized product.

5. Q: What’s your quality guarantee?

    A: we provide repair or replace service within 12 months after the date out of the factory and the products are furnished with factory security seals.

1. Excellent before & after-sales service: 24 hours x 7 days;

2. Life-long maintenance service for the products.
