Product Details:
Payment & Shipping Terms:
|
Brand Name: | YOMIN | Model Number: | DT-A96 |
---|---|---|---|
OEM/ODM: | Allowed | Measuring Range: | 5A - 6000A |
Mounting Depth: | Max.43mm | Accuracy Class: | 1.5 |
Operating Temperature: | -20℃ ~ +50℃ | ||
High Light: | electronic kilowatt hour meter,electronic kwh meter |

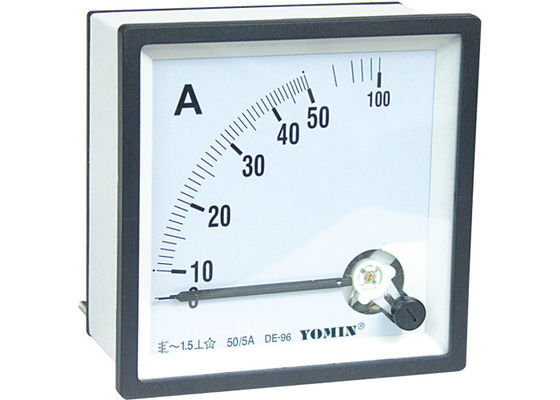

Moving Iron and Moving Coil European Style Analogue Panel Meters with CT Operated
Description
In analog meters, the interface is application specific and can display any unit of measure, with nearly any input signal that is representative of the process. An analog meter can display speed, frequency, Voltage, current, temperature, strokes per minute, or feet per second. The actual input signals are analog voltage or current, in either AC or DC. An example is 0 to 10 volts DC, four to 20 milliamps DC or 0 to 100 volts DC. Digital meters operate in much the same way; however digital meters will often-times also include digital scaling of the display relative to the input signal.
YOMIN supplies a complete line of precise panel meters for almost any application. The meters are available with taut band or piviot and jewel suspension and are available in AC/DC Amps, Volts, frequency and elapsed time. Some models also include Watts, Vars and Power Factor. Sizes range from 1.5" to 4.5" for standard panel meters or 72mm and 96mm for DIN panel mount.
Specification
Model |
Frame Size (mm) |
Mode |
Measuring Range |
Class Index |
Case Qty.(Pcs) |
Item Code |
Direct Input AC Ammeter ( 2ln) |
||||||
DT-DA96 |
96X96 |
- |
5~100A |
1.5 |
60 |
1496000 |
DT-DA72 |
72X72 |
- |
5~100A |
1.5 |
100 |
1472000 |
DT-DA48 |
48X48 |
- |
5~50A |
2.5 |
256 |
1448000 |
|
||||||
DE-DA96 |
96X96 |
- |
5~100A |
1.5 |
60 |
1596000 |
DE-DA72 |
72X72 |
- |
5~100A |
1.5 |
100 |
1572000 |
DL-DA72 |
72X72 |
- |
5~100A |
1.5 |
100 |
1672000 |
Features
Moving Iron Instrument AC Ammeter
Direct Input AC Ammeter
Model : DT - DA96 , 72 , 48
CT Operated AC Ammeter
Model : DT - A96 , 72 , 48
Moving Iron Instrument AC Ammeter
Direct Input AC Ammeter
Model : DT - DA96 , 72 , 48
CT Operated AC Ammeter
Model : DT - A96 , 72 , 48
96 Moving Iron Instruments AC meter,anolog meter
( 1 )Accuracy : class 1.5 ( over 60A class 2.5 )
( 2 )Specification : 0.5A 1A 1.5A 3A 5A 7.5A 10A 15A 20A 25A 30A 40A 50A 60A 80A 100A , if over 100A , meters can be contacted current transformer with secondary current 5A or 1A
96 Moving Iron Instruments AC meter,anolog meter
( 1 )Accuracy : class 1.5 ( over 60A class 2.5 )
( 2 )Specification : 0.5A 1A 1.5A 3A 5A 7.5A 10A 15A 20A 25A 30A 40A 50A 60A 80A 100A , if over 100A , meters can be contacted current transformer with secondary current 5A or 1A
Dimension
