|Model Number:||DT-A96||Display Type:||Analog Only|
|Measuring Range:||5A - 6000A||Dimensions:||96*96 , 72*72 , 48*48|
|Accuracy Class:||1.5,2.5||Supply Voltage:||220V|

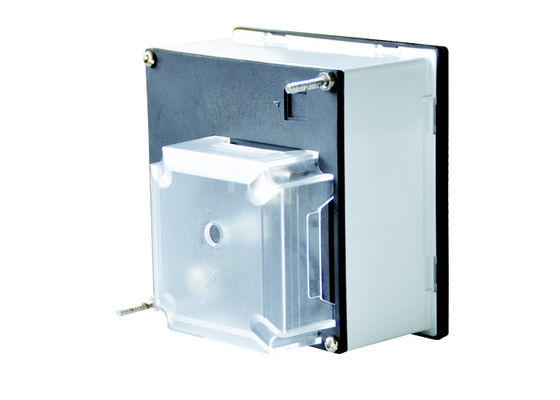

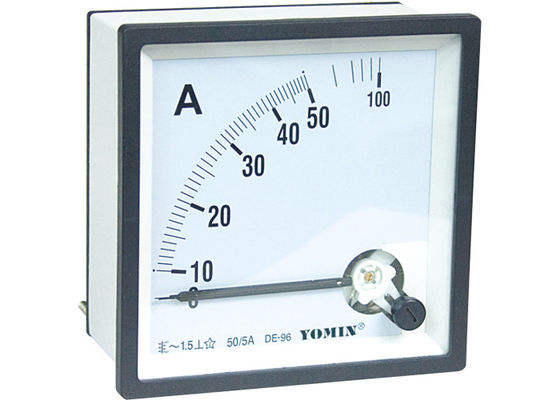

96*96 , 72*72 , 48*48 Analogue Panel Meters for 50 Amp Reading
Moving-coil meters are intended for measuring AC current or AC voltage. These meters measure the RMS value and their indications are highly independent of the measured value curve shape.
Reference Standards :
Auxilary power supply :
The accepted tolerance for nominal values of the auxiliary power supplt is:Voltage:+10%~-15% Frequency:45Hz~65Hz
Zero Correction :
A zero corrector is provided on the front panel of the meter,which can adjust the pointer to the zero position.
The casing and frames for all instruments are made of self extinguishing ABS,according to UL94,with high impact resistance.
The bases are made from self extinguishing reinforced PPO,according to UL94,with high impact resistance and maximum electrical insulation.
|Mode||Measuring range||Class Index||Case Qty.(Pcs)|
1. Product Name: Direct Input AC Ammeter, Direct AC Ammeter
2. Model: DT-DA96,DT-DA72,DT-DA48
3. Accuracy: Class 1.5.
4. Specification: 0.1A 0.5A 1A 7.5A 10A 15A 20A 25A 30A 40A 50A 60A 75A 100A . For 5A-10KA use external current transformer with secondary current 5A and 1A.
Notes: For 60A, 75A, 100A meters, when these meters directly connected to circuit, their accuracy is class 2.5. For 20A-60A direct reading ZZ-48 meters, the accuracy is class 2.5.
5. Heat resistance: Case of non-combustible plastic Material.
6. Changeable scale: All scales with printing technique. The dial plate with different scale, which is at the same division and internal value, can be changeable. But the accuracy is unchangeable.
7. Fastening: By means of nuts, absolutely safe, fast, robust, side-by-side.
Mounting depth: Max. 43mm.
