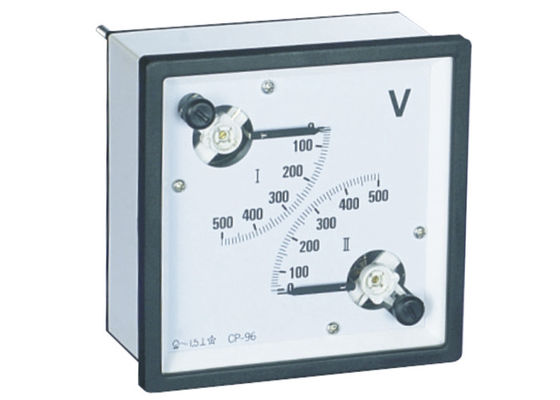

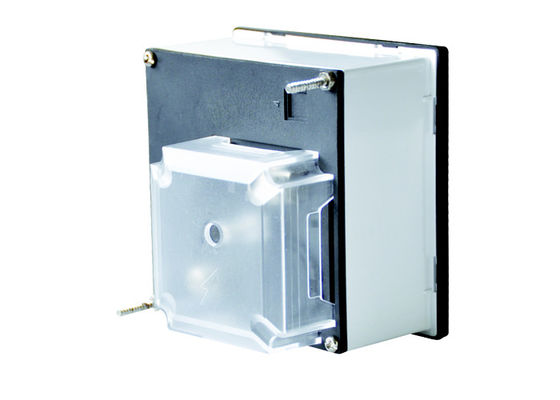

Distribution Box / Generator Used Panel Meters , Analog Display Type / Panel Volt Meter Dual

China Distribution Box / Generator Used Panel Meters , Analog Display Type / Panel Volt Meter Dual supplier
Distribution Box / Generator Used Panel Meters , Analog Display Type / Panel Volt Meter Dual supplier Distribution Box / Generator Used Panel Meters , Analog Display Type / Panel Volt Meter Dual supplier

Large Image :  Distribution Box / Generator Used Panel Meters , Analog Display Type / Panel Volt Meter Dual

Product Details:

Place of Origin: Zhejiang , China (Mainland)
Brand Name: YOMIN
Certification: CE / RoHS
Model Number: DT - 2V96

Payment & Shipping Terms:

Minimum Order Quantity: 100 Pieces
Price: Negotiation
Packaging Details: Standard Exporting Carton, 48 pcs per carton or as per your request
Delivery Time: 5-30 working days after receiving payment
Payment Terms: L/C , T/T , Western Union , Paypal
Supply Ability: 60000 per month
Contact Now
Detailed Product Description
Model Number: DT - 2V96 Display Type: Analog Only
Measuring Range: 5A - 6000A Operating Temperature: -20℃ ~ +50℃
Accuracy Class: 1.5 , 2.5 Application: Distribution Box , Generator , Etc

DT-2V96 100-600V Analogue Panel Meters / Panel Volt Meter



Description :



 DT-2V96 TYPE Movingiron meters are inteded for measuring DCcurrent or DC voltage.These meters can also be used for measuring AC voltages and AC currents as ong s rectifiler built in.



Reference Standards


EN60051,EN50081,EN50082,EN61010,IEC60051,IEC1010,DIN43780



Auxilary power supply



The accepted tolerance for nominal values of the auxiliary power supplt is:Voltage:+10%~-15% Frequency:45Hz~65Hz



Zero Correction



A zero corrector is provided on the front panel of the meter,which can adjust the pointer to the zero position.



Casing



The casing and frames for all instruments are made of self extinguishing ABS,according to UL94,with high impact resistance.

The bases are made from self extinguishing reinforced PPO,according to UL94,with high impact resistance and maximum electrical insulation.



Specification :



Model

Frame Size

(mm)

Measuring range Class Index Case Qty.(Pcs)
DT-2V96 96*96 100-600V  1.5 48
DT-2V72 96*96 100-600V  1.5 48



Features :



1. Product Name: Direct Input AC Ammeter, Direct AC Ammeter



2. Model: DT-DA96,DT-DA72,DT-DA48



3. Accuracy: Class 1.5.



4. Specification: 0.1A 0.5A 1A 7.5A 10A 15A 20A 25A 30A 40A 50A 60A 75A 100A . For 5A-10KA use external current transformer with secondary current 5A and 1A.


Notes: For 60A, 75A, 100A meters, when these meters directly connected to circuit, their accuracy is class 2.5. For 20A-60A direct reading ZZ-48 meters, the accuracy is class 2.5.



5. Heat resistance: Case of non-combustible plastic Material.



6. Changeable scale: All scales with printing technique. The dial plate with different scale, which is at the same division and internal value, can be changeable. But the accuracy is unchangeable.



7. Fastening: By means of nuts, absolutely safe, fast, robust, side-by-side.
Mounting depth: Max. 43mm.



Dimension :



Distribution Box / Generator Used Panel Meters , Analog Display Type / Panel Volt Meter Dual



Frame Size Dimension(mm)
A B C D E F
96x96mm 96 92 90 5.5 65 43
72x72mm 72 68 66 5.5 65 43
