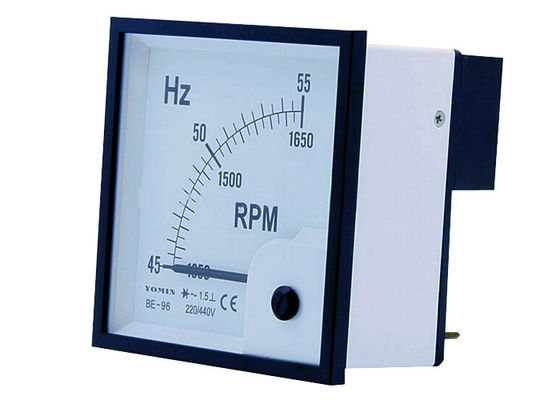

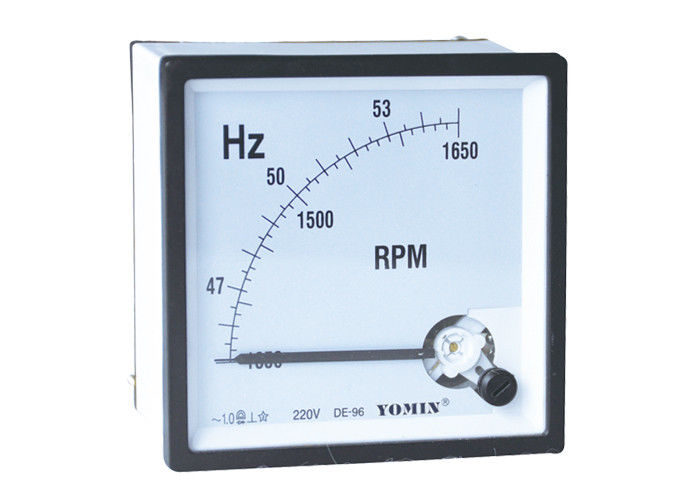

Single phase Panel Meter Analogue

Single phase Panel Meter Analogue , Frequency Meter With High Precision,Hz Meter /

Description

DE-FR96 RPM Analogue frequency meters can measure the other non-electric values.

Frequency meter is the instrument which measures the frequency. Frequency meter shows the number of the cycles in 1 second. Frequency meters are connected parallel to circuit which frequency will be measured like voltmeters.

Specification

Features :

Composition:

Glass window, ABS Resin frame and case, PC glass fiber base mounting fitting included.

Scale Plate:

The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.

Scale plate with special requirements are available upon request.

Such as color, scale with lighting functions and PVC noctilucence are available upon request.

Color:

Black base and frame , white scale plate and meter body.

Pointer:

Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.

Anti-static:

All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of  the meters.

Damping and Overshoot:

The overshoot is less than 15% when the pointer is at the 2/3 of the scale.

Damping and overshoot can be customized according to user’s requirements.

Accuracy:

Class1.5, 2.5;

Safety Precautions:

Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.

The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.

Dimension
