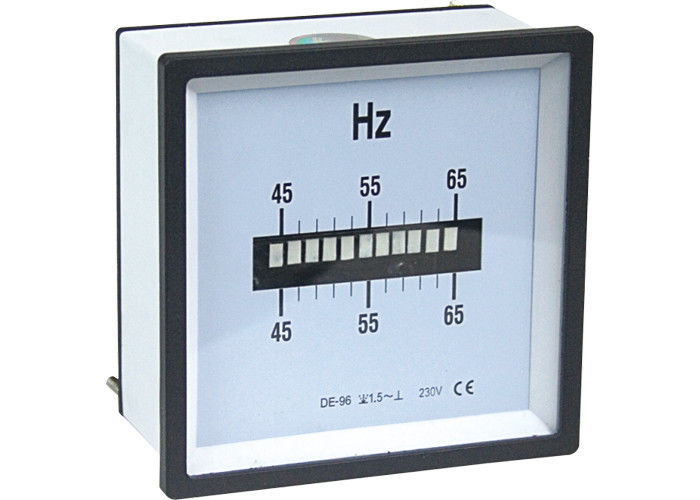

Single Row Vibrating Reed Analogue Meter

China Single Row Vibrating Reed Analogue Meter supplier
Single Row Vibrating Reed Analogue Meter supplier Single Row Vibrating Reed Analogue Meter supplier

Large Image :  Single Row Vibrating Reed Analogue Meter

Product Details:

Place of Origin: Zhejiang , China (Mainland)
Brand Name: YOMIN
Certification: CE / RoHS
Model Number: DT - R96

Payment & Shipping Terms:

Minimum Order Quantity: 100 Pieces
Price: Negotiation
Packaging Details: polybag+paper box+carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: L/C , T/T , Western Union , Paypal
Supply Ability: 60000 per month
Contact Now
Detailed Product Description
Place Of Origin: Zhejiang , China ( Mainland ) Brand Name: YOMIN
Voltage: 110V , 220V , 380V , 415V Display Type: Analog Only
Accuracy Class: 1.5 Operating Temperature: -25℃~+40℃
Measuring Range: 45Hz - 65Hz Pointer Color: Black & Red & White

Single Row Vibrating Reed Analogue Meter, Frequency Meter For Class 1.5 .



Description



Vibrating Reed Frequency Meter
One Row of reed Model: DT-R96,DT-R72

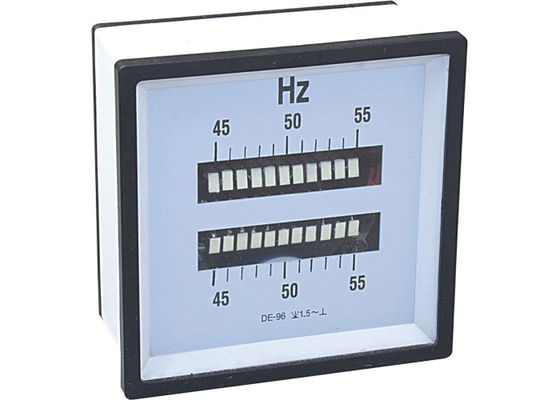

Two Rows of reeds Model: DT-2R96
> Frequency meters with one row of horizontal reeds are used to measure frequencies ranging from 45Hz to 65Hz. Vertical arrangement is available on request. The nominal mark is 2R.
> Frequency meters with two rows of horizontal reeds are used to compare two frequencies for synchronizing with two electrically separated systems. Vertical arrangement is available on request. The nominal mark is 2R.
Accuracy: Class 1.5



Specification



Model Frame size Measuring Range Class Index Case Qty.
DT-R96 96X96 45~65Hz 1.5 60Pcs
DT-R72 72X72 45~65Hz 1.5 100Pcs
DT-2R96 96X96 45~65Hz 1.5 60Pcs
DT-2R72 72X72 45~65Hz 1.5 100Pcs

Note: Please mention the voltage when ordering, our standard voltage are 110V,220V,380V,415V, special voltage upon request.



Features



Voltage: 110V,220V,380V,415V
Frequency: 45~55Hz, 45~65Hz, 55~65Hz, 47~53Hz, 57~63Hz, 44~56Hz,54~66Hz.
Case: Non-combustile ABS plastic material is used for making SF series'external case,and PPO plastic material is used for SF series's base.
Mounting: flush mounting with bracket.





Dimension



Single Row Vibrating Reed Analogue Meter



Frame Size Dimension(mm)
A B C D E F
96x96mm 96 92 90 5.5 65 43
72x72mm 72 68 66 5.5 65 43
