Three Phase Analogue Panel Meters , Selection of Power Factor Meter 96*96

Name: Three Phase Analogue Panel Meters , Selection of Power Factor Meter 96*96
Brand: YOMIN
SKU: DT - PF96
Rating: 5 (117 reviews)

Three Phase Analogue Panel Meters , Selection of Power Factor Meter 96*96 supplier

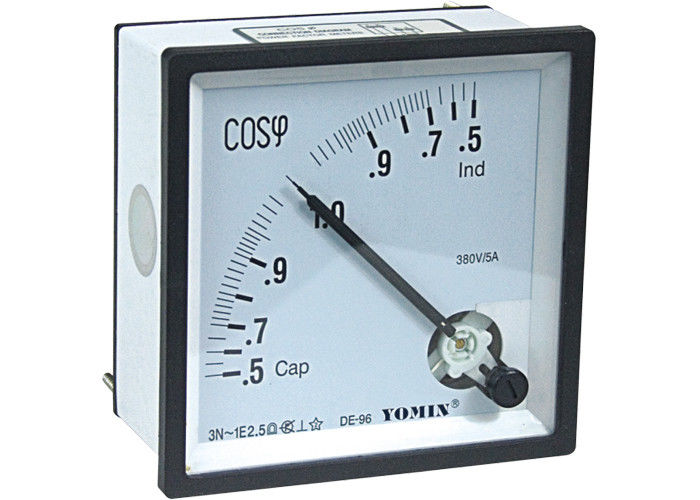

Large Image : Three Phase Analogue Panel Meters , Selection of Power Factor Meter 96*96

Product Details:

Place of Origin:	Zhejiang , China ( Mainland )
Brand Name:	YOMIN
Certification:	CE / RoHS
Model Number:	DT - PF96

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Negotiation
Packaging Details:	Polybag + paper box + carton
Delivery Time:	5 - 30 working days after receiving payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	60000 per month

Contact Now

Detailed Product Description

Brand Name:	YOMIN	OEM/ODM:	Allowed
Model Numbe:	DT-PF96	Accuracy Class:	2.5
Operating Temperature:	- 25℃~ +40℃	Measuring Range:	45Hz - 65Hz
Dimensions:	96 X 96 , 72 X 72
High Light:	electronic watt hour meter , electronic kwh meter

Three Phase Analogue Panel Meters , Selection of Power Factor Meter 96*96 /

Description :

Selection of power factor meter:

Power factor meters are designed for measuring of the phase angle between the current and voltage in single phase or three-phase AC power networks. These meters are calibrated to correspond to the cosine of the angle of i.e. the power factor.

Analogue phase meters desined to measure and extensive reange of electrical and electronic parameters.

Accuracy: Class 2.5
Voltage: Single Phase:110V 220V 380V 440V
Three Phase:110V 220V 380V 440V 500V 600V
current: 1A or 5A

Specification: 0.5cap-1-0.5ind, 0.3cap-1-0.1ind, 0.4cap-1-0.4ind 0.7cap-1-0.2ind

Case:Non-combustile ABS plastic material is used for making external case,and PPO plastic material is used for base; Not suffer deformity under long-term use at 70 and 120 respectively.

Mounting: Flush mounting with bracket.

Specification

Model	Frame size(mm)	Mode	Measuring Range	Class Index	Case Qty.
DT-PF96	96X96	1P	0.5cap-1.0-0.5ind	2.5	60Pcs
DT-PF96	96X96	3P	0.5cap-1.0-0.5ind	2.5	60Pcs
DT-PF722.5	72X72	1P	0.5cap-1.0-0.5ind	2.5	100Pcs
DT-PF72	72X72	3P	0.5cap-1.0-0.5ind	2.5	100Pcs

Note: Please mention the voltage when ordering.

Features

Color:

Black base and frame , white scale plate and meter body.

Pointer:

Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.

Anti-static:

All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of the meters.

Accuracy:

Class2.5

Operating position:

Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.

Insulation Test:

The test Voltage for BE & BP series is 2KV RMS for 1 minute with the frequency 45~65Hz.

Dimension

Three Phase Analogue Panel Meters , Selection of Power Factor Meter 96*96
