Single phase Split Core LV Current Transformers & Ring Core Current Transformer

Name: Single phase Split Core LV Current Transformers & Ring Core Current Transformer
Brand: YOMIN
SKU: YM-SCT-T06
Rating: 4.6 (192 reviews)

Single phase Split Core LV Current Transformers & Ring Core Current Transformer supplier

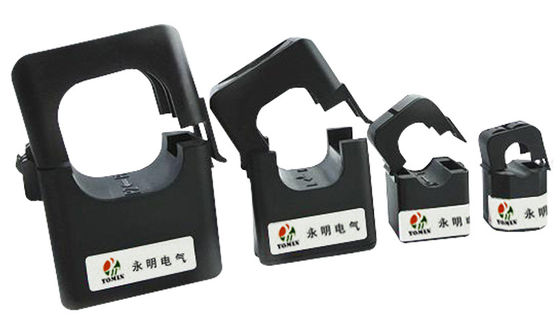

Large Image : Single phase Split Core LV Current Transformers & Ring Core Current Transformer

Product Details:

Place of Origin:	Zhejiang , China ( Mainland )
Brand Name:	YOMIN
Certification:	CE / RoHS
Model Number:	YM-SCT-T06

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiation
Packaging Details:	Export carton , 4 Pieces / Carton
Delivery Time:	5 - 20 working days after received your payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	1000 Pieces Per Week

Contact Now

Detailed Product Description

Coil Structure:	Toroidal	Coil Number:	Autotransformer
Phase:	Single Phase	Current Transformer:	Split Core Current Transformer
Output:	0.333V	Accuracy:	1.0
Frequency:	50/60HZ
High Light:	Low Voltage Current Transformers , High Accuracy Current Transformer

1-1000A CE Split Core Current Transformer & Ring Core Current Transformer

Description :

YM- SCTseries toroidal small transformer split core current transformer usd for AC current measurement,energy metering,submetering applications,which hasSmall size,easy installation,it is safer and portable than other current transformer.

Drawing Size

Model	I.D.	Ratio	Rated Amps	Accuracy
YM-SCT-T06	6mm	1000:1	1, 5,10, 15, 20,	0.5 , 1.0
YM -SCT-T10	10mm	3000:1	5, 15, 30, 50, 75,80	0.5 , 1.0

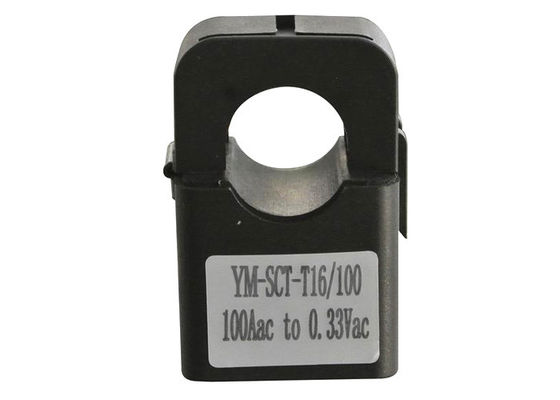

YM -SCT-T16	16mm	3000:1	50, 70, 100, 120	0.5 , 1.0
YM -SCT-T24	24mm	3000:1	100, 150, 200, 300	1.0
YM -SCT-T36	36mm	3000:1	300, 400, 500, 600	1.0
YM -SCT-T50	50mm	3000:1	400,500,600,700,800,900,1000	1.0

Features

Maximum continuous primary current 5A to 5000AC
Current Ratio: 3000: 1
Output: 0.333V, mV or mA.
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized

Application

Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.
