0.333V/mA output Split Core Current Transformer Customized Output and Leads

Name: 0.333V/mA output Split Core Current Transformer Customized Output and Leads
Brand: YOMIN
SKU: YM-SCT-0750/1250/2000/3000
Rating: 4.5 (153 reviews)

0.333V/mA output Split Core Current Transformer Customized Output and Leads supplier

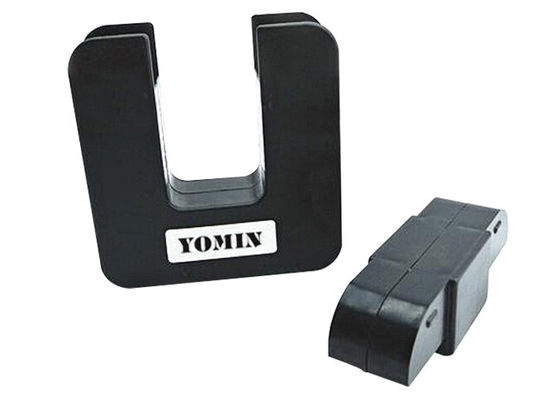

Large Image : 0.333V/mA output Split Core Current Transformer Customized Output and Leads

Product Details:

Place of Origin:	Zhejiang , China ( Mainland )
Brand Name:	YOMIN
Certification:	CE / RoHS
Model Number:	YM-SCT-0750/1250/2000/3000

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiation
Packaging Details:	Export carton , 4 Pieces / Carton
Delivery Time:	5 - 20 working days after received your payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	1000 Pieces Per Week

Contact Now

Detailed Product Description

Coil Structure:	Toroidal	Coil Number:	Autotransformer
Phase:	Single Phase	Current Transformer:	Split Core Current Transformer
Output:	0.333V	Accuracy:	1.0
Frequency:	50/60HZ
High Light:	Low Voltage Current Transformers , High Accuracy Current Transformer

0.333V/mA output Split Core Current Transformer Output and Leads Can Be Customized

Description :

The YM-SCT series of split core current transformers are designed for fast and easy installation.The split
core design permits non-contact current measurements through magnetic field induction without requiring that the
primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable
current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe
low voltage output and permits safe opening of the secondary

Drawing Size

Model	I. D.	Rated Amps	Output	Accuracy	SIZE (mm )
Model	I. D.	Rated Amps	Output	Accuracy	A	B	C	D	E
YM-SCT-0750	0.75" (19.1mm)	5, 15, 30, 50, 70, 100, 150, 200	0.333V	1.0	51.6	54.1	16.6	19.1	18
YM -SCT-1250	1.25" (31.8mm)	70, 100, 150, 200, 250, 300, 400, 600		1.0	82.3	85.3	26.4	32	32.3
YM -SCT-2000	2.00" (50.8mm)	400, 600, 800, 1000, 1200, 1500		1.0	120	125	29.6	52.5	52
YM -SCT-3000	3.00" x 5.00" (76.2mm x127mm)	1000, 1200, 1500, 2000.3000		1.0	145	199	30.5	76	130

0.333V/mA output Split Core Current Transformer Customized Output and Leads

Features

● Rated Current 5A to 3000A loads.
● Rated output: 0.333Vac
● Accuracy:±1% from 5% to 120% of rated current
● Phase Angle: less than 2 degrees at 50% of rated current
● Insulation Voltage:600Vac
● Maximum Primary Voltage:5000Vac(Insulated Conductor)
● Operating Temperature:-15℃to 60℃.
● Frequency Range:50-400Hz
● Leads:4 Foot(105cm),UL 1015,Twisted Pair,
0.34 mm 2 (22AWG)
● UL&ETL ,CE recognized. RoHS Compliant
● Output and leads can be customized

Application
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.
