ZHEJIANG YOMIN ELECTRIC CO.,LTD

Professional Instrumentation Manufacturers

Home
Products
About Us
Factory Tour
Quality Control
Contact Us
Request A Quote
Company News
Home ProductsLV Current Transformers

High Accuracy Split Core LV Current Transformers 1250/5A Class 1.0

Certification
Good quality Ceramic Tile Spacers for sales
Good quality Ceramic Tile Spacers for sales
we received the goods with nice packing and reliable quality, please ship the new order next month earlier. thanks.

—— Mr. ABD HALIM

STS prepaid meter test by our engineer, operation smoothly according to your English Use Manual, Nince cooperation

—— Mr. Rodrigo Araujo

new mould case din rail meter single phase 5(60)A and 3x10(100)A delivered to our authority, they are very satisfied with the new items. will inform the new orders,thanks

—— Mr. Sathyanarayana D

I'm Online Chat Now

High Accuracy Split Core LV Current Transformers 1250/5A Class 1.0

China High Accuracy Split Core LV Current Transformers 1250/5A Class 1.0 supplier
High Accuracy Split Core LV Current Transformers 1250/5A Class 1.0 supplier High Accuracy Split Core LV Current Transformers 1250/5A Class 1.0 supplier High Accuracy Split Core LV Current Transformers 1250/5A Class 1.0 supplier

Large Image :  High Accuracy Split Core LV Current Transformers 1250/5A Class 1.0

Product Details:

Place of Origin: Zhejiang , China ( Mainland )
Brand Name: YOMIN
Certification: CE / RoHS
Model Number: DP series

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Export carton , 4 Pieces / Carton
Delivery Time: 5 - 20 working days after received your payment
Payment Terms: L/C , T/T , Western Union , Paypal
Supply Ability: 1000 Pieces Per Week
Contact Now
Detailed Product Description
Primary Current: 100A-5000A Secondary Current: 5A, 1A
Phase: Single Phase Max System Voltage: 720V AC
Frequency: 50/60Hz Short-time Thermal Current: Ith=100×In
Rated Security Coefficient: FS<5 Class: 0.5, 1.0, 3.0

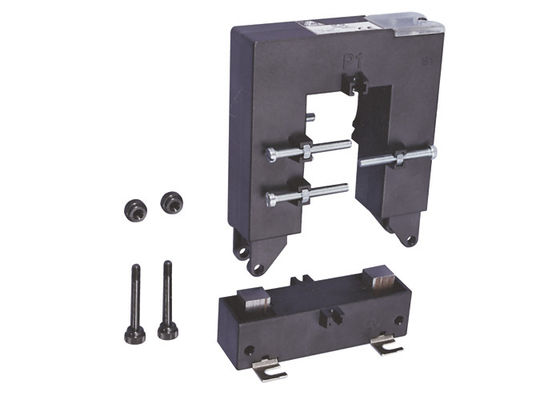

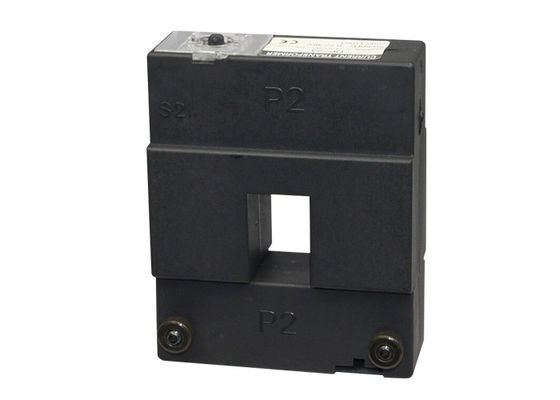

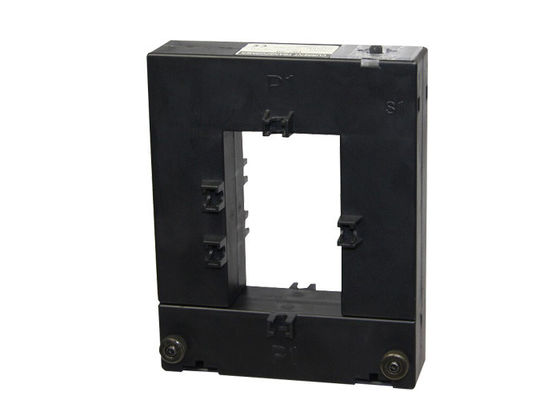

1250/5A Class 1.0 High Accuracy Split Core Current Transformer with CE Approval



Description :

The DP series of current transformers have been especially designed to facilitate their installation in new or already existing networks. Thanks to its split core they may be installed without opening any cable or bus bar circuit.
The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bus bars through the transformer core or to connect such cables to the primary terminals. The DP series transformers core may be easily opened and they may be installed and connected without any supply interruption, thus saving time and installation costs.

The main features of DP transformers are:

-Small size and easy mounting
-Wide inner window, allowing clamping of big cables or bus bars
-Wide range of sizes to accomodate all the existing installations
-High accuracy and reliability



Selection of the Current Transformer

To select the current transformer correctly, the following points should be clarified:

- The application (for measuring or protection).

- The features of the working environment (Indoor or outdoor, operating temperature, air humidity etc….).

- Operation voltage and frequency.

- Range of the primary current (maximum and minimum of the current to be measured).

- Dimension of the cable or Bus bar.

- Data of the overload.

- Short circuit current.

- Specification of the measuring device associated with the current transformer (Accuracy, rated current, consumption etc…).

- The diameter and length of the cable, the cable which is used to connect the current transformer and associated measuring device.



Specifications
Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:
100A-5000A
5A, 1A
IEC44-1, BS7626
0.72/3kV
50/60Hz
1VA-30VA
0.5, 1.0, 3.0
Ith=100×In
FS<5
Model
Nominal
current ratio

Class:0.5
VA
DP-23
100
-
150
-
200
-
250
-
300



1.5
400
2.5
DP-58
250
1.5
300
1.5
400
1.5
500
2.5
600
2.5
750
2.5
800
2.5
1000
5
DP-88
250
1.5
300
1.5
400
1.5
500
2.5
600
2.5
750
2.5
800
2.5
1000
5
DP-812
500
2.5
600
2.5
750
2.5
800
2.5
1000
6
1200
6
1250
7.5
1500
7.5
DP-816
1000
1.
1500
15
2000
15
2500
15
3000
20
4000
20
5000
20



Dimension

Model A B C D E F G H I
DP-23 20 30 51 89 111 34 47 40 32
DP-58 50 80 78 114 145 32 32 32 33
DP-88 80 80 108 144 145 32 32 32 33
DP-812 80 120 108 144 185 32 32 32 33
DP-816 80 120 120 184 245 52 47 52 38

High Accuracy Split Core LV Current Transformers 1250/5A Class 1.0





Contact Details
ZHEJIANG YOMIN ELECTRIC CO.,LTD

Contact Person: Linda Cai

Tel: +8613968745210

Send your inquiry directly to us (0 / 3000)
