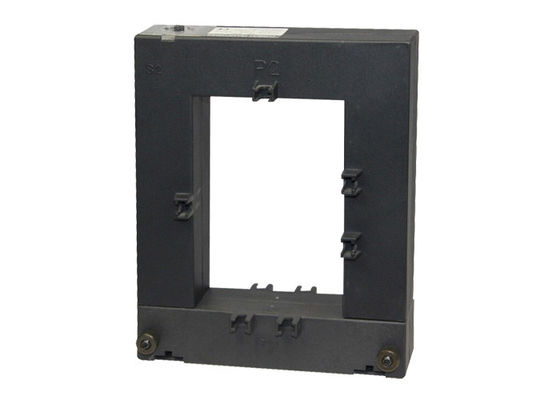

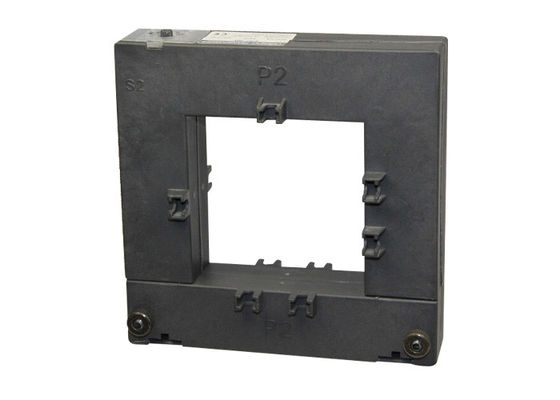

1250/5A Class 1.0 High Accuracy Split Core Current Transformer with CE Approval
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Primary Current: | 100A-5000A | Secondary Current: | 5A, 1A |
|---|---|---|---|
| Measuring Range: | 10%In-120%In | Rated Output: | 0-5A |
| Frequency: | 50-400Hz | Phase Angle: | ≤ ±30min |
| Dielectric Strangth: | 2.5KV/1mA/1min | Core: | Silicon Steel |
| High Light: | Low Voltage Current Transformers,High Accuracy Current Transformer |
||
1250/5A Class 1.0 High Accuracy Split Core Current Transformer with CE Approval
Description :

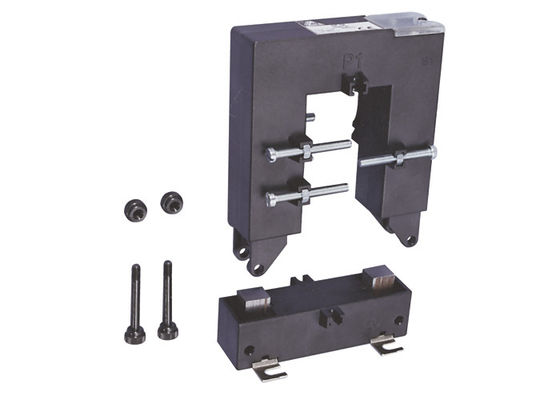

The DP series of current transformers have been especially designed to facilitate their installation in new or already existing networks. Thanks to its split core they may be installed without opening any cable or bus bar circuit.
range of split core current transformers have been designed to easily fit around cables without breaking the circuit.Its advantages of big capacity and big mounting hole size,could be used in more power applications.DP was global used in most power applications.
Feature:
1:Double-screw fastening, safe, easy to install, portable.
2:Two built in fixing methods:Base;Busbar mounting
3:Wide inner window, allowing clamping of big cables or bus-bars.
4:Wide range of sizes to accommodate all the existing installations.
5:Primary current from 5A to 5000A.
Advantage:
1: Current measurement, monitoring and protection for electrical wiring and equipment.
2: Current and power measurement for electric motors, lighting, air compressor, heating
and ventilation system, air-condition equipment and automation - control system.
3: Current, power and energy monitoring device.
4: Relay protection device.
STANDARD:
IEC6044-1, EN60044-1, VDE0414-44-1, GB1208-2006
Specifications
| Electrical Parameter | Mechanical Parameter | ||
| Frequency | 50-400Hz | Case | PC/UL94-V0 |
| Rated Input | 5A-5000A | Bobbin | PBT |
| Measuring range | 10%In-120%In | Core | Silicon steel |
| Rated Output | 0-5A | Internal structure | Epoxy |
| Ratio | ≤ ± 0.5% | Construction | Tie |
| Phase angle | ≤ ±30min | Operation Temp | -25oC~+75oC |
| Dielectric strangth | 2.5KV/1mA/1min | Operating Humidity | ≤85% |
| Insulation Resistance | DC500V/100MΩ min | Output Connection | Terminal |
|
Model
|
Nominal
current ratio |
|
|
Class:0.5
|
||
|
VA
|
||
|
DP-23
|
100
|
-
|
|
150
|
-
|
|
|
200
|
-
|
|
|
250
|
-
|
|
|
300
|
1.5
|
|
|
400
|
2.5
|
|
|
DP-58
|
250
|
1.5
|
|
300
|
1.5
|
|
|
400
|
1.5
|
|
|
500
|
2.5
|
|
|
600
|
2.5
|
|
|
750
|
2.5
|
|
|
800
|
2.5
|
|
|
1000
|
5
|
|
|
DP-88
|
250
|
1.5
|
|
300
|
1.5
|
|
|
400
|
1.5
|
|
|
500
|
2.5
|
|
|
600
|
2.5
|
|
|
750
|
2.5
|
|
|
800
|
2.5
|
|
|
1000
|
5
|
|
|
DP-812
|
500
|
2.5
|
|
600
|
2.5
|
|
|
750
|
2.5
|
|
|
800
|
2.5
|
|
|
1000
|
6
|
|
|
1200
|
6
|
|
|
1250
|
7.5
|
|
|
1500
|
7.5
|
|
|
DP-816
|
1000
|
1.
|
|
1500
|
15
|
|
|
2000
|
15
|
|
|
2500
|
15
|
|
|
3000
|
20
|
|
|
4000
|
20
|
|
|
5000
|
20
|
Dimension
| Model | A | B | C | D | E | F | G | H | I |
| DP-23 | 20 | 30 | 51 | 89 | 111 | 34 | 47 | 40 | 32 |
| DP-58 | 50 | 80 | 78 | 114 | 145 | 32 | 32 | 32 | 33 |
| DP-88 | 80 | 80 | 108 | 144 | 145 | 32 | 32 | 32 | 33 |
| DP-812 | 80 | 120 | 108 | 144 | 185 | 32 | 32 | 32 | 33 |
| DP-816 | 80 | 120 | 120 | 184 | 245 | 52 | 47 | 52 | 38 |
