Watt Hour Meter Current Transformer & Busbar Mounting Split Core Current Transformer

Name: Watt Hour Meter Current Transformer & Busbar Mounting Split Core Current Transformer
Brand: YOMIN
SKU: YM-SCT-0750/1250/2000/3000
Rating: 4.5 (110 reviews)

Watt Hour Meter Current Transformer & Busbar Mounting Split Core Current Transformer supplier

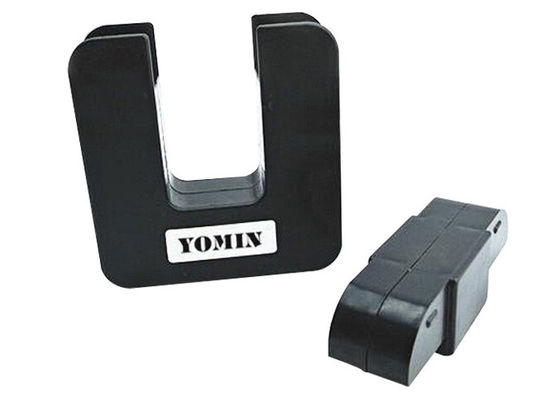

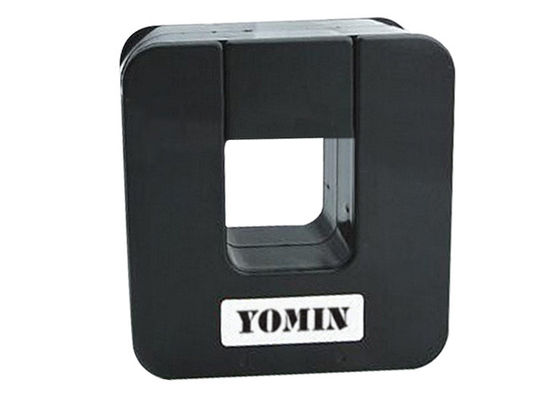

Large Image : Watt Hour Meter Current Transformer & Busbar Mounting Split Core Current Transformer

Product Details:

Place of Origin:	Zhejiang , China ( Mainland )
Brand Name:	YOMIN
Certification:	CE / RoHS
Model Number:	YM-SCT-0750/1250/2000/3000

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiation
Packaging Details:	Export carton , 4 Pieces / Carton
Delivery Time:	5 - 20 working days after received your payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	1000 Pieces Per Week

Contact Now

Detailed Product Description

Coil Structure:	Toroidal	Coil Number:	Autotransformer
Phase:	Single Phase	Current Transformer:	Split Core Current Transformer
Output:	0.333V	Accuracy:	1.0
Frequency:	50/60HZ
High Light:	Low Voltage Current Transformers , High Accuracy Current Transformer

Watt Hour Meter Current Transformer & Busbar Mounting Split Core Current Transformer

Description :

The YM-SCT series of split core current transformers are designed for fast and easy installation.The split
core design permits non-contact current measurements through magnetic field induction without requiring that the
primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable
current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe
low voltage output and permits safe opening of the secondary

Specification

Model	SCT series
Current Ratio	200A/40mA	300A/60mA	400A/40mA	600A/60mA	400A/0.333V
Primary Current (A)	200A	300A	400A	600A	400A
Max. Current (A)	240A	360A	480A	720A	480A
Output	40mA	60mA	40mA	60mA	0.333V
Load Resistance (Ω)	50Ω	50Ω	50Ω	25Ω	/
Turns Ration	5000:1	5000:1	10000:1	10000:1	/
Class	1.0	1.0	1.0	1.0	1.0
Protection Level	7.5V0-P
Insuliation Category	CATIII
Operating Condition	-20℃ ~ +50℃, ≤85%RH, No condensation, IN-house & Any direction installable
Storage Condition	-30℃ ~ +50℃, ≤85%RH, No condensation

Note: The Current Ratio above are common type, that's ok to customise the ration according tocustomers' requirement.

Features

1) Split core design, safe, easy to install, portable.

2) Wide inner window, allowing clamping of big cables or bus-bars

3) Wide range of sizes to accommodate all the existing installations

4) Wires plugs, Audio plugs, Power plugs and so on five kinds of plugs

Drawing Size

Model	I. D.	Rated Amps	Output	Accuracy	SIZE (mm )
Model	I. D.	Rated Amps	Output	Accuracy	A	B	C	D	E
YM-SCT-0750	0.75" (19.1mm)	5, 15, 30, 50, 70, 100, 150, 200	0.333V	1.0	51.6	54.1	16.6	19.1	18
YM -SCT-1250	1.25" (31.8mm)	70, 100, 150, 200, 250, 300, 400, 600		1.0	82.3	85.3	26.4	32	32.3
YM -SCT-2000	2.00" (50.8mm)	400, 600, 800, 1000, 1200, 1500		1.0	120	125	29.6	52.5	52
YM -SCT-3000	3.00" x 5.00" (76.2mm x127mm)	1000, 1200, 1500, 2000.3000		1.0	145	199	30.5	76	130
