2000/5A Class 1.0 Split Core LV Current Transformers for Metering

China 2000/5A Class 1.0 Split Core LV Current Transformers for Metering supplier
2000/5A Class 1.0 Split Core LV Current Transformers for Metering supplier 2000/5A Class 1.0 Split Core LV Current Transformers for Metering supplier

Large Image :  2000/5A Class 1.0 Split Core LV Current Transformers for Metering

Product Details:

Place of Origin: Zhejiang , China ( Mainland )
Brand Name: YOMIN
Certification: CE / RoHS
Model Number: DP series

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Export carton , 4 Pieces / Carton
Delivery Time: 5 - 20 working days after received your payment
Payment Terms: L/C , T/T , Western Union , Paypal
Supply Ability: 1000 Pieces Per Week
Contact Now
Detailed Product Description
Primary Current: 100A-5000A Secondary Current: 5A, 1A
Phase: Single Phase Max System Voltage: 720V AC
Frequency: 50/60Hz Rated Security Coefficient: FS<5
Standard Approval: IEC44-1, BS7626 Maximum Voltage: 0.72/3kV

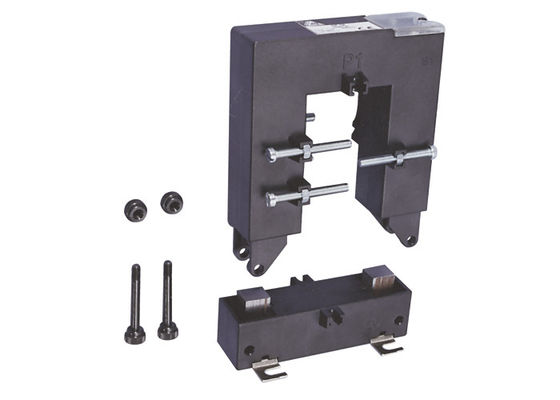

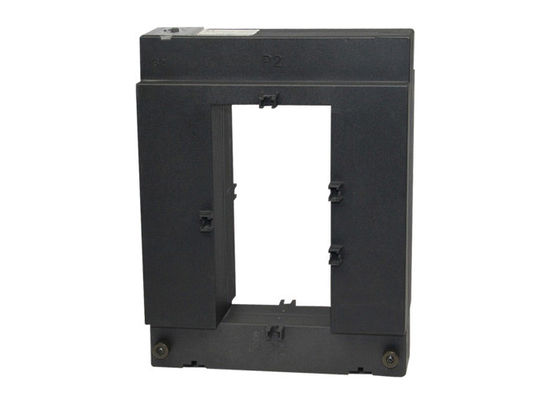

2000/5A Class 1.0 DP series Split Core Current Transformer for Metering



Description :

The DP series of current transformers have been especially designed to facilitate their installation in new or already existing networks. Thanks to its split core they may be installed without opening any cable or bus bar circuit.
The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bus bars through the transformer core or to connect such cables to the primary terminals. The DP series transformers core may be easily opened and they may be installed and connected without any supply interruption, thus saving time and installation costs.

The main features of DP transformers are:

-Small size and easy mounting
-Wide inner window, allowing clamping of big cables or bus bars
-Wide range of sizes to accomodate all the existing installations
-High accuracy and reliability



 features

- Small size and easy mounting
- Wide inner window, allowing clamping of big cables or bus bars
- Wide range of sizes to accomodate all the existing installations
- High accuracy and reliability



Specifications



Item Current Ratio Rated Burden (VA) Case Qty.
Model (A) Class: 0.5 Class: 1.0 (Pcs)
DP-816 1000/5 5 10 5
1500/5 7.5 10 5
2000/5 10 10 5
2500/5 15 20 5
3000/5 20 25 5
4000/5 20 25 5
5000/5 20 25 5


Dimension

Model A B C D E F G H I
DP-23 20 30 51 89 111 34 47 40 32
DP-58 50 80 78 114 145 32 32 32 33
DP-88 80 80 108 144 145 32 32 32 33
DP-812 80 120 108 144 185 32 32 32 33
DP-816 80 120 120 184 245 52 47 52 38

2000/5A Class 1.0 Split Core LV Current Transformers for Metering
