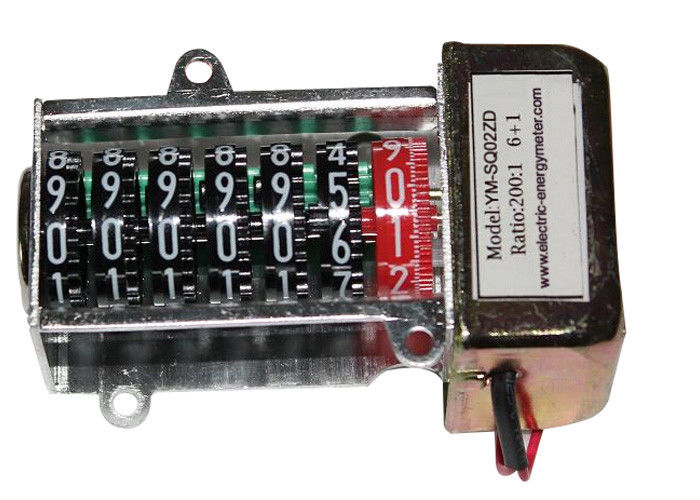

Mechanical Stepper Motor Counter Register & Electromagnetic Counter For kWH Energy

Name: Mechanical Stepper Motor Counter Register & Electromagnetic Counter For kWH Energy
Brand: YOMIN
SKU: YM-SQ02ZD
Rating: 4.9 (107 reviews)

Mechanical Stepper Motor Counter Register & Electromagnetic Counter For kWH Energy supplier

Large Image : Mechanical Stepper Motor Counter Register & Electromagnetic Counter For kWH Energy

Product Details:

Place of Origin:	China
Brand Name:	YOMIN
Certification:	CE/ROHS
Model Number:	YM-SQ02ZD

Payment & Shipping Terms:

Minimum Order Quantity:	1000pc
Price:	negotiation
Packaging Details:	standard export carton
Delivery Time:	5-30 working days after receiving payment
Payment Terms:	T/T or western Union, L/C, D/A, D/P, T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Model Number:	YM-SQ02ZD	Display:	6+1 Or 5+1
Material:	Plastic	Applications:	For KWH Meter
ODM/OEM:	Welcome
High Light:	electric Meter Accessories , electric Meter parts

Mechanical Stepper Motor Counter Register & Electromagnetic Counter For kWH Energy

Product Description

It's the key display part for electronic electricity meters.
All of our counters will be inspected and calibrated completed according to your drawings and requirements after finishing production to ensure all of them are qualified.
We can produce various counters from plastic frame to aluminum frame and also can produce counters specially according to your own designs.
Any suggestions and feedback you might have will be highly appreciated, our valued customers.

Specification

1,Rate voltage:3.5-6v.
2,Coil resistance:450±50ohm
3,Ratio:200:1(option)
4,Pulse width:60-180ms.
5,Motor driving torque:30Nm.
6,Digits:5+1 or 6+1.
7,Color digits: white complete digit
and red decimal digits black
ground.
8,Material wheels:polyester of super
quality thermoplastic.
9,Movement of digits:uni-directional
movement only.
10,Wire length:110mm(option)
11,Temperature range:-40℃~+80℃
12,Magnetic shielding(Option)

Mainly using for:
1) Multi-funcational energy meter
2) Prepayment energy meter
3) Reactive energy meter
4) Watt-hour meter
5) Multi-rate watt-hour meters
6) Maximum demand energy meter.
7) Standard electric energy meter
8) Meter for industry and home use.
Notes: This is model mainly export India, Russian, Urkrian and Poland. Welcome to contact with us if you want, Thank you for your attention.
