High Accuracy Split Core Current Transformer Bus Bar Type 1000/5A

Name: High Accuracy Split Core Current Transformer Bus Bar Type 1000/5A
Brand: YOMIN
SKU: DP series
Rating: 4.6 (177 reviews)

High Accuracy Split Core Current Transformer Bus Bar Type 1000/5A supplier

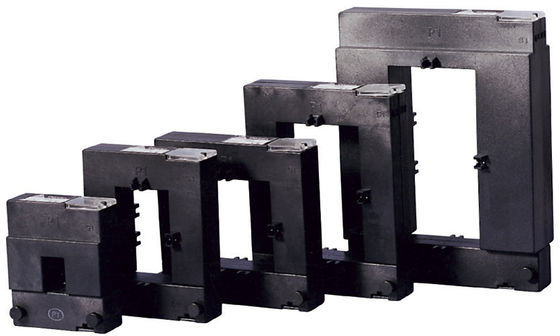

Large Image : High Accuracy Split Core Current Transformer Bus Bar Type 1000/5A

Product Details:

Place of Origin:	Zhejiang , China ( Mainland )
Brand Name:	YOMIN
Certification:	CE / RoHS
Model Number:	DP series

Payment & Shipping Terms:

Minimum Order Quantity:	50 Piece
Price:	Negotiation
Packaging Details:	Export carton , 4 Pieces / Carton
Delivery Time:	5 - 20 working days after received your payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	1000 Pieces Per Week

Contact Now

Detailed Product Description

Primary Current:	100A-5000A	Secondary Current:	5A, 1A
Phase:	Single Phase	Max System Voltage:	720V AC
Frequency:	50/60Hz	Burden:	2.5VA ~ 30VA
Coil Structure::	Toroidal	Class:	0.5 1.0 0.2 0.5S
High Light:	Split Core Current Transformer , High Accuracy Current Transformer

High Precision DP Series Split Core Current Transformer Clamp On Current Transformer

Description :
DP range of split core current transformers have been designed to easily fit around cables without breaking the
circuit.Its advantages of big capacity and big mounting hole size,could be used in more power applications.DP was
global used in most power applications.

Feature:
1. All the cases are made of polycarbonated materials, not nelyon material case,
so the temperature endurence is much higher;
2. All the cores are made of imported highest quality silicon iron sheet,
so the core's magnetic performance is much higher;
3. All the parameters are double cross-checked, so the testing results is much ensured!

Advantage:
1: Current measurement, monitoring and protection for electrical wiring and equipment.
2: Current and power measurement for electric motors, lighting, air compressor, heating
and ventilation system, air-condition equipment and automation - control system.
3: Current, power and energy monitoring device.
4: Relay protection device.

Specifications

Electrical Parameter		Mechanical Parameter
Frequency	50-400Hz	Case	PC/UL94-V0
Rated Input	5A-5000A	Bobbin	PBT
Measuring range	10%In-120%In	Core	Silicon steel
Rated Output	0-5A	Internal structure	Epoxy
Ratio	≤ ± 0.5%	Construction	Tie
Phase angle	≤ ±30min	Operation Temp	-25oC~+75oC
Dielectric strangth	2.5KV/1mA/1min	Operating Humidity	≤85%
Insulation Resistance	DC500V/100MΩ min	Output Connection	Terminal

Product	MODEL	Ratio	Burden(VA)Accuracy		Frequency(Hz)
Product	MODEL	Ratio	0.5	1.0	Frequency(Hz)
	DP-816	1000/5A	5VA	10VA	50/60Hz
		1200/5A	7.5VA	10VA	50/60Hz
		1500/5A	7.5VA	10VA	50/60Hz
		1600/5A	10VA	10VA	50/60Hz
		2000/5A	10VA	15VA	50/60Hz
		2500/5A	10VA	20VA	50/60Hz
		3000/5A	20VA	25VA	50/60Hz
		4000/5A	20VA	25VA	50/60Hz
		5000/5A	20VA	25VA	50/60Hz
