Standard Sillicon Steel Core Single Phase LV Current Transformers Toroidal

China Standard Sillicon Steel Core Single Phase LV Current Transformers Toroidal supplier
Standard Sillicon Steel Core Single Phase LV Current Transformers Toroidal supplier Standard Sillicon Steel Core Single Phase LV Current Transformers Toroidal supplier Standard Sillicon Steel Core Single Phase LV Current Transformers Toroidal supplier

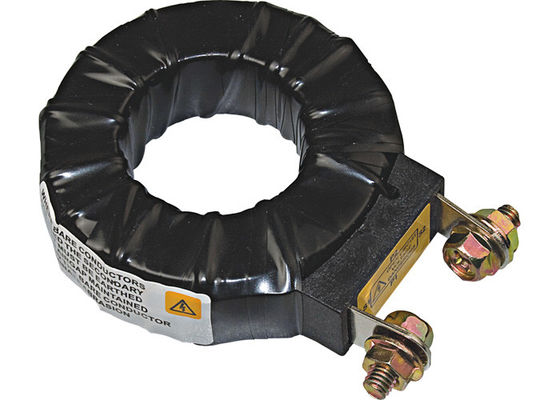

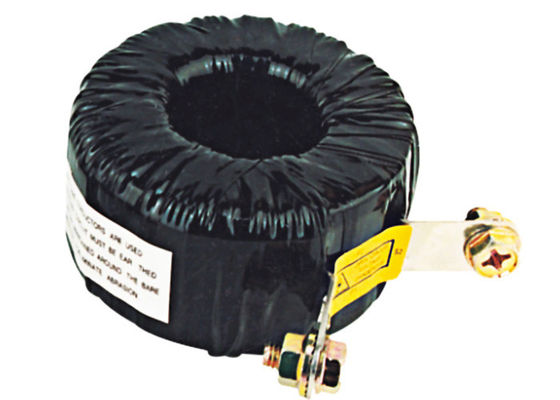

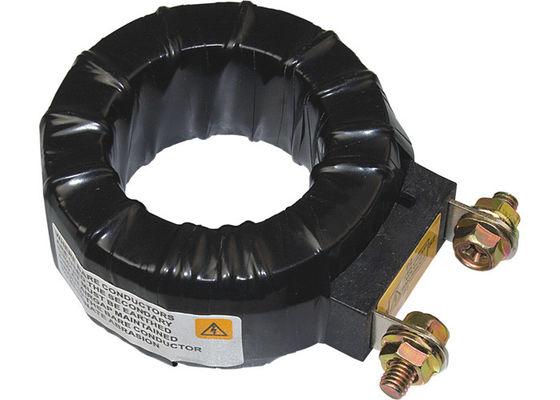

Large Image :  Standard Sillicon Steel Core Single Phase LV Current Transformers Toroidal

Product Details:

Place of Origin: Zhejiang , China ( Mainland )
Brand Name: YOMIN
Certification: CE / RoHS
Model Number: MR series

Payment & Shipping Terms:

Minimum Order Quantity: 50 Piece
Price: Negotiation
Packaging Details: Export carton , 4 Pieces / Carton
Delivery Time: 5 - 20 working days after received your payment
Payment Terms: L/C , T/T , Western Union , Paypal
Supply Ability: 1000 Pieces Per Week
Contact Now
Detailed Product Description
Primary Current: 100A-5000A Secondary Current: 5A, 1A
Phase: Single Phase Coil Number: Autotransformer
Frequency: 50/60Hz Burden: 2.5VA ~ 30VA
Coil Structure:: Toroidal Rated Security Coefficient: Fs<5

High Precision DP Series Split Core Current Transformer Clamp On Current Transformer



Description :

MR model Current Transformer is A range of (6 standard silicon steel core models) tape

wrapping current transformer, low cost, widely used in southeast Asia. It can be used with or

without foot and plastic cover.



Advantage:

1. Small size,
2. high accuracy,
3.good consistency,
4. for current and power measurement



Specifications
Primary current: 30A-5000A
Secondary current: 5A, 1A
Standard approval: BS7626, IEC185
Maximum voltage: 0.72KV
Frequency: 50-60Hz
Rated load: 5VA-15VA
Class: 1.0, 3.0
Short-time thermal current: Lth=60xlh
Rated security coefficient: Fs<5

Dimension(mm):
Model Specification ID OD HT
MR-28 30/5A-60/5A 28 70 40
MR-42 100/5A-250/5A 42 80 30
MR-45 300/5A 45 80 30
MR-60 400/5A 60 100 30
MR-60 500/5A-600/5A 60 100 30
MR-85 800/5A-1600/5A 85 120 20
MR-125 2000/5A 125 165 20
