Round Type 1200/5A low voltage LV Current Transformers Single phase

Name: Round Type 1200/5A low voltage LV Current Transformers Single phase
Brand: YOMIN
SKU: MR series
Rating: 4.5 (141 reviews)

Round Type 1200/5A low voltage LV Current Transformers Single phase supplier

Large Image : Round Type 1200/5A low voltage LV Current Transformers Single phase

Product Details:

Place of Origin:	Zhejiang , China ( Mainland )
Brand Name:	YOMIN
Certification:	CE / RoHS
Model Number:	MR series

Payment & Shipping Terms:

Minimum Order Quantity:	50 Piece
Price:	Negotiation
Packaging Details:	Export carton , 4 Pieces / Carton
Delivery Time:	5 - 20 working days after received your payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	1000 Pieces Per Week

Contact Now

Detailed Product Description

Primary Current:	100A-5000A	Secondary Current:	5A, 1A
Phase:	Single Phase	Rated Voltage:	0.72Kvac
Burden (VA):	Less 20	Burden:	2.5VA ~ 30VA
Coil Structure::	Toroidal	Rated Security Coefficient:	Fs<5
High Light:	Low Voltage Current Transformers , High Accuracy Current Transformer

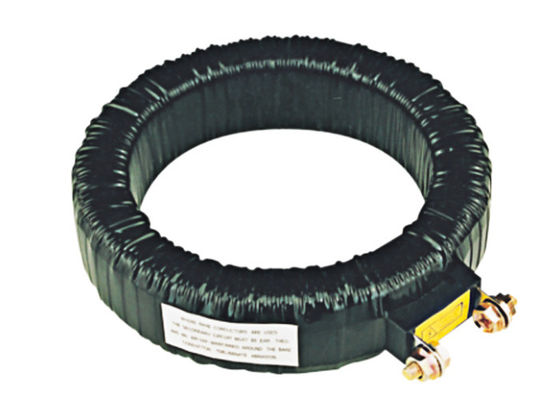

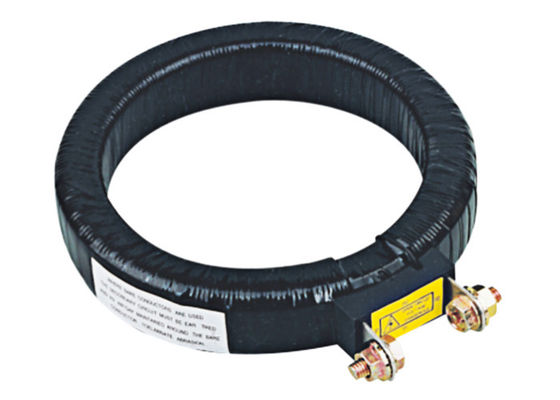

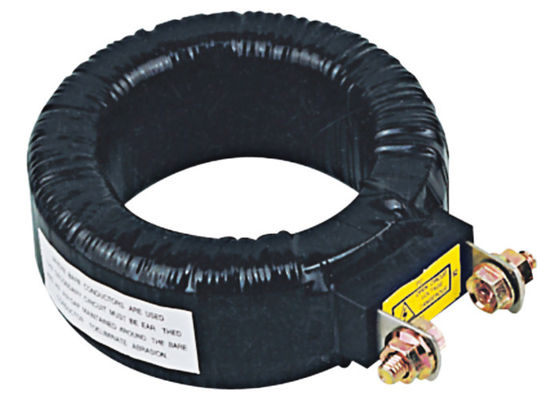

Round Type MR-125 type 1200/5A Current Transformer Without Foot and Plastic Cover

Description :

MR model Current Transformer is A range of (6 standard silicon steel core models) tape

wrapping current transformer, low cost, widely used in southeast Asia. It can be used with or

without foot and plastic cover.

Advantage:

MODEL:MR-28,MR-42,MR-45,MR-60,MR-85,MR-125.

Class:0.5 1.0 3.0
Good quality and best price

Specifications

1.Model: MR-28,MR-42,MR-60,MR-85,MR-125

2.Electric Ratings: AC 50-60Hz, ≤0.72KV, 1th=60×1h

3.Primary Current:30A-5000A

4.Secondary Current: 5A,1A

5.Rated Burden: 5VA-15VA

5.Accuracy Class: 3.0,1.0,0.5,

6.Standard: IEC44-1,BS7626,IEC185

7.Mounting Modes: Busbar or buttom plate fixing to any direction

8.Rated Security Coefficient: FS<5

8.Ceritificate: CE,ISO9001:2000

Dimension(mm):

Model	Specification	ID	OD	HT
MR-28	30/5A-60/5A	28	70	40
MR-42	100/5A-250/5A	42	80	30
MR-45	300/5A	45	80	30
MR-60	400/5A	60	100	30
MR-60	500/5A-600/5A	60	100	30
MR-85	800/5A-1600/5A	85	120	20
MR-125	2000/5A	125	165	20
