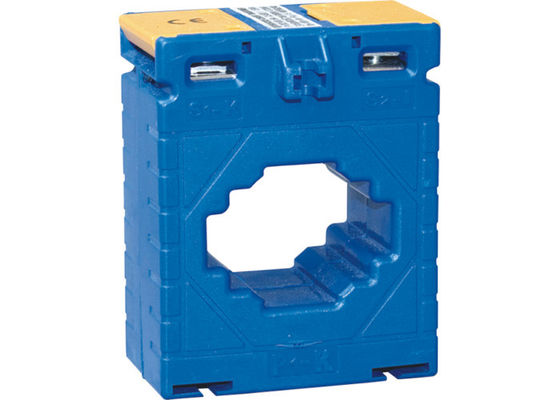

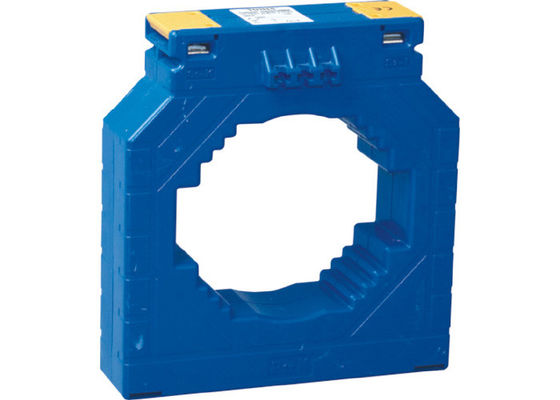

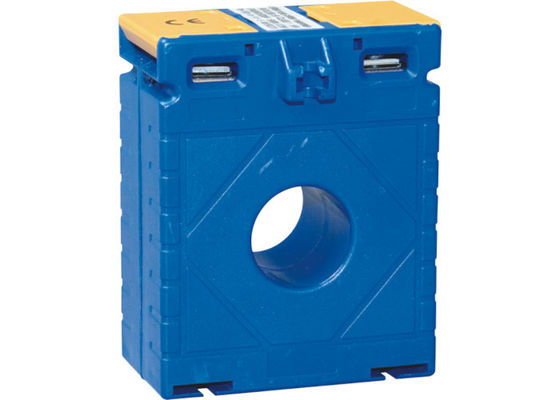

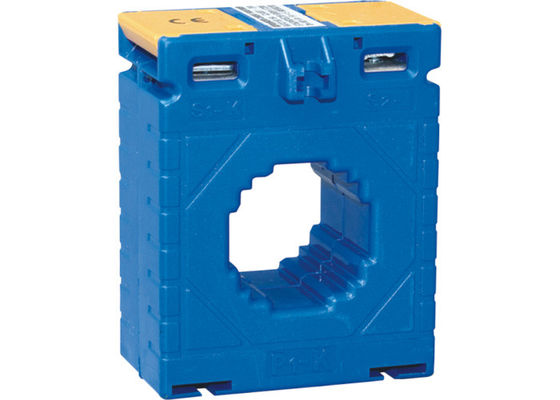

Compact design Low Voltage LV Current Transformers for Electronic

Name: Compact design Low Voltage LV Current Transformers for Electronic
Brand: YOMIN
SKU: MES series
Rating: 4.8 (151 reviews)

Compact design Low Voltage LV Current Transformers for Electronic supplier

Large Image : Compact design Low Voltage LV Current Transformers for Electronic

Product Details:

Place of Origin:	Zhejiang , China ( Mainland )
Brand Name:	YOMIN
Certification:	CE / RoHS
Model Number:	MES series

Payment & Shipping Terms:

Minimum Order Quantity:	50 Piece
Price:	Negotiation
Packaging Details:	Export carton , 4 Pieces / Carton
Delivery Time:	5 - 20 working days after received your payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	1000 Pieces Per Week

Contact Now

Detailed Product Description

Primary Current:	100A-5000A	Secondary Current:	5A, 1A
Usage:	Electronic	Key World:	Zero Phase Ct
Coil Structure:	Toroidal	Burden:	2.5VA ~ 30VA
Rated Voltage:	0.66kv And Below	Rated Security Coefficient:	Fs<5
High Light:	Low Voltage Current Transformers , High Accuracy Current Transformer

200/5A class 0.5 Function Of Current Transformer / MES Low Voltage CT

Description :

The MES series of current transformer are convenient for mounting in many ways.The mostcurrent transformer need the special mounting and the MES series used the mounting of DIN typing without a lot of times.The protective cover for terminal block used the switching device with safety and quick.

Features:

Three built in fixing methods: Panel/Din Rail/Busbar

Built in hinged terminal cover

Compact design

Primary current from 5A to 3000A

Main Thecnical:

Rated Frequency: 50/60Hz

Rated Test voltage: 3kv AC(1min)

Rated short-time thermal current(Ith): 60In

Rated dynamic current(Idyn): 2.5Ith

Rated voltage (Um): 0.72Kv AC.

Continuous overload(Id): 1.2In

Operating Temp.: -10~+50℃

Housing self-extinguishing class: VO

Safety factor: FS5

Secondary Current: 5A/1A

Model	Rated Current(A) Primary/Secondary	Busbar Hole Dimension	Rated Burden(VA)	Accuracy Class	Rated Voltage(V)	Rated Frequency (Hz)
MES-62/30	30/5A-300/5A	30×10mm	2.5-5	1.0~0.5	720	50/60
MES-62/40	150/5A-600/5A	40×10mm	5	1.0~0.5	720	50/60
MES-30	30/5A-300/5A	30×10mm	2.5-5	1.0~0.5	720	50/60
MES-40	100/5A-600/5A	40×10mm	2.5-5	1.0~0.5	720	50/60
MES100	800/5A-3000/5A	100×30mm	10-30	5~20	720	50/60

Dimensions (mm)

Model	A	B	C	D	E	F	G
MES-62/20	81	47	20	35	77	20	62
MES-62/30	81	47	30	35	77	31	62
MES-62/40	81	47	30	35	77	41	62
MES-80/30	88	52	30	41	77	31	80
MES-80/40	88	52	30	41	77	41	80
MES-100/60	117	57	50	184	77	61	101
