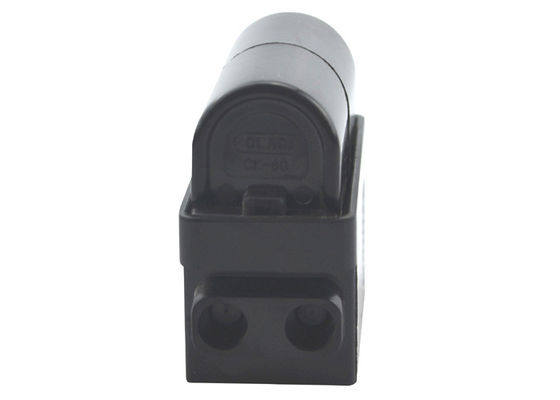

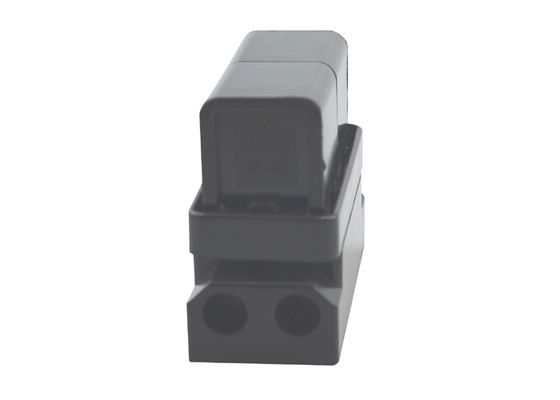

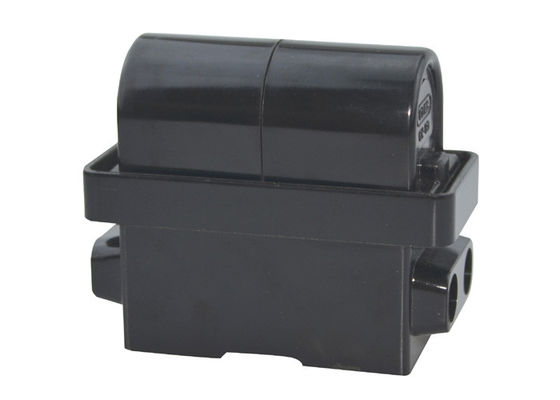

415V Bakelite House Service Cut-Out Low Voltage With CE Approved

China 415V Bakelite House Service Cut-Out Low Voltage With CE Approved supplier
415V Bakelite House Service Cut-Out Low Voltage With CE Approved supplier 415V Bakelite House Service Cut-Out Low Voltage With CE Approved supplier 415V Bakelite House Service Cut-Out Low Voltage With CE Approved supplier

Large Image :  415V Bakelite House Service Cut-Out Low Voltage With CE Approved

Product Details:

Place of Origin: Zhejiang , China ( Mainland )
Brand Name: YOMIN
Certification: CE / RoHS
Model Number: cutout fuse

Payment & Shipping Terms:

Minimum Order Quantity: 10 Piece
Price: Negotiation
Packaging Details: Export carton , 1 Piece / Carton
Delivery Time: 5 - 20 working days after received your payment
Payment Terms: L/C , T/T , Western Union , Paypal
Supply Ability: 1000 Pieces Per Week
Contact Now
Detailed Product Description
Type: Cut Out Fuse Usage: Low Voltage
Breaking Capacity: High Safety Standards: IEC
Material: Bakelite, Brass Main Color: White Or Black
Rated Voltage: 415V AC Current Rating: 60A, 80A, 100A

415V Bakelite House Service Cut-Out (SP-SPN) With CE Approved



Product Description :
We hold a strong position in the House Service Cut-Out (SP-SPN) and allied products market. Our organization best utilizes its resources and manpower in designing a beneficial range of House Service Cut-Out (SP-SPN) for enabling cooling in installations. This premium device thus assist in reducing fuse switch strain.



Features :
  • House Service Cutout Design Totally Insulated.
  • Cut Out Fuse Are Made Of High Grade Phenolic Moulding Powder Having High Mechanical And Dielectric Strength.
  • The Body Possesses Non-Hygroscopic and Non-Tracking Qualities.
  • Terminal Contracts Are Of Tinned Brass, Phosphor Bronze Back Up Compression Spring Capable Of Providing Flawless Service Even After Years Of Use.
  • All Components Are Inter-Locked
  • Sealing Provision To Avoid Unauthorized Access
  • Common Body from 15amps to 100amps.
  • Terminal Are Suitable For Aluminum/Copper Conductors Up to 35sq. Mm Loop In And Loop Out Cabling Contacts Available.
  • Easy Fuse Replacement
  • Clip Spring In The Fuse Clip Ensures High Pressure Contact And Wipping Action Ensures Low Resistance With TIN Plated Base Contact.
  • Available in Color: Black, Grey & As per requirement

Working condition:

  •  enviroment temperature is -5 degree~+40 degree.
  • The average temperature in 24 hours shall not exceed +35 degree
  • The altitude of the installation shall not exceed 2000m.
  • The relative humidity shall not exceed 50% when the enviromental temperature is +40 degree.The relative humidity maybe higher at lower temperature condition. The maximun month-average relative humidity is 90% in the most humid month,with a minimun month average temperature +25 degree. The factor that dew may occur on the product surface due to temperature change shall be taken intp consideration.
  • Pollution grade:Grade III.
  • Installation class:III
  • The product shall be installed and operated at a place without obvious shake, impact and vibration.

Fuse Link:

415V Bakelite House Service Cut-Out Low Voltage With CE Approved
