DNTRS 250A 3P NH strip type HRC fuse holder , 3P busbar Fuse Switch Disconnector

Name: DNTRS 250A 3P NH strip type HRC fuse holder , 3P busbar Fuse Switch Disconnector
Brand: YOMIN
SKU: Fuse Switch Disconnector
Rating: 4.9 (102 reviews)

DNTRS 250A 3P NH strip type HRC fuse holder , 3P busbar Fuse Switch Disconnector supplier

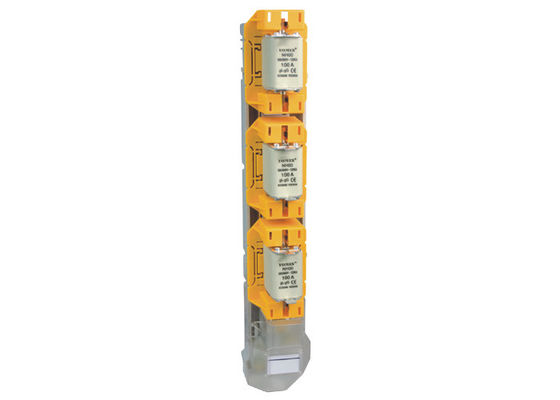

Large Image : DNTRS 250A 3P NH strip type HRC fuse holder , 3P busbar Fuse Switch Disconnector

Product Details:

Place of Origin:	Zhejiang , China ( Mainland )
Brand Name:	YOMIN
Certification:	CE / RoHS
Model Number:	Fuse Switch Disconnector

Payment & Shipping Terms:

Minimum Order Quantity:	10 Piece
Price:	Negotiation
Packaging Details:	Export carton , 1 Piece / Carton
Delivery Time:	5 - 20 working days after received your payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	1000 Pieces Per Week

Contact Now

Detailed Product Description

Type:	Fuse Holder	Pole Quantity::	3 Poles
Rated Voltage::	AC400-690V	Rated Limiting Short Current::	50KA
External Material::	Plastic& Metal	Out Material::	Fire Resistance, PA &DMC
Usage::	Low Voltage	Breaking Capacity::	High
High Light:	electronic fuse , fuse system

DNTRS 250A 3P NH strip type HRC fuse holder , 3P busbar Fuse Switch Disconnector

Product Description :

DNTRS strip type fuse railwith unique process engineering.
1. Integrating of current transformer and fuse switch initiated domestically.
2. With knife-edge entry and arc extinguishing equipment, it is safe for operation.
3. The isolating knife blade, full-range protection and semiconductor protection fusible core are optional.
4. Fuse wire monitor and signal switch can be additionally mounted; with self-closing fuse wire monitoring hole.
5. It can be used as primary switch, instaneous breaking capacity reaches 100kA.
6. Capacity of operating with load reaches 1.3 times of rated current

7.Busbar mounting in 100MM or 185MM

Scope of application

1 . DNTRS bar fuse holder used in AC 50(60) HZ 100mm 0r 185mm busbar system with rated voltage up to 690V and rated current to 630A, it is mainly used for overload and short circuit protection circuit.

2 . DNTRS bar fuse holder has been widely used for box tansformer and cable branch box.

3 . DNTRS bar fuse hold complies with standard of GB13539.2,iEC60269.2 and IEC60947.3.

Structure feature

1 . DNTRS series bar fuse holder is mainly mounted in rail of bus,which intergates three single-pole fuse holders in end-to-end arrangenment,A contact(feeding contact) of each phase is connected with one phase of bus,and other contacts(output contact)are equipped with conductorconnection unit.

2 . The DNTRS bar fuse holder carring live part is made of fibre reinforced plastic(FRP),Ag-plated fuse contact with Tin-plated end block ensures low power loss,high acceping power and work temperature.

3 . DNTRS bar fuse holder can be fixed by screw or hook.When it is mounted with hook,the busbar does not need punching, which makes the installation easier,more flexible and more reliable.

Specification:

Model and specification	Busbar system(mm)	Equipped fuse link	Note
DNTRS-160/100	100	NH00	Single pole breaking
DNTRS-160/185	185	NH00	Single pole breaking
DNTRS-250/185	185	NH1	Single pole breaking
DNTRS-400/185	185	NH2	Single pole breaking
DNTRS-630/185	185	NH3	Single pole breaking
