3 Phase Variac 10 KVA Variable Voltage Output Transformers TSGC2-15

China 3 Phase Variac 10 KVA Variable Voltage Output Transformers TSGC2-15 supplier

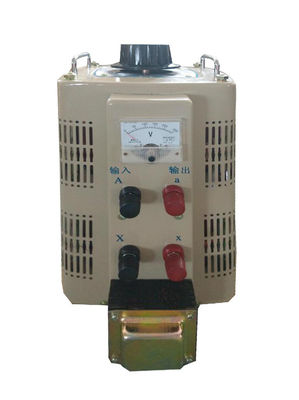

Large Image :  3 Phase Variac 10 KVA Variable Voltage Output Transformers TSGC2-15

Product Details:

Place of Origin: ZHEJIANG, CHINA
Brand Name: YOMIN
Certification: CE, ISO, ROHS
Model Number: TDGC2

Payment & Shipping Terms:

Minimum Order Quantity: it can negotiate
Price: it can negotiate
Packaging Details: international standard cartoon package
Delivery Time: shipped in 2-5 days after payment depends on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 PCS/MONTH
Contact Now
Detailed Product Description
Phase: Three Phase Capacity: 15000VAC
Current Type: AC Output Current: 20A
Output Voltage: 0 - 430VAC Input Voltage: 380VAC
Insulation Resis: >2MΩ

TSGC2 - 15 3 Phase Variac , 10 KVA Variable Voltage Output Transformers





3 Phase Variac 10 KVA Variable Voltage Output Transformers TSGC2-15

Product Description



The Voltage regulators (Variac) are used to adjust the voltage from 0 volts up to the



maximum voltage for which they have been designed and among the most usuall



applications. No additional wave from distortion. The main applications are:

  • Laboratory control equipment.
  • Lighting equipment.
  • Temperature controls.
  • Motor speed control.
  • Controlling of other transformers.
  • Etc.

Manually Operated Rotary Knob to control output voltage, by means of a control button on the shaft of the voltage regulator (Variac) which allows to act on the brush and achieve thedesired voltage. The voltage can be smoothly varied between turns as the brush has arelatively high resistance (compared with a metal contact) and the actual output voltage is a function of the relative area of brush in contact with adjacent windings.



Technical parameters

  • Capacity.....................................................15000VA
  • Output Current..........................................20A
  • Output........................................................0~430VAC
  • Frequency.................................................50/60Hz
  • Input...........................................................380VAC
  • Insulation Resistance...............................>2MΩ
  • No. of Phase.............................................Three-Phase
  • Winding Material......................................100% Copper
  • Max.Temperature.....................................60℃
  • Insulation Class........................................Class B (130℃)
  • IP/NEMA Rating........................................IP20
  • Variable Operation...................................Manually Operated Rotary Knob
  • Portable Carrying Grip............................Provided
  • Pollution Rating.......................................Class III
  • Analog Voltmeter Display.......................Provided
  • Housing Material.....................................Shock-Proof Metal
  • Voltage Setting........................................Manual Control
  • Standards................................................VDE0550,IEC204-1,IEC61588,EC439
  • Sample Service.......................................Pay to Provide
  • Quality Assurance..................................18Months
  • Item Condition.........................................Brand-New





Item Capacity

Input

Voltage

Output

Voltage

Output

Current

Case

Qty.

Model (kVA) (V) (V) (A) (Pcs.)
TSGC2-1.5 1.5 380 0~430 2 2
TSGC2-3 3 380 0~430 4 1
TSGC2-6 6 380 0~430 8 1
TSGC2-9 9 380 0~430 12 1
TSGC2-10 10 380 0~430 12 1
TSGC2-15 15 380 0~430 20 1
TSGC2-20 20 380 0~430 27 1
TSGC2-30 30 380 0~430 40 1
TSGC2-40 40 380 0~430 53 1
TSGC2-60 60 380 0~430 80 1
