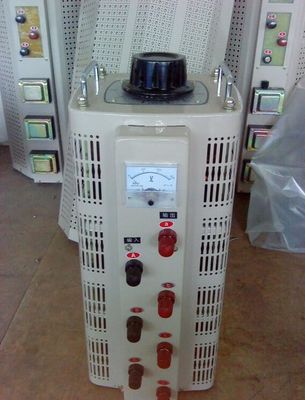

Single Phase Output 0-250V Variac Voltage Regulator Transformers TDGC2-15K

Name: Single Phase Output 0-250V Variac Voltage Regulator Transformers TDGC2-15K
Brand: YOMIN
SKU: TDGC2-15KVA
Price: 150 USD
Availability: InStock
Rating: 5 (103 reviews)

Single Phase Output 0-250V Variac Voltage Regulator Transformers TDGC2-15K supplier

Large Image : Single Phase Output 0-250V Variac Voltage Regulator Transformers TDGC2-15K

Product Details:

Place of Origin:	CHINA
Brand Name:	YOMIN
Certification:	CE
Model Number:	TDGC2-15KVA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD150-USD200/PC
Packaging Details:	wooden case or carton
Delivery Time:	3-5days
Payment Terms:	Western Union, T/T, Paypal
Supply Ability:	20000pcs per month

Contact Now

Detailed Product Description

Phase:	Single Phase	Current Type:	AC
Model Number:	TDGC-15KVA	Output Voltage:	0-250V
Usage:	Voltage Adjusting	Input Voltage:	110V/220V
Frequency:	50/60HZ
High Light:	automatic voltage regulator , variable voltage transformer

TDGC2-15K REGULATOR,Variac Single Phase output 0-250V Variac/Variable transformers.

1. Main Technical Parameter of Contact Voltage Regulator TDGC2/TSGC2

Specification & Capacity	Max. output capacity (KVA)	Rated input voltage(V)	Rated output voltage (V)	Max. output current(A)	Overall size(W * D * L)(mm)	PCS/CTN	Package size/set (WDL) (mm)	Net weight (kg)	Gross weight (kg)	No. of phase
TDGC2-0.2	0.2	220V	0-250V	0.8	105130130	12	380347 350	25	26.5	1
TDGC2-0.5	0.5			2	125150130	8	380347 350	27	28
TDGC2-1	1			4	180200210	4	435255 465	25	26
TDGC2-2	2			8	180200210	4	435255 465	31.5	33
TDGC2-3	3			12	210230235	2	490275 270	21.5	23
TDGC2-5	5			20	240285250	1	330275 290	17.5	18
TDGC2-10	10			40	240335400	1	390295 505	34	40
TDGC2-15	15			60	240335560	1	390295 650	50	58
TDGC2-20	20			80	240340590	1	390295 650	53	60
TSGC2-1.5	1.5	380V	0-430V	2	125180340	1	200260 400	9.8	12	3
TSGC2-3	3			4	180250430	1	300220 510	17	21.5
TSGC2-6	6			8	180250460	1	330220 560	22	27
TSGC2-9	9			12	210250590	1	320260 580	29	35
TSGC2-15	15			20	240330560	1	390295 650	48	56
TSGC2-20	20			26.5	240330580	1	390295 650	53	60
TSGC2-30	30			40	3504201060	1	440450 1170	138	150

2. package picture

3. Our seivise

Our Service (Why buy from us?)
1.Best quality mechanical & electronics parts are use for long working life of the electrical appliances
2. Our products have the guarantee period of 13 calendar months
3.Simple in design and easy to operate and maintain
4.All products’ parts of electrical are made-up green safety grade materials
5.The fast and flexible production form aim at the customer require5.Strigent quality control to ensure 100% customer satisfaction
6.No MOQ limited, we provide you one to one service
