Single Phase AC 3kva Variac Analog Meter Display TDGC2-2 Voltage Regulator

Certification
Good quality Fuse Series for sales
Good quality Fuse Series for sales
we received the goods with nice packing and reliable quality, please ship the new order next month earlier. thanks.

—— Mr. ABD HALIM

STS prepaid meter test by our engineer, operation smoothly according to your English Use Manual, Nince cooperation

—— Mr. Rodrigo Araujo

new mould case din rail meter single phase 5(60)A and 3x10(100)A delivered to our authority, they are very satisfied with the new items. will inform the new orders,thanks

—— Mr. Sathyanarayana D

I'm Online Chat Now

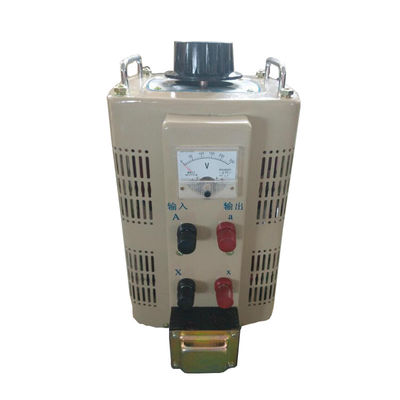

Single Phase AC 3kva Variac Analog Meter Display TDGC2-2 Voltage Regulator

China Single Phase AC 3kva Variac Analog Meter Display TDGC2-2 Voltage Regulator supplier
Single Phase AC 3kva Variac Analog Meter Display TDGC2-2 Voltage Regulator supplier Single Phase AC 3kva Variac Analog Meter Display TDGC2-2 Voltage Regulator supplier Single Phase AC 3kva Variac Analog Meter Display TDGC2-2 Voltage Regulator supplier Single Phase AC 3kva Variac Analog Meter Display TDGC2-2 Voltage Regulator supplier

Large Image :  Single Phase AC 3kva Variac Analog Meter Display TDGC2-2 Voltage Regulator

Product Details:

Place of Origin: Made in China
Brand Name: YOMIN
Certification: ROSH
Model Number: TDGC2-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD 34.86-69.31/piece
Packaging Details: Within one week after payment.
Delivery Time: Within one week after payment.
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 170000 PCS/Month
Detailed Product Description
Brand Name:: YOMIN Current Type:: AC
Phase:: Single Phase Product Name:: Variac Voltage Regulator
Model Number:: TDGC2-2 Output:: 0~250V AC
Place Of Origin:: China (Mainland Usage:: Voltage Regulator
Capacity/Power:: 1500VA-60KVA Color:: Pale Yellow
MOQ: 1 Piece Packing: Standard Export Packing
Voltage Change Rate: ±1% Temperature Rise: ≤60°C
Insulation Resistance:: ≥150MΩ Electric Strength: 2000VAC/1min
Highlight:

automatic voltage regulator

,

variable voltage output transformers

Single Phase AC 3kva variac Analog Meter Display TDGC2-2 Voltage Regulator



The advantages of this model

This type of voltage regulator is in the structure of adjustable self-coupling transformer,it winds coil on ring shaped core,the brush fits close to the polished surface of coil under the press effect of spring,rotating shaft drives the brush holder and make brush slide along with the coil surface,so that to change the contact position of brush,i.e.change the winding ratio of primary and secondary coils,this enables the output voltage to get smooth steepless control.The products are featured with undistorted waveform,compact volume,light weight,high efficiency,convenient operation,reliable,long-term operation,etc.



Phase No 1 3
Frequency 50Hz 50Hz
Rated input voltage 220V 380V
Rated output voltage 0-250V 0-430V



Packaging information



Spec Model Phase Rated capacity(KVA) Rated output current(A)
TDGC2-0.5KVA 1 0.5 0.8
TDGC2-1KVA 1 1 4
TDGC2-2KVA 1 2 8
TDGC2-3KVA 1 3 12
TDGC2-5KVA 1 5 20
TDGC2-10KVA 1 10 40
TDGC2-15KVA 1 15 60
TDGC2-20KVA 1 20 80
TDGC2-30KVA 1 30 120
TDGC2-40KVA 1 40
TSGC2-1.5KVA 3 1.5 2
TSGC2-3KVA 3 3 4
TSGC2-6KVA 3 6 8
TSGC2-9KVA 3 9 12
TSGC2-15KVA 3 15 20
TSGC2-20KVA 3 20 27
TSGC2-30KVA 3 30 40



Single Phase AC 3kva Variac Analog Meter Display TDGC2-2 Voltage RegulatorSingle Phase AC 3kva Variac Analog Meter Display TDGC2-2 Voltage RegulatorSingle Phase AC 3kva Variac Analog Meter Display TDGC2-2 Voltage Regulator
