Single Phase TDGC2-2K Variac Variable Transformer With Energy Meter

China Single Phase TDGC2-2K Variac Variable Transformer With Energy Meter supplier
Single Phase TDGC2-2K Variac Variable Transformer With Energy Meter supplier Single Phase TDGC2-2K Variac Variable Transformer With Energy Meter supplier Single Phase TDGC2-2K Variac Variable Transformer With Energy Meter supplier Single Phase TDGC2-2K Variac Variable Transformer With Energy Meter supplier Single Phase TDGC2-2K Variac Variable Transformer With Energy Meter supplier Single Phase TDGC2-2K Variac Variable Transformer With Energy Meter supplier

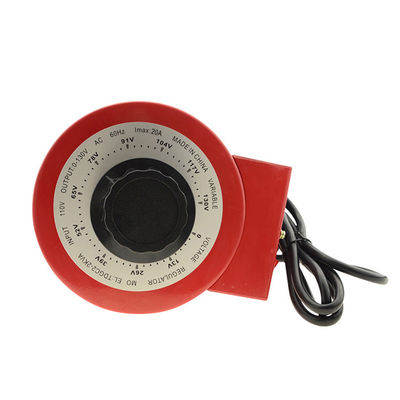

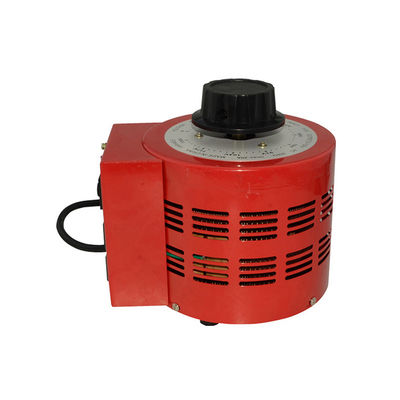

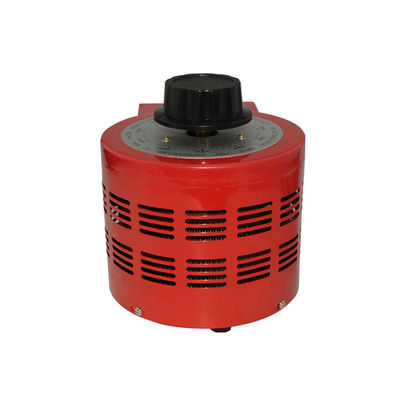

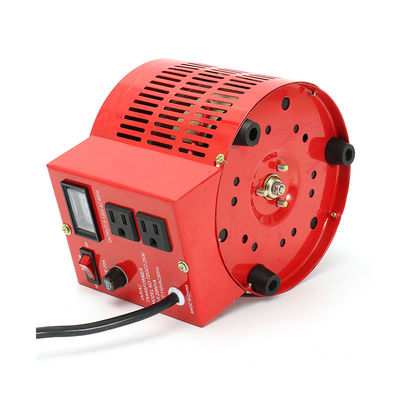

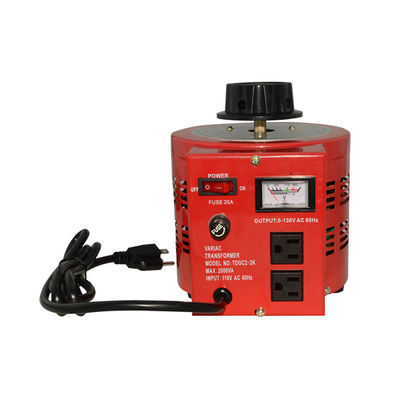

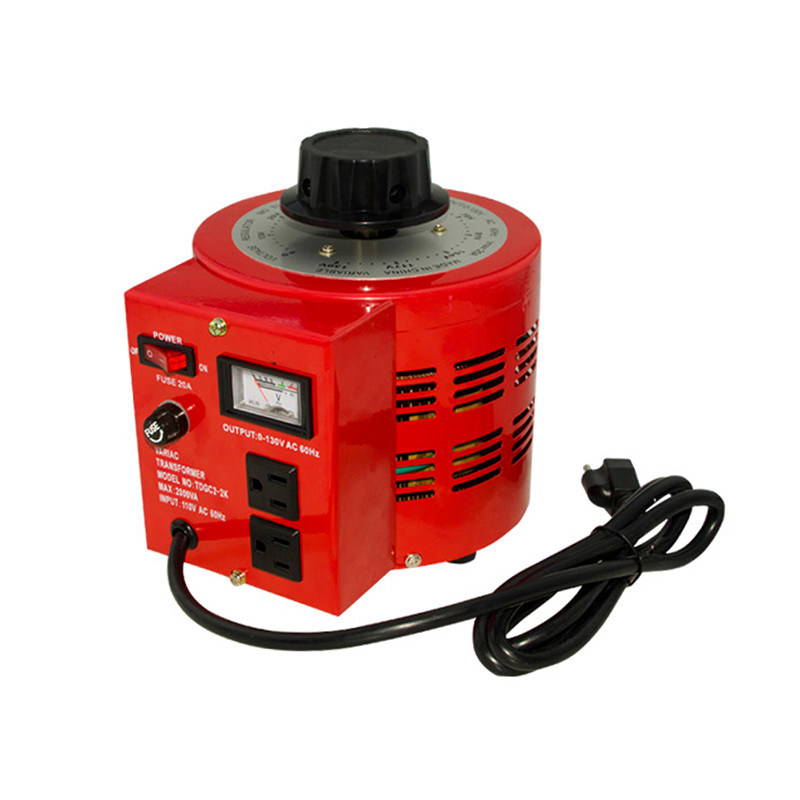

Large Image :  Single Phase TDGC2-2K Variac Variable Transformer With Energy Meter

Product Details:

Place of Origin: Made in China
Brand Name: YOMIN
Certification: ROSH
Model Number: TDGC2-2K

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD 28.36-49.31/piece
Packaging Details: Within one week after payment.
Delivery Time: Within one week after payment.
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 190000 PCS/Month
Contact Now
Detailed Product Description
Brand Name:: YOMIN Current Type:: AC
Phase:: Single Phase Product Name:: Variac Voltage Regulator
Model Number:: TDGC2-2K Protection Degree: IP20
Place Of Origin:: China (Mainland Usage:: Voltage Regulator
Capacity/Power:: 1500VA-60KVA Color:: Red
Insulation Class: A Packing: Standard Export Packing
Voltage Change Rate: ±1% Temperature Rise: ≤60°C
Insulation Resistance:: ≥150MΩ Electric Strength: 2000VAC/1min

Best quantity single phase TDGC2-2K variac variable transformer with energy meter



Product description:



The Voltage regulators (Variac) are used to adjust the voltage from 0 volts up to the maximum voltage for which they have been designed and among the most usuall applications. No additional wave from distortion. The main applications are:

  • Laboratory control equipment.
  • Lighting equipment.
  • Temperature controls.
  • Motor speed control.
  • Controlling of other transformers.
  • Etc.

Manually Operated Rotary Knob to control output voltage, by means of a control button on the shaft of the voltage regulator (Variac) which allows to act on the brush and achieve the desired voltage. The voltage can be smoothly varied between turns as the brush has a relatively high resistance (compared with a metal contact) and the actual output voltage is a function of the relative area of brush in contact with adjacent windings.



Technical parameters:



  • Capacity......................................................10000VA
  • Output Current...........................................40A
  • Output.........................................................0~250VAC
  • Frequency..................................................50/60Hz
  • Input............................................................220V AC
  • Insulation Resistance...............................>5MΩ
  • No. of Phase..............................................Single-Phase
  • Winding Material.......................................100% Copper
  • Max.Temperature......................................60℃
  • Insulation Class.........................................Class B (130℃)
  • IP/NEMA Rating..........................................IP20
  • Variable Operation....................................Manually Operated Rotary Knob
  • Portable Carrying Grip.............................Provided
  • Pollution Rating.........................................Class III
  • Analog Voltmeter Display........................Provided
  • Housing Material.......................................Shock-Proof Metal
  • Voltage Setting.........................................Manual Control
  • Standards...............................................VDE0550,IEC204-1,IEC61588,EC439
  • Sample Service........................................Pay to Provide
  • Quality Assurance...................................18Months
  • Item Condition.........................................Brand-New



Item Capacity

Input

Voltage

Output

Voltage

Output

Current

Case

Qty.

Model (kVA) (V) (V) (A) (Pcs.)
TDGC2-0.2 0.2 220 0~250 0.8 12
TDGC2-0.5 0.5 220 0~250 2 6
TDGC2-1 1 220 0~250 4 4
TDGC2-2 2 220 0~250 8 4
TDGC2-3 3 220 0~250 12 2
TDGC2-5 5 220 0~250 20 1
TDGC2-7.5 7.5 220 0~250 30 1
TDGC2-10 10 220 0~250 40 1
TDGC2-15 15 220 0~250 60 1



Single Phase TDGC2-2K Variac Variable Transformer With Energy MeterSingle Phase TDGC2-2K Variac Variable Transformer With Energy Meter
