Home ProductsVariac Voltage Regulator

AC Single Phase TDGC2J-5K Analog Meter Display Voltage Regulator

Certification
Good quality Ceramic Tile Spacers for sales
Good quality Ceramic Tile Spacers for sales
we received the goods with nice packing and reliable quality, please ship the new order next month earlier. thanks.

—— Mr. ABD HALIM

STS prepaid meter test by our engineer, operation smoothly according to your English Use Manual, Nince cooperation

—— Mr. Rodrigo Araujo

new mould case din rail meter single phase 5(60)A and 3x10(100)A delivered to our authority, they are very satisfied with the new items. will inform the new orders,thanks

—— Mr. Sathyanarayana D

I'm Online Chat Now

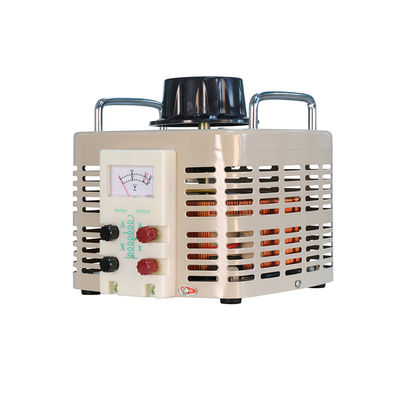

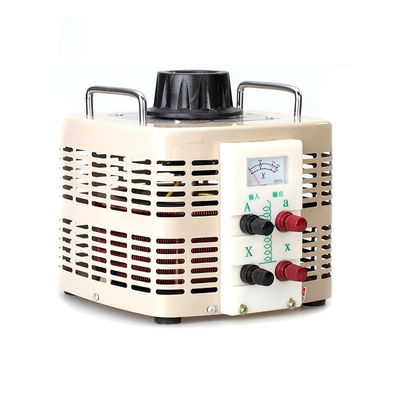

AC Single Phase TDGC2J-5K Analog Meter Display Voltage Regulator

China AC Single Phase TDGC2J-5K Analog Meter Display Voltage Regulator supplier
AC Single Phase TDGC2J-5K Analog Meter Display Voltage Regulator supplier AC Single Phase TDGC2J-5K Analog Meter Display Voltage Regulator supplier AC Single Phase TDGC2J-5K Analog Meter Display Voltage Regulator supplier AC Single Phase TDGC2J-5K Analog Meter Display Voltage Regulator supplier

Large Image :  AC Single Phase TDGC2J-5K Analog Meter Display Voltage Regulator

Product Details:

Place of Origin: Made in China
Brand Name: YOMIN
Certification: ROSH
Model Number: TDGC2J-5K

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD 47.82-198.67/piece
Packaging Details: Within one week after payment.
Delivery Time: Within one week after payment.
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 190000 PCS/Month
Contact Now
Detailed Product Description
Brand Name:: YOMIN Current Type:: AC
Phase:: Single Phase Product Name:: Variac Voltage Regulator
Model Number:: TDGC2J-5K Protection Degree: IP20
Place Of Origin:: China (Mainland) Usage:: Voltage Regulator
Capacity/Power:: 1500VA-60KVA Color:: Pale Yellow
Insulation Class: A Packing: Standard Export Packing
Voltage Change Rate: ±1% Temperature Rise: ≤60°C
Insulation Resistance:: ≥150MΩ Electric Strength: 2000VAC/1min

Made in China AC single phase TDGC2J-5K Analog Meter Display Voltage Regulator



Product description:



1.TDGC2 contact voltage regulator have beautiful appearance

2.This type contact voltage regulator have high efficiency

3.Contact voltage regulator without waveform

4. Contact voltage regulator have the characters of light weight, a convenient and reliable usage and a lasting running.

Our top quality contact voltage regulators have passed the certification of CE, ISO9001, FCC and ECM.

Rated products model of contact voltage regulator



Product parameters



Specifications Rated Capacity (KVA) Product Size (cm) Weight (kg) Table equipment









TDGC2J Single phase



0.5 14×16×20 4.2 6
1 17×21×23 6.5 4
2 21×25×23 11.8 2
3 24×27×23 14.5 2
5 35×38×27 26 1
7 35×38×27 26.5 1
10 35×43×43 54 1
15 35×43×59 80 1
20 35×43×59 83 1
30 35×43×110 165 1
40 35×43×110 171 1









TSGC2J Three phase



3 17×21×52 21 1
6 21×25×52 31 1
9 24×27×52 42 1
12 35×40×59 73 1
15 35×40×59 79 1
20 35×40×59 81 1
30 35×43×110 165 1
40 35×43×110 170 1
45 35×43×110 175 1
50 35×43×110 180

1
