TSGC2 Three Phase Variav / Voltage Regulator / Variable Transformer

China TSGC2 Three Phase Variav / Voltage Regulator / Variable Transformer supplier
TSGC2 Three Phase Variav / Voltage Regulator / Variable Transformer supplier TSGC2 Three Phase Variav / Voltage Regulator / Variable Transformer supplier TSGC2 Three Phase Variav / Voltage Regulator / Variable Transformer supplier TSGC2 Three Phase Variav / Voltage Regulator / Variable Transformer supplier

Large Image :  TSGC2 Three Phase Variav / Voltage Regulator / Variable Transformer

Product Details:

Place of Origin: Made in China
Brand Name: YOMIN
Certification: ROSH
Model Number: TSGC2

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD 67.82-197.67/piece
Packaging Details: Within one week after payment.
Delivery Time: Within one week after payment.
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 190000 PCS/Month
Contact Now
Detailed Product Description
Brand Name:: YOMIN Current Type:: AC
Phase:: Three Phase Product Name:: Variac Voltage Regulator
Model Number:: TSGC2 Protection Degree: IP20
Place Of Origin:: China (Mainland) Usage:: Voltage Regulator
Capacity/Power:: 1500VA-60KVA Color:: Pale Yellow
Insulation Class: A Packing: Standard Export Packing
Voltage Change Rate: ±1% Temperature Rise: ≤60°C
Insulation Resistance:: ≥150MΩ Electric Strength: 2000VAC/1min

Manufacturer TSGC2 Three Phase Variav / Voltage Regulator / Variable Transformer

Product Description

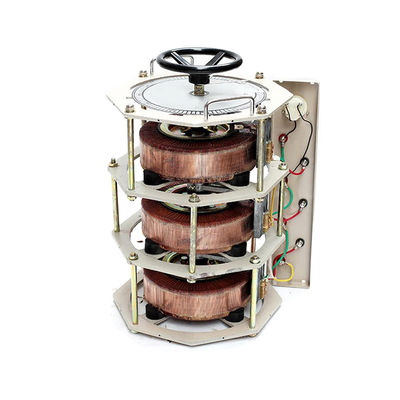

TSGC2 Series Contact Type Voltage Regulator belongs to the Adjustable Variac/Autotransformer structure. The coil wound evenly on the toroidal core, the carbon brush holder installed in the spindle, under the pressure of spring, the carbon brush contacts the coil surface closely. Adjusting the spindle to drive the carbon brush holder to make the carbon brush move on the coil surface and change the carbon brush contact position, that is to say, changing the variac primary and secondary winding turns ratio, which make the output voltage smoothly adjust with the adjustable range.



Technical Parameters



Capacity/Power 1500VA-60KVA(Other power can be customized)
Input Voltage 380VAC (Other voltage can be customized)
Output Voltage 0-430VAC (Other range can be customized)
Max. Output Current Power in KVA*1000/(Max. Output Voltage*1.732)
Working Frequency 50Hz/60Hz±5%
Efficiency ≥98%
Waveform Distortion No
Ambient Temperature -15°C to +45°C
Altitude ≤1000m
Relative Humidity ≤95%
Insulation Class F
Temperature Rise <60℃
Dielectric Strength No damage at 2000V for 1 minute
Insulation Resistance ≥5MΩ
Display Analogue Meter (Optional: LED or LCD Screen)
Installation Indoor and floor mounted
Protection Degree (IP Rating) IP20
Cooling-Down Method Dry type air cooled

TSGC2 Three Phase Variav / Voltage Regulator / Variable TransformerTSGC2 Three Phase Variav / Voltage Regulator / Variable Transformer
