Relay Type Home AC Automatic Voltage Stabilizer , DER 1000VA Single Phase Stabilizer

Name: Relay Type Home AC Automatic Voltage Stabilizer , DER 1000VA Single Phase Stabilizer
Brand: YOMIN
SKU: DER-1
Rating: 4.5 (157 reviews)

Relay Type Home AC Automatic Voltage Stabilizer , DER 1000VA Single Phase Stabilizer supplier

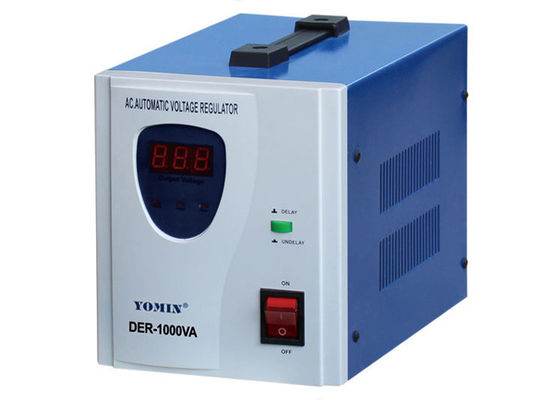

Large Image : Relay Type Home AC Automatic Voltage Stabilizer , DER 1000VA Single Phase Stabilizer

Product Details:

Place of Origin:	Zhejiang , China ( Mainland )
Brand Name:	YOMIN
Certification:	CE / RoHS
Model Number:	DER-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiation
Packaging Details:	Export carton , 4 Pieces / Carton
Delivery Time:	5 - 20 working days after received your payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	1000 Pieces Per Week

Contact Now

Detailed Product Description

Color:	Blue	Protection:	Over Current
Capacity:	1000VA	Efficiency:	80%
Display:	Meter Display Or Digtal Display	Current Type:	AC
High Light:	automatic voltage regulator , variable voltage output transformers

Relay Type Home AC Automatic Voltage Stabilizer , DER 1000VA Single Phase Stabilizer .

Product Description :

DER automatic AC home voltage stabilizer is composed of automatic coulping regulator , sampling control board , executing mechanism . It has the characteristics of small of in volume , light weight , little in distortion output wave from , quick in react etc , it is especially suitable for household air conditiner , refrige rate , TV setand music center . It also can leng their use span , and so is the ideal-ist AC , stabilizer for modern families .

The product needs minimum power consumption and can be used continuously .

Features :

Input voltage:AC 160V~250V
Output voltage:AC 220V/110V+-8%
With over current protector
With output voltage indication
Ultra low voltage can be customized

Technical parameters :

Type	Carton Size(cm)	Production Size(cm)	G.W(kg)	QTY.
DER-500VA	482731	18.51114	20	8
DER-1000VA	333142	251419	14	4
DER-1500VA	333142	251419	16	4
DER-2000VA	333142	251419	19	4
DER-3000VA	34.52126	422932	13	1
DER-5000VA	34.52126	422932	15	1
DER-8000VA	34.52126	422932	18	1
DER-10000VA	422932	34.52126	23	1

Specification :

Input voltage	AC 160V ~ 250V
Phase	single phase
Frequency	50 ~ 60HZ
Adjusting time	<1S
Ambient temperature	- 5°C ~ + 40°C
Relative humidity	< 90°C
Wave form distortion	No waveform distortion
Insulation resistance	≥2MΩ
