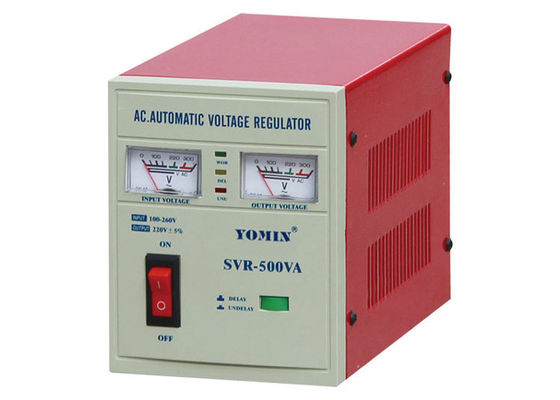

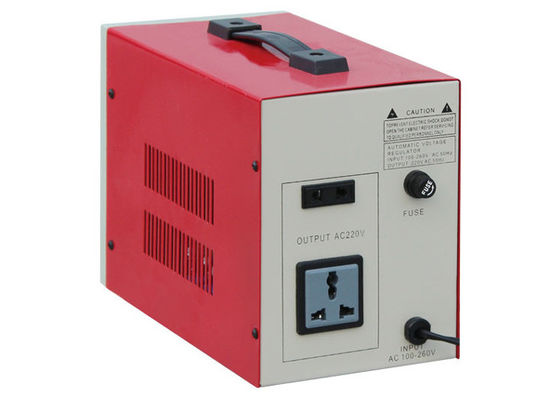

Single Phase Relay Type Stabilizer , Home Automatic Voltage Stabilizer SVR AC

Name: Single Phase Relay Type Stabilizer , Home Automatic Voltage Stabilizer SVR AC
Brand: YOMIN
SKU: SVR-0.5
Rating: 4.9 (119 reviews)

Single Phase Relay Type Stabilizer , Home Automatic Voltage Stabilizer SVR AC supplier

Large Image : Single Phase Relay Type Stabilizer , Home Automatic Voltage Stabilizer SVR AC

Product Details:

Place of Origin:	Zhejiang , China ( Mainland )
Brand Name:	YOMIN
Certification:	CE / RoHS
Model Number:	SVR-0.5

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiation
Packaging Details:	Export carton , 4 Pieces / Carton
Delivery Time:	5 - 20 working days after received your payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	1000 Pieces Per Week

Contact Now

Detailed Product Description

Capacity:	500VA	Usage:	SVR
Response Time:	≤ 1 S	Dimension:	18.5 * 11 * 14
After Sale Service:	Yes	OEM:	Yes
High Light:	variable voltage transformer , variable voltage output transformers

Single Phase Relay Type Stabilizer , Home Automatic Voltage Stabilizer SVR AC .

Description :

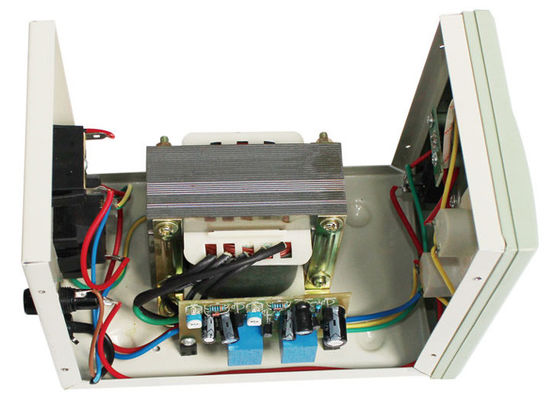

SVR automatic AC home voltage stabilizer is composed of automatic coupling regulator , sampling control board , executing mechanism . It has the characteristics of in volume , light weight , little in distortion output wave form , quick in react etc . It is especially suitable for household air conditiner , refrige rate , TV setand music center . It also can leng their use span , and so is ideal - ist AC , stabilizer for modern families .

The product needs minimum power consumption and can be used continuously .

Input voltage : AC 160V ~ 250V
Output voltage : AC 220V / 110V + - 8%
With over current protector
With output voltage indication
Ultra low voltage can be customized

Specification :

Item Name	Automatic Voltage Stabilizer
Item Code	SVR - 0.5 ( 0.5KVA up to 10KVA )
Phase	Single phase
Capacity	500VA ( 0.5KVA up to 10KVA )
Input voltage	110 - 250V or 160 - 270V
Output voltage	220V ± 8 % or 110V ± 8 %
Precision/Accuracy	± 8 %
Frequency	50 / 60Hz
Efficiency	80%
Adjust time	Not more than 1 S
Ambient temperature	- 10℃ ~ + 40℃
Insulation resistance	Normally more than 5MΩ
Relative humidity	Less than 90%
Waveform distortion	No additional waveform distortion
Control type	Servo Motor
Protection	Over current
