12000VA Full Home Servo AC Stabilizer , Automatic Voltage Stabilizer Hanging Type
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Ambient Temperature: | - 10℃ ~ + 40℃ | Input Voltage: | AC 50V ~ 130V Or 120V ~ 250V |
|---|---|---|---|
| Insulation Resistance: | ≥ 2MΩ | Wave Form Distortion: | No Wave Form Distortion |
| Relative Humidity: | < 90°C | Control Type: | Servo Motor |
| High Light: | automatic voltage regulator,variable voltage transformer |
||

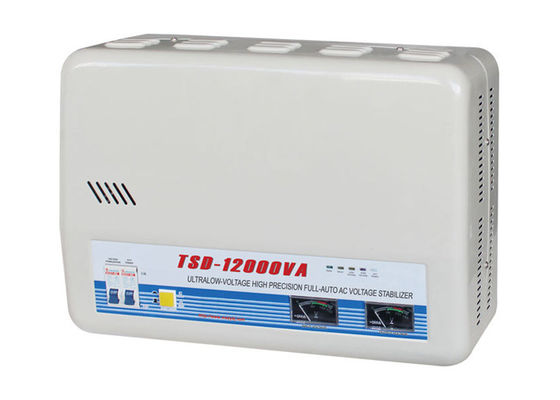

12000VA Full Home Servo AC Stabilizer , Automatic Voltage Stabilizer Hanging Type
Description :

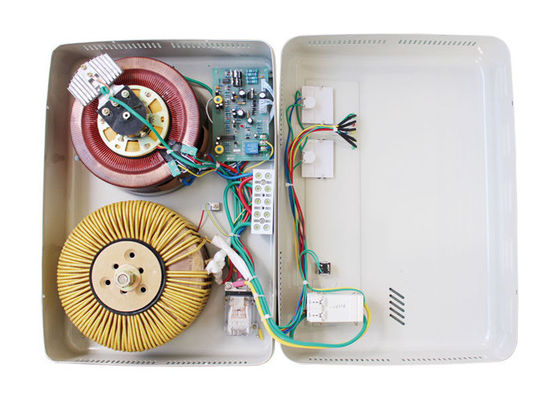

TSD series Ultra-low voltage high precision automatic AC voltage regulator is key series of our products. It is made of contact type self-couping voltage regulator, servo motor,automatic control circuit and so on. When the voltage of the network is not steady or the load varies, voltage regulator so as to have the output voltage regulated to the rating and to obtain the steady state.
- Input voltage:AC 50V~130V or 160V~250V
- Output voltage:AC 220V/110V +-2%
- With over current protector
- With output voltage indication
- with 110V/220V input voltage selector switch
- 7500W ~20000W input 160V~250V,Output 220V+-2%
Scope of application :
Computer Test equipment . Lighting equipment . Alarm and security system , X - ray equipment , Medical equipment , duplicator , Broadcasting equipment , Nimeric control machine tool industrial robot Photographic
pricessing equipment Laboratory instrument Hi - F Hi - Fi equipment .
Technical parameters :
|
Item Code |
Capacity (KVA) |
Size (L*W*H, CM) |
QTY. |
|
TSD-3 K |
3 |
42*30.5*39 |
2 |
|
TSD-6 K |
6 |
46.5*35.5*46 |
2 |
|
TSD-8 K |
8 |
46.5*35.5*46 |
2 |
|
TSD-10 K |
10 |
50*38.5*25 |
1 |
|
TSD-12 K |
12 |
50*38.5*25 |
1 |
Specification :
|
Item Name |
Automatic Voltage Stabilizer |
|
Item Code |
TSD-12 |
|
Phase |
Single phase |
|
Capacity |
12KVA |
|
Input voltage: |
AC 50V ~ 130V or 120V ~ 250V |
|
Output voltage: |
220V ± 8% or 110V ± 8% |
|
Frequency: |
50 / 60Hz |
|
Efficiency: |
Not less than 90% |
|
Adjust time: |
Not more than 1 S |
|
Ambient temperature: |
-10℃~+40℃ |
|
Insulation resistance: |
Normally more than 5MΩ |
|
Relative humidity: |
Less than 90% |
|
Waveform distortion: |
No additional waveform distortion |
|
Control type: |
Servo motor |
How about the Delivery Terms?
By sea or by air or by road , FOB , CFR , CIF , etc. any is acceptable to us.
Ningbo ( Seaport ) is the nearest port to us , so if the goods are to be sent by sea , generally , we choose Ningbo as the port of loading . However , any port in China is acceptable to us . Besides , some items can be sent by international express , such as DHL , TNT , UPS , EMS , Fedex , etc .
