Home Single Phase Refrigerator Automatic Voltage Stabilizer , Over Current Protector Stabilizer
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | White | N.W.: | 75kgs |
|---|---|---|---|
| Phase: | Single Phase | Size: | 37.5*41.5*78.5 |
| Altitude: | ≤1000m | Usage: | SVC / TND |
| High Light: | variable voltage transformer,variable voltage output transformers |
||

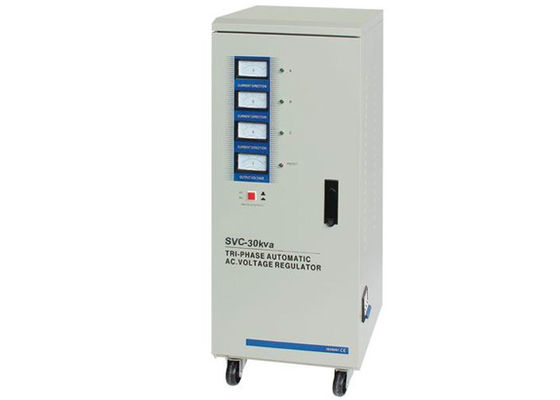

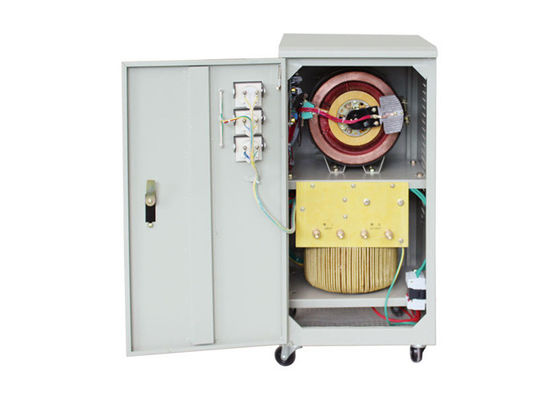

Home Single Phase Refrigerator Automatic Voltage Stabilizer , Over Current Protector Stabilizer .
Description :
SVC single phase high accuracy full-automatic AC voltage stabilizer . It is combined the performance of the series SVC single phase products , the input phase system is three phase and fourwire system , the output voltage is 220V of phase and 380V of line voltage , within the roted capacity range , they also can be used for the equipment of which the source voltage is single phase 220V or three phase 380V .
- Input voltage:AC 160V ~ 250V or 50V ~ 130V
- Output voltage:AC 220V ± 2 % or 110V ± 2 %
- With over current protector
- With output voltage indication
- With 110V / 220V input voltage selector switch
- 7500W ~ 20000W input 160V ~ 250V , output 220V + - 2 %
Specification :
| Phase No. | Single phase four wire system |
| Input voltage | Phase voltage:160V ~ 250V or 50V ~ 130V |
| Output voltage | Phase voltage : 220V ± 2 % or 110V ± 2 % |
| Temperature rise | <60°C |
| Relative humidity | <95% |
| Ambient temperature | -10°C ~ + 40°C |
| Frequency | 50Hz / 60Hz |
| Waveform distortion | Non additional waveform distortion |
| Withstand voltage | 1500V / min |
| Insulation resistance | > 2MΩ |
Application:
Computer , Fax machince and office equipument , Test equipment , lighting equipment , Alarm and security system , X-Ray equipment , Medical equipment , Duplicator , Broadcasting equipment , Numeric control machine tool , Industrial robot , Photographic processing machine , Laboratory instrument HI-FI .
What we do :
Established in 2002 , Yomin is a professional manufacturer and exporter specialized in the research , development and production of low voltage electrical products . Most products
are used for switchgear , such as MCB , MCCB , RCD , Current Transformer , Analogue Meter ,
Digital Meter , Kilo-watt hour Meter ( Digital type and Mechanical type ) , AC Contactor , Fuse series ,
Relay , and other accessories .
Located in Yueqing City Zhejiang province , we are quite close to Shanghai and Ningbo port . Covering an area of 12000 square meters formanufacturing and administration , we now have over
370 employees making their great efforts for Yomin . Having been working hard for more than 10 years ,
Yomin has gradually become a medium scale productive corporation with over 9 different product lines
and export to over 60 countries and regions,especially for Kilo - watt hour meter and MCB.
