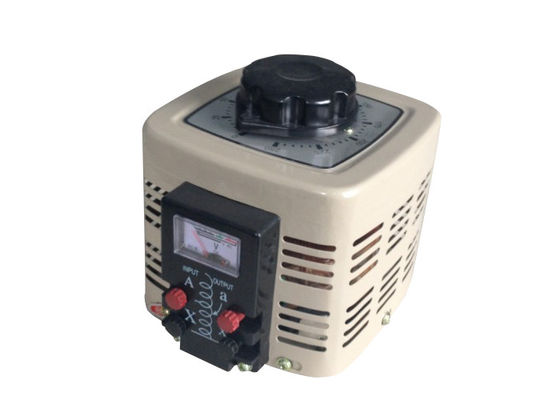

Metal Shell Single Phase Voltage Regulator , Wide Range Voltage Adjuster 500VA .

The Voltage regulators ( Variac ) are used to adjust the voltage from 0 volts up to the maximum voltage for which they have been designed and among the most usuall applications . No additional wave from distortion . The main applications are :

• Laboratory control equipment .
• Lighting equipment .
• Temperature controls .
• Motor speed contro l.
• Controlling of other transformers .
• Etc .

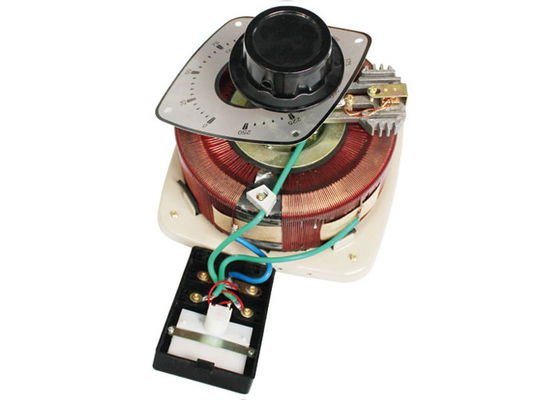

Manually Operated Rotary Knob to control output voltage , by means of a control button on the shaft of the voltage regulator ( Variac ) which allows to act on the brush and achieve the desired voltage . The voltage can be smoothly varied between turns as the brush has a relatively high resistance ( compared with a metal contact ) and the actual output voltage is a function of the relative area of brush in contact with adjacent windings .

• Capacity......................................................20VA
• Output Current............................................2A
• Output.........................................................0 ~ 250VAC
• Frequency...................................................50/60Hz
• Input voltage................................................220V AC
• Insulation Resistance...................................> 5MΩ
• No . of Phase...............................................Single - Phase
• Winding Material..........................................100 % Copper
• Max .Temperature..........................................60 ℃
• Insulation Class.............................................Class B ( 130℃ )
• IP/NEMA Rating..............................................IP20
• Variable Operation.........................................Manually Operated Rotary Knob
• Portable Carrying Grip...................................Provided
• Pollution Rating..............................................Class III
• Analog Voltmeter Display................................Provided
• Housing Material............................................Shock - Proof Metal
• Voltage Setting...............................................Manual Control
• Standards.......................................................VDE0550 , IEC204 - 1 , IEC61588 , EC439
• Sample Service...............................................Pay to Provide
• Quality Assurance...........................................18 Months
• Item Condition..................................................Brand - New
