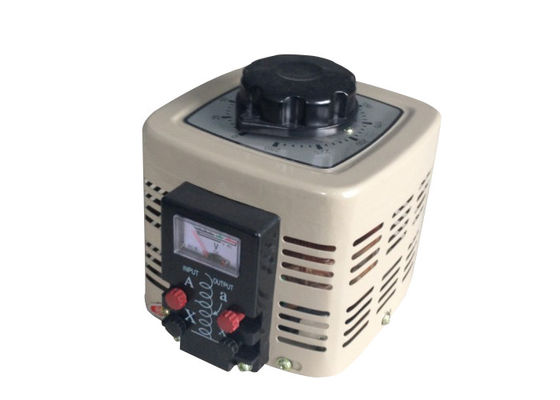

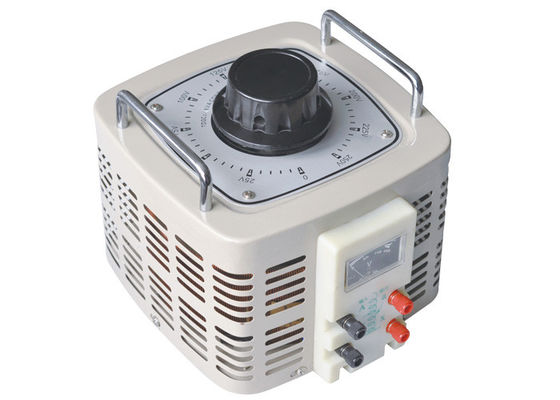

Single Phase 1000VA TDGC2 Variac, Voltage Regulator Used In Chemical Industry

Single Phase 1000VA TDGC2 Variac, Voltage Regulator Used In Chemical Industry

Description :

This product possesses the peculiarity of waveform distortion , a small volume ,a light weight, high effciency, a convenient and reliable usage and a lasting running . It can be widely used in industry (chemical industry , metallurgy , equipment , meter , elcro - machinery - making , light industry , etc . ) Scientific experiment . Public facility , home -electric appliance , temperature - control , speed - regulation , light regulation and power - control .That ' s an ideal alternating pressure - regulation power source .

Single phase : Input voltage 110V or 220V , output voltage : 0 - 250V 50Hz / 60Hz

• Capacity......................................................1000VA
• Output Current...........................................4A
• Output.........................................................0 ~ 250V AC
• Frequency..................................................50 / 60Hz
• Input............................................................220V AC
• Insulation Resistance..................................> 5MΩ
• No. of Phase..............................................Single - Phase
• Winding Material.........................................100 % Copper
• Max.Temperature........................................60℃
• Insulation Class...........................................Class B ( 130℃ )
• IP/NEMA Rating..........................................IP20
• Variable Operation.....................................Manually Operated Rotary Knob
• Portable Carrying Grip................................Provided
• Pollution Rating...........................................Class III
• Analog Voltmeter Display............................Provided
• Housing Material.........................................Shock - Proof Metal
• Voltage Setting............................................Manual Control
• Standards....................................................VDE0550 , IEC204 - 1 , IEC61588 , EC439
• Sample Service............................................Pay to Provide
• Quality Assurance.......................................18Months
• Item Condition.............................................Brand - New
