Customized Available High Voltage Regulator ,Power Supply , Auto Voltage Regulator 10000VA .

Name: Customized Available High Voltage Regulator ,Power Supply , Auto Voltage Regulator 10000VA .
Brand: YOMIN
SKU: TDGC2 - 10
Rating: 5 (118 reviews)

Customized Available High Voltage Regulator ,Power Supply , Auto Voltage Regulator 10000VA . supplier

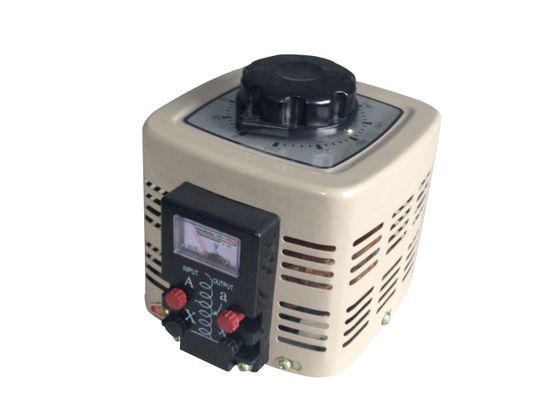

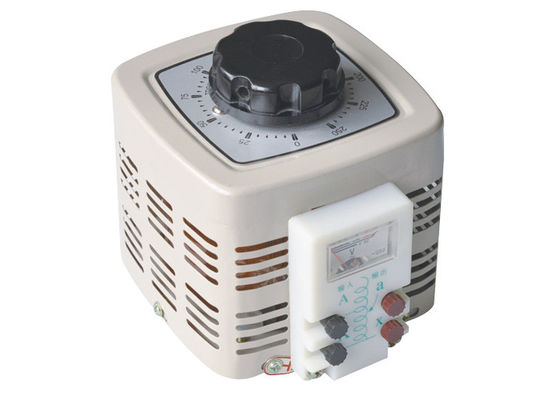

Large Image : Customized Available High Voltage Regulator ,Power Supply , Auto Voltage Regulator 10000VA .

Product Details:

Place of Origin:	Zhejiang , China ( Mainland )
Brand Name:	YOMIN
Certification:	CE / RoHS
Model Number:	TDGC2 - 10

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiation
Packaging Details:	Export carton , 1 Piece / Carton
Delivery Time:	5 - 20 working days after received your payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	1000 Pieces Per Week

Contact Now

Detailed Product Description

Warranty:	12 Months	Efficiency:	>=90%
Input Voltage:	220VAC	Insulation Resistance:	>5MΩ
Output Current:	40A	Capacity:	10000VA
High Light:	automatic voltage regulator , variable voltage transformer

Customized Available High Voltage Regulator ,Power Supply , Auto Voltage Regulator 10000VA .

Porduct introduction and application :

TDGC , TSDC series of products are the fourteenth batch of mechanical and electrical industry energy-saving products . This series of products have the advantages of non - waveform distortion , small size , light weight , high efficiency , reliable operation and so on . It can be widely used in chemical, metallurgical, instrumentation , machinery manufacturing , light industry , scientific experiments , utilities , household appliances , achieve the purpose of regulator , temperature , speed , dimming , power control etc .

Working principle :

Pressure regulating device is autotransformer which can continuous adjust the turns ratio . When the hand wheel is rotated , with the help of electronical brush to slide on the polished surface of the turns , it changes the turns ratio , so that the output voltage can be adjusted smoothly from zero to the maximum .

Parameter for Pressure Regulating Device :

Input voltage	single phase 220V / three phase 380V
Output voltage	single phase 0~250V / three phase 0~430V ( can be customized )
Frequency	50Hz / 60Hz
Efficiency	> 90%
Waveform distortion	no additional distortion
Ambient temp	< 60℃
Resistance strength	2000V / min
Insulation resistance	sinlg phase > 5ΜΩ three phase > 2MΩ
Adjusted way	Manual / automatic
