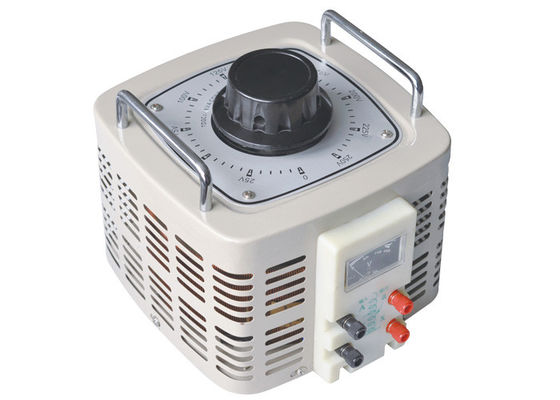

TDGC2 Automatic Variac Voltage Regulator ,

TDGC2 Automatic Variac Voltage Regulator ,Single Phase 60A Output Meter Display Regulator .

Description :

It adopts an adjustable varitran structure . The coil is wound evenly around the ring - shaped iron core . The electric brush , acted by the spring pressure , dovetails closely with the coil ' s polished surface to turn the pivot to drive the brush bracket so that the brush can slide along the coil ' s surface to change the brush ' s contact position , namely , change the turn ratio of primary and secondary coils , for the purpose of smooth and stepless regulation of output voltage within the regulation range . It ' s featured by its undistorted waveform , compactness , light weight , high efficiency , easy use , reliable operation and so on .

Application Scope :

It ' s widely applied in industry ( such as chemical engineering , metallurgy , instruments and meters ,electromechanical manufacturing and light industry ) , scientific experiment and public facilities for voltage regulating , temperature control , speed control , light adjustment , power control and so on , which is an ideal AC stepless voltage regulating supply .

Advantage :

1. Small , light and high efficiency
2. High frequency pulse current output
3. Flexible use , simple operation
4. Complete protection function

• Capacity......................................................15000VA
• Output Current............................................60A
• Output.........................................................0~250V AC
• Frequency...................................................50/60Hz
• Input............................................................220V AC
• Insulation Resistance..................................>5MΩ
• No. of Phase...............................................Single-Phase
• Winding Material.........................................100% Copper
• Max.Temperature........................................60℃
• Insulation Class...........................................Class B (130℃)
• IP/NEMA Rating..........................................IP20
• Variable Operation......................................Manually Operated Rotary Knob
• Portable Carrying Grip................................Provided
• Pollution Rating...........................................Class III
• Analog Voltmeter Display.............................Provided
• Housing Material..........................................Shock-Proof Metal
• Voltage Setting.............................................Manual Control
• Standards....................................................VDE0550,IEC204-1,IEC61588,EC439
• Sample Service............................................Pay to Provide
• Quality Assurance........................................18Months
• Item Condition...............................................Brand-New
