Input 220V Output 0-250V AC Automatic Voltage Regulator

Name: Input 220V Output 0-250V AC Automatic Voltage Regulator
Brand: YOMIN
SKU: TDGC2 - 7.5KVA
Rating: 4.9 (115 reviews)

Input 220V Output 0-250V AC Automatic Voltage Regulator supplier

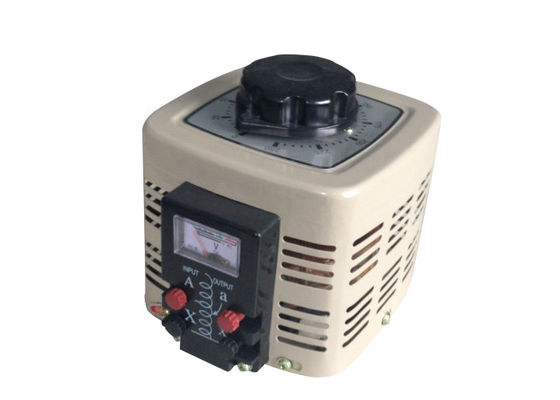

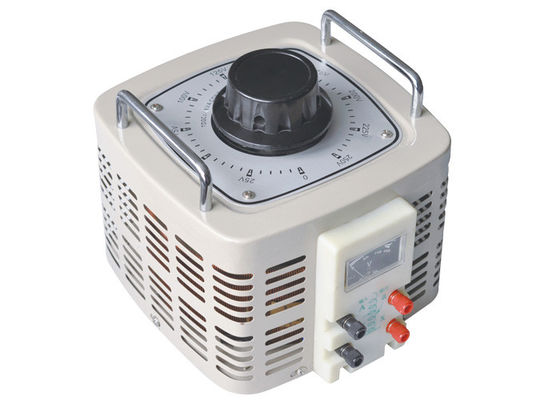

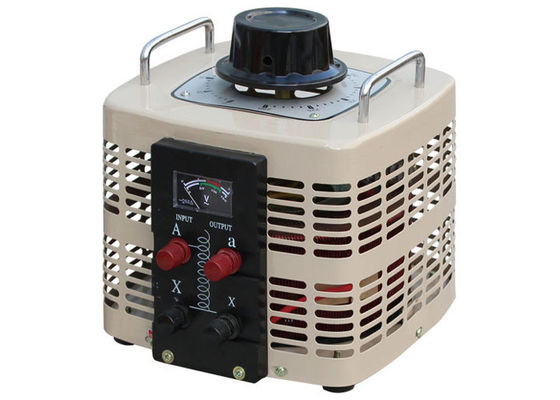

Large Image : Input 220V Output 0-250V AC Automatic Voltage Regulator

Product Details:

Place of Origin:	Zhejiang , China ( Mainland )
Brand Name:	YOMIN
Certification:	CE / RoHS
Model Number:	TDGC2 - 7.5KVA

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiation
Packaging Details:	Export carton , 1 Piece / Carton
Delivery Time:	5 - 20 working days after received your payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	1000 Pieces Per Week

Contact Now

Detailed Product Description

Frequency:	50Hz / 60Hz	Max.Temperature:	60 ℃
Variable Operation:	Manually Operated Rotary Knob	Housing Material:	Shock - Proof Metal
Winding Material:	100% Copper	No . Of Phase:	Single Phase
High Light:	variable voltage transformer , variable voltage output transformers

Input 220V Output 0-250V AC Regulator ,Automatic Voltage Regulator TDGC2 - 7.5KVA

Product Description :

The Voltage regulators ( Variac ) are used to adjust the voltage from 0 volts up to the maximum voltage for which they have been designed and among the most usuall applications . No additional wave from distortion . The main applications are :

Laboratory control equipment .
Lighting equipment .
Temperature controls .
Motor speed control .
Controlling of other transformers .
Etc .

Manually Operated Rotary Knob to control output voltage, by means of a control button on the shaft of the voltage regulator ( Variac ) which allows to act on the brush and achieve the desired voltage . The voltage can be smoothly varied between turns as the brush has a relatively high resistance ( compared with a metal contact ) and the actual output voltage is a function of the relative area of brush in contact with adjacent windings .

Technical parameters :

020Capacity......................................................7500VA
Output Current...........................................30A
Output.........................................................0~250VAC
Frequency..................................................50/60Hz
Input............................................................220VAC
Insulation Resistance..................................>5MΩ
No. of Phase..............................................Single-Phase
Winding Material........................................100% Copper
Max.Temperature........................................60℃
Insulation Class..........................................Class B(130℃)
IP/NEMA Rating..........................................IP20
Variable Operation.....................................Manually Operated Rotary Knob
Portable Carrying Grip................................Provided
Pollution Rating.........................................Class III
Analog Voltmeter Display............................Provided
Housing Material.......................................Shock-Proof Metal
Voltage Setting..........................................Manual Control
Standards.................................................VDE0550,IEC204-1,IEC61588,EC439
Sample Service..........................................Pay to Provide
Quality Assurance....................................18Months
Item Condition...........................................Brand-New

Item	Capacity	Input Voltage	Output Voltage	Output Current	Case Qty .
Model	( kVA )	( V )	( V )	( A )	( Pcs . )
TDGC2 - 0.2	0.2	220	0 ~ 250	0.8	12
TDGC2 - 0.5	0.5	220	0 ~ 250	2	6
TDGC2 - 1	1	220	0 ~ 250	4	4
TDGC2 - 2	2	220	0 ~ 250	8	4
TDGC2 - 3	3	220	0 ~ 250	12	2
TDGC2 - 5	5	220	0 ~ 250	20	1
TDGC2 - 7.5	7.5	220	0 ~ 250	30	1
TDGC2 - 10	10	220	0 ~ 250	40	1
TDGC2 - 15	15	220	0 ~ 250	60	1
