3 Phase Variac Voltage Regulator , Variac Variable Transformer / 60KVA 80A Output Voltage Regulator
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Output Voltage: | 0 ~ 430VAC | Input Voltage: | 380VAC |
|---|---|---|---|
| Analog Voltmeter Display: | Provided | Pollution Rating: | Class III |
| Portable Carrying Grip: | Provided | Item Condition: | Brand - New |
| High Light: | automatic voltage regulator,variable voltage output transformers |
||
3 Phase Variac Voltage Regulator , Variac Variable Transformer / 60KVA 80A Output Voltage Regulator
Product Description :
TDGC2/TSGC2 series voltage regulator has artistic appearance. Undistortde waveform, small volume,light weight,high efficiency ,easy to operate ,reliable movement and soon characteristics,the performance is more superior ,it can be widely used in the industry for example chemical ,metallurgy.instrument measuring appliance,mechanicaland electrical manufactory,light industry and so on ),scientific experiment , domestic electric appliances to realize voltage regulation temperature control .timing velocity modulation ,light changing and power control .it is one kind of ideal AC voltage regulation power source.
Application :

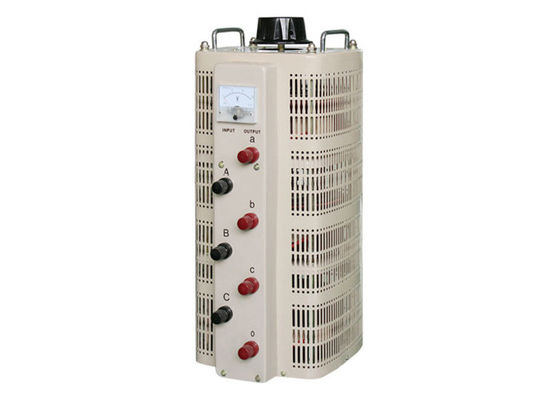

(TSGC2 Three Phase Voltage Regulator) This TSGC2 Three phase voltage regulator is for industry, light industry, household appliance, and lighting system.
Technical Data :
|
Type |
The Rated Power |
Phase |
Hz |
(V) |
(V) |
(A) |
|
TDGC2 - 0.2 |
0.2 |
Single |
50 |
220 |
0 - 250 |
0.8 |
|
TDGC2 - 0.5 |
0.5 |
2 |
||||
|
TDGC2 - 1 |
1 |
4 |
||||
|
TDGC2 - 2 |
2 |
8 |
||||
|
TDGC2 - 3 |
3 |
12 |
||||
|
TDGC2 - 5 |
5 |
20 |
||||
|
TDGC2 - 7 |
7 |
28 |
||||
|
TDGC2 - 10 |
10 |
40 |
||||
|
TDGC2 - 15 |
15 |
60 |
||||
|
TDGC2 - 20 |
20 |
80 |
||||
|
TDGC2 - 30 |
30 |
120 |
||||
|
TSGC2 - 3 |
3 |
Three |
50 |
380 |
0 - 430 |
4 |
|
TSGC2 - 6 |
6 |
8 |
||||
|
TSGC2 - 9 |
9 |
12 |
||||
|
TSGC2 - 15 |
15 |
20 |
||||
|
TSGC2 - 20 |
20 |
27 |
||||
|
TSGC2 - 30 |
30 |
40 |
