Product Details:
Payment & Shipping Terms:
|
Usage: | AVR | Type: | Relay |
---|---|---|---|
Warranty: | 12 Months | Display: | Digital Display |
Output Voltage: | AC 220V/110V+-8% | Frequency: | 50/60 Hz |
High Light: | variable voltage transformer,variable voltage output transformers |

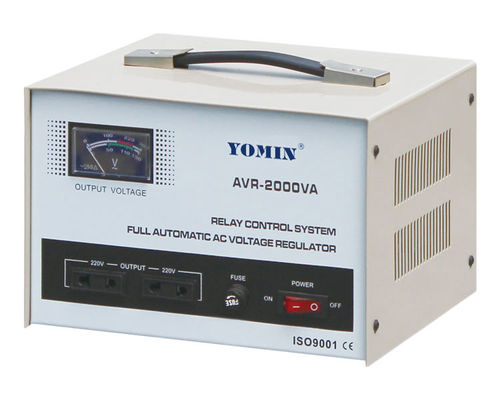

Current Type 220V Home Pro Series Single Phase AC 5000VA AVR Automatic Voltage Stabilizer
Description :

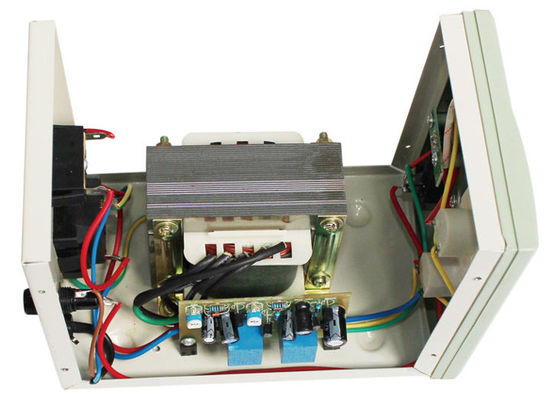

Electronic voltage stabilizers are also called Relay type voltage stabilizers . It is composed of automatic voltage regulator and PC board . This product have the advantage of small volume , light weight , little distortion of the output wave form and quick reaction etc . It demands minimum power and can be used for a long time continuously , so it is the idealist AC stab-ilizer for the modern families .
AVR Automatic AC home voltage stabilizer is composed of automatic coupling regulator , sampling control board , executing mechanism.It has the characteristics of in volume , light weight , little in distortion output wave from , quick in react etc , it is especially suitable for household air conditiner , refrige rate , TV setand music center . It also can leng their use span , and so is the ideal-ist AC , stabilizer for modern families .
The product needs minimum power consumption and can be used continuously .
Specification :
Model:AVR-500VA/1000VA/1500VA2000VA/3000VA/5000VA |
|
Input voltage |
AC 160V~250V |
Input frequency |
50/60HZ |
Output voltage |
220V AC / 110AC |
Output precision |
220V + - 8% , 110V + - 8% |
Time delay |
5 ’ S short time ,180 ’ s long time |
Efficiency : |
>90% |
Load power factor |
0.8 |
Phase |
Single phase |
Operating temperature |
- 10℃ ~ + 40℃ |
Storage temperature |
-15℃ ~ + 45℃ |
Operating relative humidity |
10% RH - 102% RH |
Customize option for specification and availability please contact with me |
The Future of Yomin R&D Team :
The most important force behind the success of Yomin is our constant technical innovation and R & D . Since establish-ment of the R&D team for Control & Measurement in 2009 , we have focused all of our efforts on the development of our own technology and techniques . After establishing an additional R & D center for energy meter in 2010 , we were able to accelerate net - system R & D activities . We always believe that technology and quality of product are essential for cus-tomer satisfaction , and thus , we allocate approximately 20% of our human resources to R & D and re - invest over 10% of our total revenue into R & D of new technology and products .
Manufacturing :
Yomin has been growing for the past 6 years through our [Global Management] policy , and our ultimate goal is customer ' s complete satisfaction of the quality and service . At the same time , Yomin has continuously invested in the development of ultra - precise and high - quality control equipment and has introduced advanced and unique quality control systems . As a result , we have obtained global standard certifications such as ISO9001 , CE , RoHS , etc . , and now we export qualified products to over 100 countries around the world . In 2007, Yomin established our newest manufacturing facility in China , providing more cost - effective products to the international market and laying the groundwork for broader global distribution of our products .
