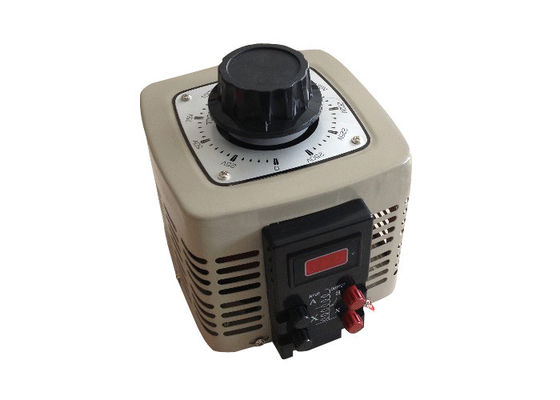

AC 200VA 0.8A Adjustable Voltage Transformer , 0 - 250V Digital Voltage Regulator / Variac

Name: AC 200VA 0.8A Adjustable Voltage Transformer , 0 - 250V Digital Voltage Regulator / Variac
Brand: YOMIN
SKU: TDGC2-0.2
Rating: 4.5 (111 reviews)

AC 200VA 0.8A Adjustable Voltage Transformer , 0 - 250V Digital Voltage Regulator / Variac supplier

Large Image : AC 200VA 0.8A Adjustable Voltage Transformer , 0 - 250V Digital Voltage Regulator / Variac

Product Details:

Place of Origin:	Zhejiang, China (Mainland)
Brand Name:	YOMIN
Certification:	CE/RoHS
Model Number:	TDGC2-0.2

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiation
Packaging Details:	Export carton , 4 Pieces / Carton
Delivery Time:	5 - 20 working days after received your payment
Payment Terms:	L/C , T/T , Western Union , Paypal
Supply Ability:	1000 Pieces Per Week

Contact Now

Detailed Product Description

Input Voltage:	220VAC	Output Voltage:	0~250VAC
Insulation Resistance:	>5MΩ	Efficiency:	>80%
Capacity:	200VA	Current Type:	AC
High Light:	automatic voltage regulator , variable voltage transformer

AC 200VA 0.8A Adjustable Voltage Transformer 0-250V Digital Voltage Regulator Voltage Variac

Product Description :

The Voltage regulators (Variac) are used to adjust the voltage from 0 volts up to the maximum voltage for which they have been designed and among the most usuall applications. No additional wave from distortion. The main applications are:

Laboratory control equipment.
Lighting equipment.
Temperature controls.
Motor speed control.
Controlling of other transformers.
Etc.

Manually Operated Rotary Knob to control output voltage, by means of a control button on the shaft of the voltage regulator (Variac) which allows to act on the brush and achieve the desired voltage. The voltage can be smoothly varied between turns as the brush has a relatively high resistance (compared with a metal contact) and the actual output voltage is a function of the relative area of brush in contact with adjacent windings.

Technical parameters :

Capacity.....................................................200VA
Output Current...........................................0.8A
Output.........................................................0~250V AC
Frequency..................................................50/60Hz
Input............................................................220V AC
Insulation Resistance..................................>5MΩ
No. of Phase...............................................Single-Phase
Winding Material........................................100% Copper
Max.Temperature.......................................60℃
Insulation Class..........................................Class B (130℃)
IP/NEMA Rating..........................................IP20
Variable Operation....................................Manually Operated Rotary Knob
Portable Carrying Grip...............................Provided
Pollution Rating.........................................Class III
Analog Voltmeter Display...........................Provided
Housing Material.......................................Shock-Proof Metal
Voltage Setting.........................................Manual Control
Standards.................................................VDE0550,IEC204-1,IEC61588,EC439
Sample Service.........................................Pay to Provide
Quality Assurance....................................18Months
Item Condition...........................................Brand-New

Item	Capacity	InputVoltage	OutputVoltage	OutputCurrent	CaseQty.
Model	(kVA)	(V)	(V)	(A)	(Pcs.)
TDGC2-0.2	0.2	220	0~250	0.8	12
TDGC2-0.5	0.5	220	0~250	2	6
TDGC2-1	1	220	0~250	4	4
TDGC2-2	2	220	0~250	8	4
TDGC2-3	3	220	0~250	12	2
TDGC2-5	5	220	0~250	20	1
TDGC2-7.5	7.5	220	0~250	30	1
TDGC2-10	10	220	0~250	40	1
TDGC2-15	15	220	0~250	60	1

What we do :

Established in 2002 , Yomin is a professional manufacturer and exporter specialized in the research , development and production of low voltage electrical products. Most products are used for switchgear, such as MCB, MCCB, RCD, Current Transformer, Analogue Meter, Digital Meter, Kilo-watt hour Meter (Digital type and Mechanical type), AC Contactor, Fuse series, Relay, and other accessories.

Located in Yueqing City Zhejiang province, we are quite close to Shanghai and Ningbo port. Covering an area of 12000 square meters for manufacturing and administration, we now have over 370 employees making their great efforts for Yomin. Having been working hard for more than 10 years, Yomin has gradually become a medium scale productive corporation with over 9 different product lines and export to over 60 countries and regions, especially for Kilo-watt hour meter and MCB .
