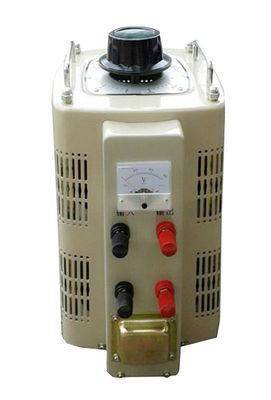

220V To 0-250V Contact Voltage Regulator , TDGC2-1KVA 1000W Regulator
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Phase: | Single Phase | Product Name: | TDGC2 Voltage Regulator |
|---|---|---|---|
| Customized: | Yes | Sample Service: | Pay To Provide |
| Voltage Setting: | Manual Control | Input: | 220V AC |
| Warantty: | 5 Years | ||
| High Light: | variable voltage transformer,variable voltage output transformers |
||
2KVA Voltage Regulator Household Single Phase TDGC2 Variac 0-250V Output Voltage
The Product Details:
TDGC2-1KVA 1000W regulator, inupt voltage 220V output voltage range 0-250V (can be customized)
TDGC2 (TSGC2) contact voltage regulator with waveform distortion, small size, light weight, high efficiency and easy to use, reliable, long-term operation and other characteristics, can be widely used in industry (eg chemical, metallurgy, instrumentation, electrical and mechanical manufacturing, light workers, etc.), scientific experiments, household appliances, control speed, dimming and power control purposes, the three an ideal AC voltage power supply.
Regulator Model Specification
| Phase | Model | Power (kVA) |
Rated APMS(A) | Dimensions (L×W×T)(mm) |
Weight (kg) |
| Single phase voltage regulator | TDGC2 | 0.2 | 1 | 120×110×120 | 3 |
| 0.5 | 2 | 140×130×130 | 4 | ||
| 1 | 4 | 200×180×180 | 6.5 | ||
| 2 | 8 | 160x155x145 | 9 | ||
| 3 | 12 | 220×180×200 | 11 | ||
| 5 | 20 | 310×240×240 | 16 | ||
| 10 | 40 | 310×240×410 | 36 | ||
| 15 | 60 | 310×240×560 | 48 | ||
| 20 | 80 | 310×240×770 | 56 | ||
| 30 | 120 | 310×240×1500 | 105 | ||
| Three phase voltage regulator | TSGC2 | 0.6 | 1.5 | 150×120×330 | 17 |
| 1.5 | 3 | 170×130×340 | 20 | ||
| 3 | 4 | 270×170×420 | 20 | ||
| 6 | 8 | 260×210×460 | 28 | ||
| 9 | 12 | 280×210×480 | 35 | ||
| 15 | 20 | 320×240×570 | 48 | ||
| 20 | 27 | 330×340×1100 | 105 | ||
| 30 | 40 | 330×340×1100 | 150 | ||
| 45 | 60 | 350×430×1500 | 170 | ||
| 60 | 80 | 450×470×1500 | 200 |
Consult us for more models you need
| Principle & Characteristics | |
| The voltage regulator is in the structure of adjustable compensator, it wind a coil on the loop core,thee brush coincide with the rubbed surface of the coil closely under the spring pressure effect,rotate the revolving shaft to drive the brush stand, and make the brush move along the coil surf ace to change the contact position of the brush, that means change the turns rate of primary and secondary coil, which can make the output voltage stepless adjusted within the adjustment range. It has the advantage of no waveform distortion, small volume, less weight, high efficiency, simple and reliable operation, un for long period and so on. |
|
| Scope of Application |
| It is widely used in industry (as chemical industry, metallurgy, instruments, meters, electromechanical manufacturing, light industry etc.), scientific experiment, public facilities and domestic electric appliance to fulfill voltage regulating, temperature control, speed regulating, light adjusting, power control and so on, it is an ideal AC regulated power source. |
Product Description
The Voltage regulators (Variac) are used to adjust the voltage from 0 volts up to
the maximum voltage for which they have been designed and among the most
usuall applications. No additional wave from distortion. The main applications are:
- Laboratory control equipment.
- Lighting equipment.
- Temperature controls.
- Motor speed control.
- Controlling of other transformers.
- Etc.
Manually Operated Rotary Knob to control output voltage, by means
of a control button on the shaft of the voltage regulator (Variac)
which allows to act on the brush and achieve the desired voltage.
The voltage can be smoothly varied between turns as the brush has
a relatively high resistance (compared with a metal contact) and the
actual output voltage is a function of the relative area of brush in
contact with adjacent windings.
Specifications:
| Item | Capacity |
Input Voltage |
Output Voltage |
Output Current |
Case Qty. |
| Model | (kVA) | (V) | (V) | (A) | (Pcs.) |
| TDGC2-0.2 | 0.2 | 220 | 0~250 | 0.8 | 12 |
| TDGC2-0.5 | 0.5 | 220 | 0~250 | 2 | 6 |
| TDGC2-1 | 1 | 220 | 0~250 | 4 | 4 |
| TDGC2-2 | 2 | 220 | 0~250 | 8 | 4 |
| TDGC2-3 | 3 | 220 | 0~250 | 12 | 2 |
| TDGC2-5 | 5 | 220 | 0~250 | 20 | 1 |
| TDGC2-7.5 | 7.5 | 220 | 0~250 | 30 | 1 |
| TDGC2-10 | 10 | 220 | 0~250 | 40 | 1 |
| TDGC2-15 | 15 | 220 | 0~250 | 60 | 1 |
Packaging Details
- Unit Type: piece
- Package Weight: 7.0kg (15.43lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)

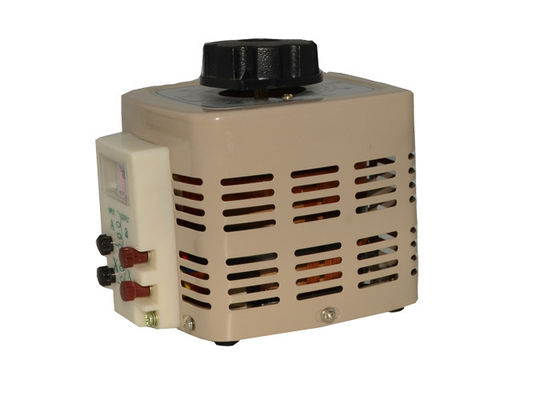

Product Pictures
Why choose us
1. Experienced manufacturer more than 10 years.
2. Highly experienced production team in YOMIN factory work-shop.
3. QC Systerm: Quality controlled on all production lines, and QC inspectors work independently from the production line.
4. Good quality production with quick delivery.
5. Accepted OEM/ODM.
6. Accepted small MOQ.
7. Trade Assurance on Alibaba.
8. Factory certification: CE, RoHS and ISO9001 .
