TDGC2 AC Power Variable Transformer With Isolation , 1000VA Max 0 -130 Volt Output

Name: TDGC2 AC Power Variable Transformer With Isolation , 1000VA Max 0 -130 Volt Output
Brand: YOMIN
SKU: TDGC2
Rating: 4.5 (146 reviews)

TDGC2 AC Power Variable Transformer With Isolation , 1000VA Max 0 -130 Volt Output supplier

Large Image : TDGC2 AC Power Variable Transformer With Isolation , 1000VA Max 0 -130 Volt Output

Product Details:

Place of Origin:	ZHEJIANG PROVINCE, CHINA
Brand Name:	YOMIN
Certification:	CE,ROHS
Model Number:	TDGC2

Payment & Shipping Terms:

Minimum Order Quantity:	it can be negotiated
Price:	it can be negotiated
Packaging Details:	Export carton or wooden case
Delivery Time:	2-5 days, depends on the quantity
Payment Terms:	L/C, D/A, D/P, , T/T, Western Union, MoneyGram
Supply Ability:	2000pcs per month

Contact Now

Detailed Product Description

Display:	Analog	Product Name:	TDGC2 Voltage Regulator
Customized:	Yes	Current Type:	AC
Voltage Setting:	Manual Control	Item Condition:	Brand-New
Weight:	20KG	Model Number:	TDGC2
High Light:	automatic voltage regulator , variable voltage transformer

Power Variable Transformer with Isolation , 1000VA Max , 0 -130 Volt Output

Product Description

Variac is a variable transformer and a great device for quality control testing, equipment testing on low and high voltage, control over heat, speed, and more. However in order to purchase the right variac, it is critical that you know the amp usage by your electronic device. It is always best to be conservative otherwise you risk destroying the variac and it can be very dangerous. For example, if your device requires 5 amp, buy the variac with up to 10 amp. A rating of 300VA means that at 100volt, the unit can sustain at maximum 3amp. If at 120 volt the unit can sustain at 2.5ampNote - Indoor use only. Do not operate in a condition that may cause electrocution and fire. Do not operate in a wet environment. Do not operate near flammable substance.

Specifications:

Item	Capacity	Input Voltage	Output Voltage	Output Current	Case Qty.
Model	(kVA)	(V)	(V)	(A)	(Pcs.)
TDGC2-0.2	0.2	220	0~250	0.8	12
TDGC2-0.5	0.5	220	0~250	2	6
TDGC2-1	1	220	0~250	4	4
TDGC2-2	2	220	0~250	8	4
TDGC2-3	3	220	0~250	12	2
TDGC2-5	5	220	0~250	20	1
TDGC2-7.5	7.5	220	0~250	30	1
TDGC2-10	10	220	0~250	40	1
TDGC2-15	15	220	0~250	60	1

Product features

Input: 120 volt AC, Output: 0~130 volt AC, 3 Amp Slow Blow Fuse
Max VA: 300VA, 3 Amp. Max (surge)
A rating of 300VA means that at 100volt, the unit can sustain at maximum 3amp. If at 120 volt the unit can sustain at 2.5amp
Note that most device have surge (when first turn on) much higher than operating amp rating
E.g., motor with 3 amp rating may have over 5 amp surge, and you will need 5 amp variac

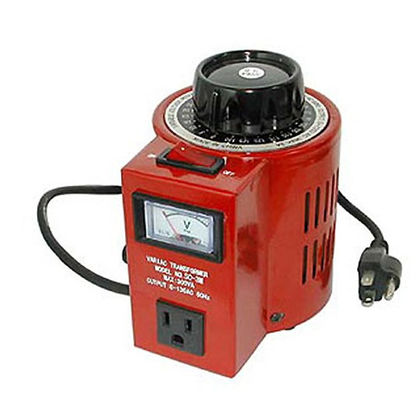

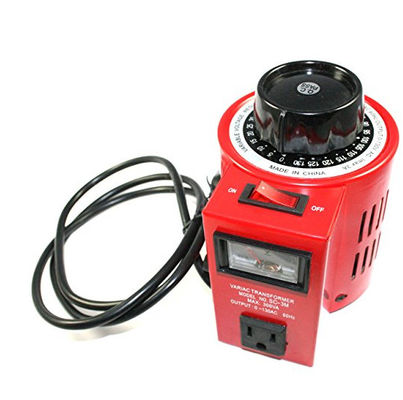

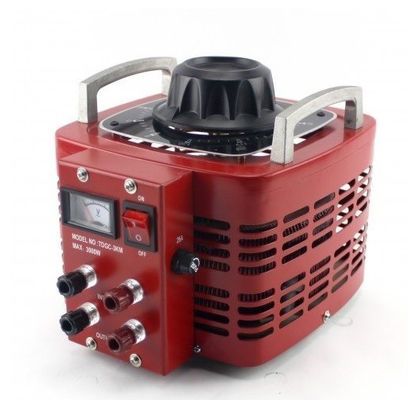

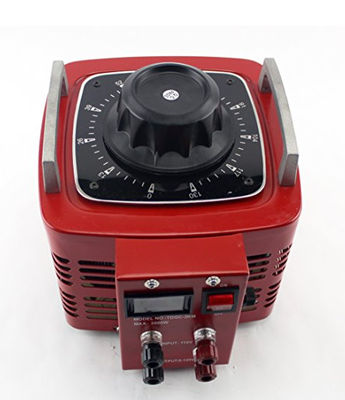

Product Picture:

Packaging Details

Unit Type: piece
Package Weight: 7.0kg (15.43lb.)
Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)

Question & Answer

1. Question: If I'm trying to control the speed of a motor rated at 2amps do you think the 5A Variac will be over rated enough for the starting current?

Answer: It depends on starting load. That should be listed on the motor plate. If you are trtinf to make a variable speed ac motor try using a solid state current speed control rather than something made for voltage on the field winding

Question:

2. Question: Is is isolated or non-isolated ?

Answer: This and most variacs are not isolated.
